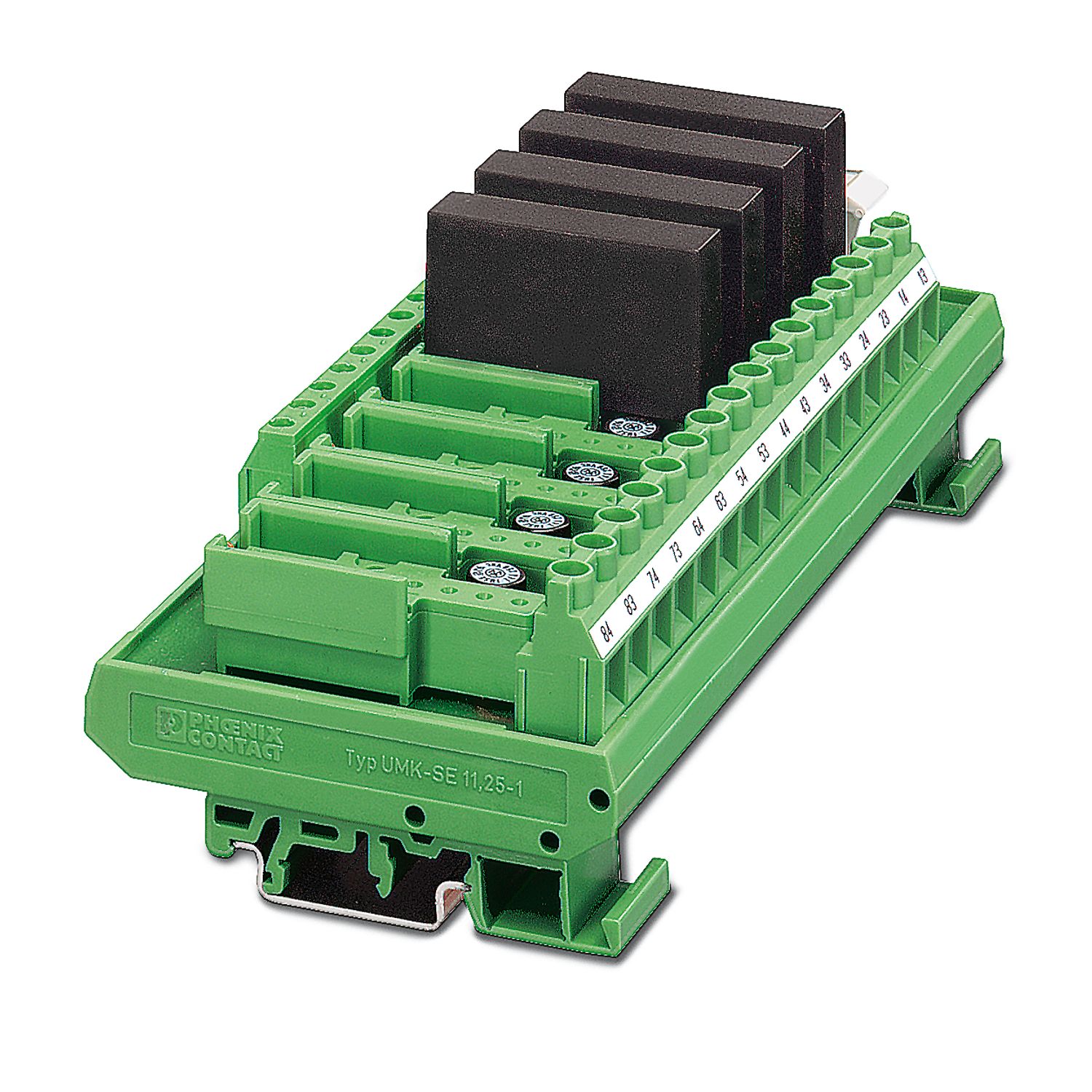

UMK- 8 OM/PF/MKDS
-
Optocoupler module
2972725

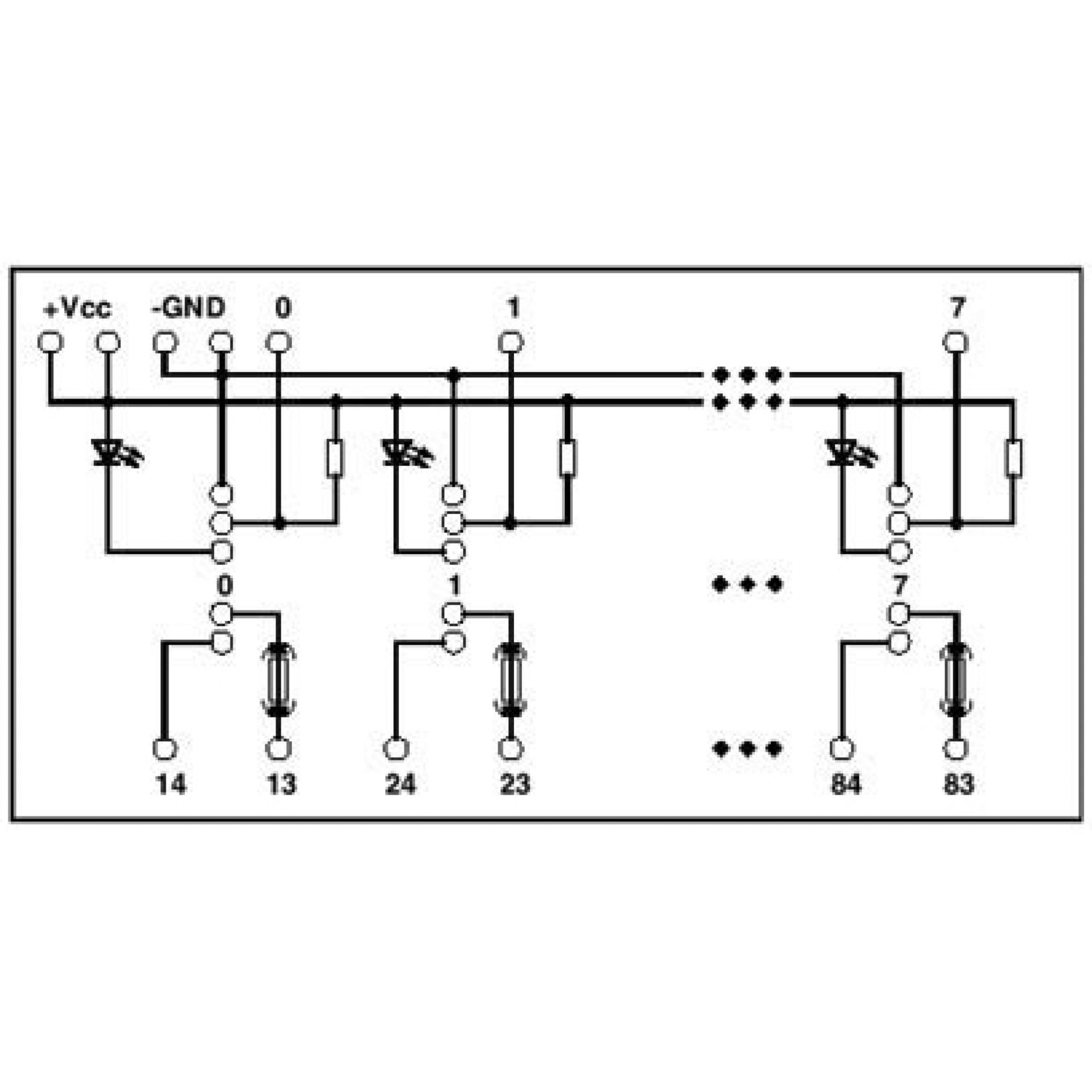

Interface module, with plug-in socket for 8 digital I/O modules, with screw connection, with light indicator and fuse, control logic: minus switching
Product details
| Product type | Solid-state relay module |
| No. of channels | 8 |
| Compatible components | Digital I/O modules |
| With components | no |
| Input voltage range | 4 V ... 32 V |
| Compatible components | Digital I/O modules |
| Switching | |
| Limiting continuous current | 4 A (Optocoupler dependent) |
| Error detection (line break / short-circuit) | no |
| Input | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of connections | 2 |
| Number of positions | 12 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Output | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of connections | 16 |
| Number of positions | 3 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
| Status display present | yes |
| Dimensional drawing |
|
| Width | 180 mm |
| Height | 77 mm |
| Depth | 72 mm |
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 55 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
| DIN VDE 0160 (in relevant parts) |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
