VS-PP-19-1HE-16-F
-
Marshalling panel
1652994
Patch panel, 19" assembly, IP20, with 16 slots for contact inserts with the Freenet system
Product details
| Product type | Patch panel |
| Application | Einbauplätze für Kontakteinsätze mit Freenet-System |
| No. of cable outlets | 16 |
| Number of module slots | 16 |
| Number of slots | 16 |
| Transmission medium | FO |
| Connection method | Screw connection |

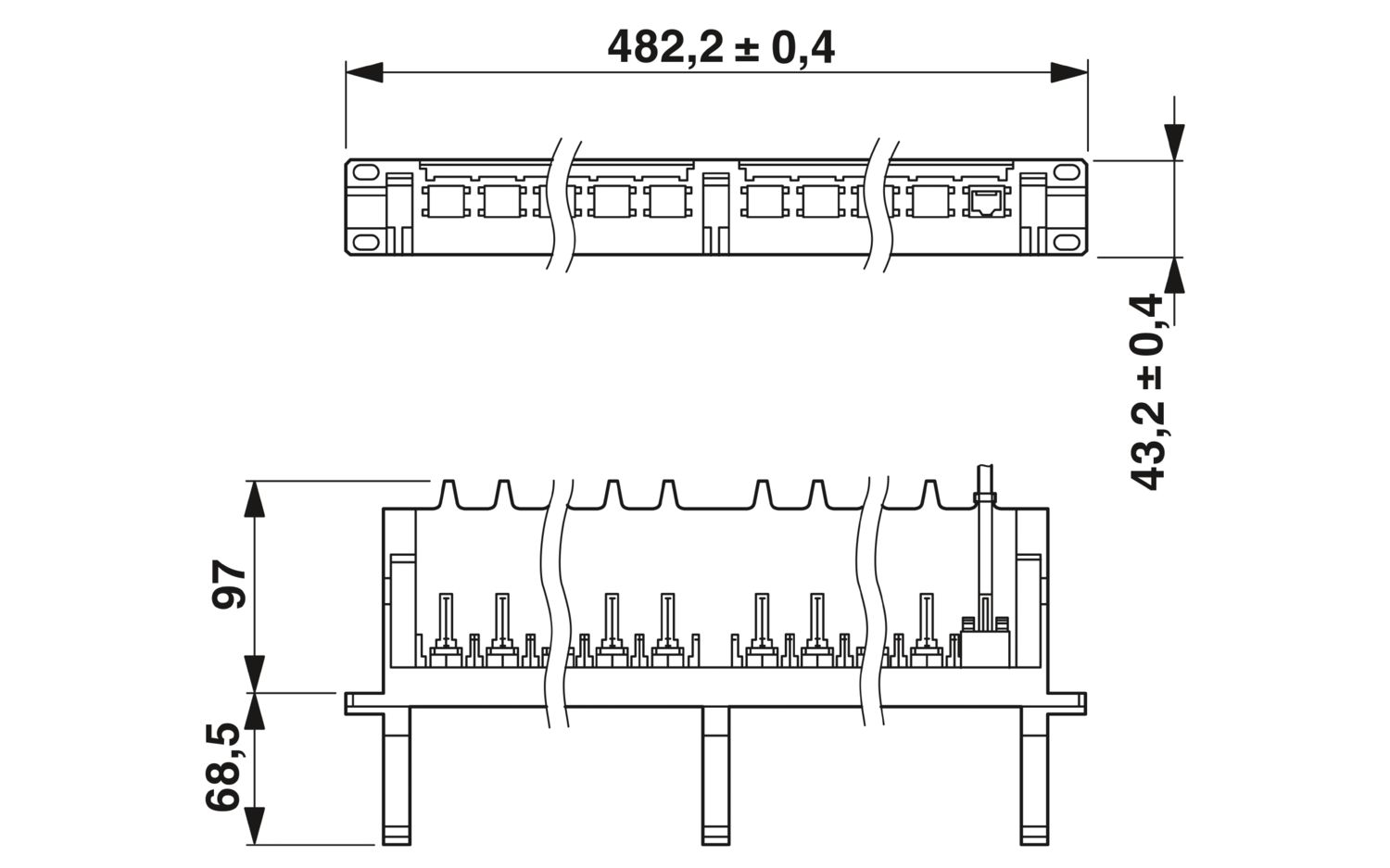

| Dimensional drawing |
|
| Width | 482.2 mm |
| Height | 43.2 mm |
| Drill hole distance, horizontal | 31.6 mm |
| Color | light grey RAL 7035 |
| Material | Plastic |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC-GF |
| Ambient conditions | |
| Degree of protection | IP20 |
| IP20 | |
| Ambient temperature (operation) | 5 °C ... 55 °C |
| Mounting type | 19" rack |
Your advantages
16 installation slots per rack unit (RU)
Grounding concept prepared
Can be optionally equipped with copper and FO inserts
For easy cable management
