NLC-IO-4AI
-
I/O extension module
2701098
I/O extension module for use with Nanoline base unit. Equipped with 4 analog input channels. A maximum of three I/O extension modules can be attached to a base unit.
Product details
| Product type | Extension module |
| Supply: Module electronics | |
| Supply voltage | 24 V DC |
| Supply current | nom. 50 µA |
| max. 90 µA | |
| Analog: | |
| Input name | Analog inputs |
| Description of the input | Single ended |

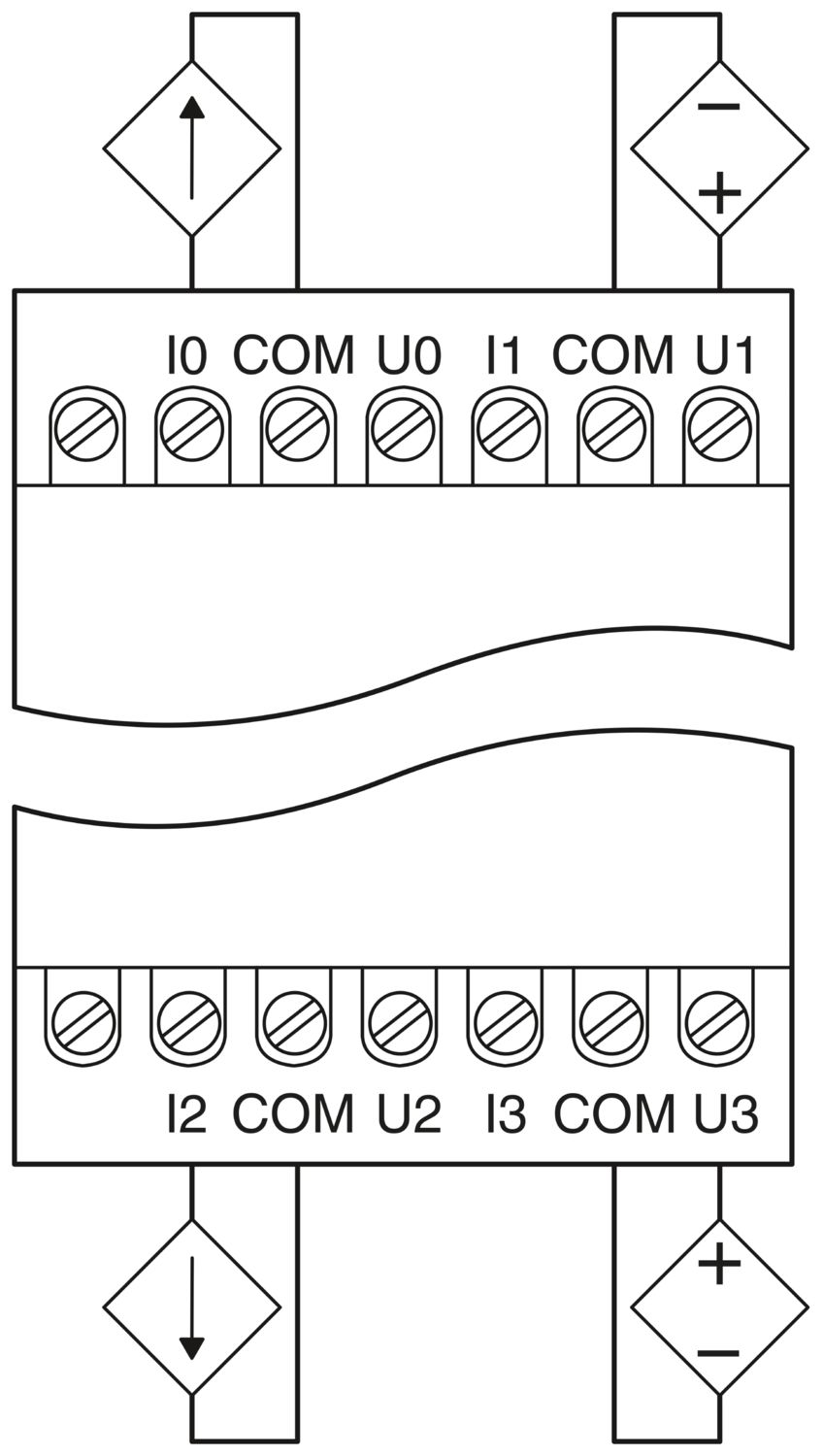

| Number of inputs | 4 (Voltage or current can be chosen separately) |
| A/D converter resolution | 12 bit |
| Connection method | Individual wires |
| Connection technology | Screw connection |
| Current input signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Input resistance current input | 120 Ω |
| Voltage input signal | 0 V ... 10 V |
| -10 V ... 10 V | |
| Input resistance of voltage input | 200 kΩ |
| Limit frequency (3 dB) | 5 Hz |
| Connection method | Screw connection |
| Dimensional drawing |
|
| Width | 40 mm |
| Height | 103.5 mm |
| Depth | 43 mm |
| Color | white |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP20 |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 0 % ... 90 % (at 25 °C) |
Your advantages
Automatically recognized by the firmware
I/O modules are electrically isolated
Can be powered from a secondary power supply
A system may have up to 8 analog inputs and 8 analog outputs
Configuration options for 0 - 10 V DC, ±10 V DC, 4 - 20 mA, and 0 - 20 mA
Up to 3 modules can be added to the right side of a base unit
