ME-IO 18,8 DEV-KIT KMGY
-
Housing set
2202527

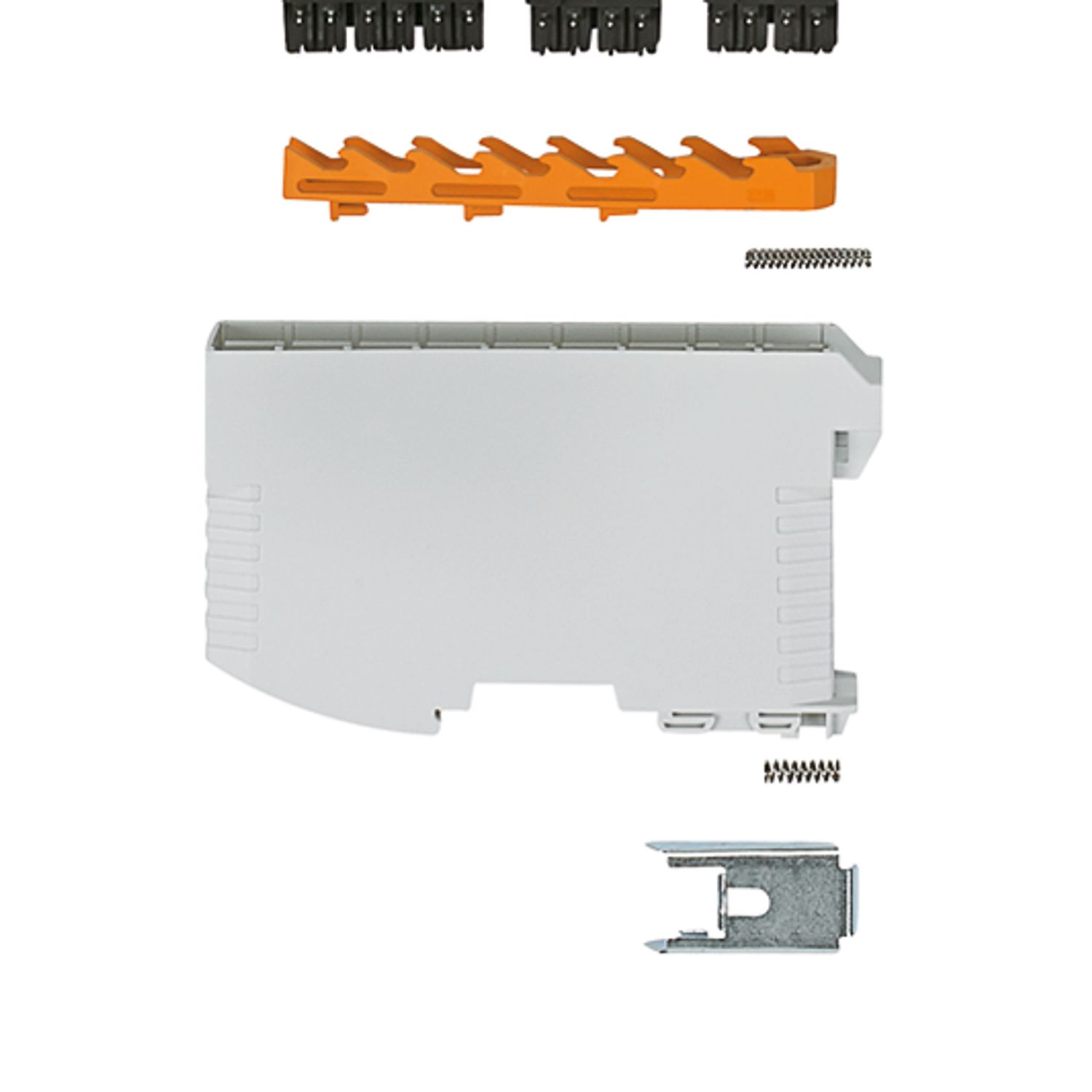

DEV-KIT ME-IO: contains 1 x ME-IO 18,8 housing and pluggable connection technology (HSCH with HSCP), supplied in individual parts
Product details
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
| Product type | Stackable housing set |
| Housing type | DIN rail housing |
| Housing series | ME-IO |
| Max. number of positions | 28 (pitch: 5 mm) |
| Type | Lower housing part, with metal foot catch, with functional ground contact, with 7U Lock and Release system |
| Ventilation openings present | yes |
| Dimensional drawing |
|
| Width | 18.9 mm |
| Height | 113.3 mm |
| Depth | 76.5 mm |
| Depth from top edge of DIN rail | 70 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
| Number of PCB holders | 1 |
| Type of PCB mount | Latching |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | DIN rail mounting |
Your advantages
Easy, tool-free mounting
Optional DIN rail connector for easy module-to-module communication
Lock and Release principle for automatic latching and intuitive release of the front connection plug
Plastic in accordance with UL94 V0: for more rigorous flammability requirements
Plug-in front connection technology
