UK 10,3-HESILED N 72 - Fuse modular terminal block

3048661

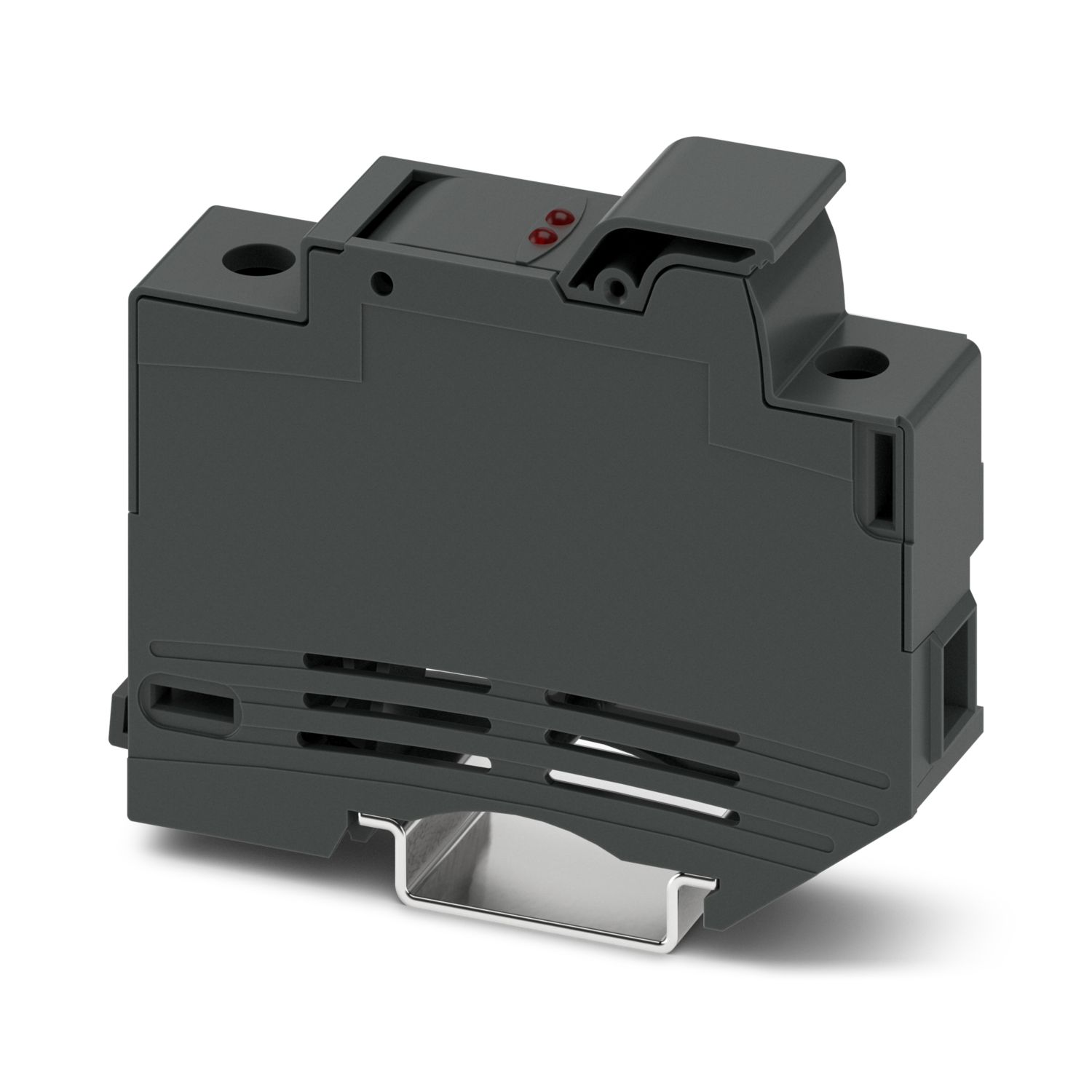

Fuse modular terminal block, fuse type: Ceramic, fuse type: 10.3 x 38 mm, nom. voltage: 72 V, nominal current: 32 A, number of positions: 1, connection method: Screw connection, Rated cross section: 16 mm², cross section: 1 mm²- 16 mm², mounting type: NS 35/7,5, NS 35/15, color: black

Product type	Fuse terminal block
Number of positions	1
Number of connections	2
Number of rows	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Fuse type	Ceramic
Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	3 W
Fuse	10.3 x 38 mm
LED voltage range	20 V AC ... 72 V AC (The voltage is determined by the fuse or selected LED display)

LED voltage range	20 V AC ... 72 V AC (The voltage is determined by the fuse or selected LED display)

Number of connections per level	2
Nominal cross section	16 mm²
Screw thread	M5
Tightening torque	2 Nm
Stripping length	15 mm
Internal cylindrical gage	B6
	A7
Connection in acc. with standard	IEC 60947-1 / -3
Conductor cross section rigid	1 mm² ... 16 mm²
Cross section AWG	18 ... 6 (converted acc. to IEC)
Conductor cross section flexible	1 mm² ... 16 mm²
Conductor cross section, flexible [AWG]	18 ... 6 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	1.5 mm² ... 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	1.5 mm² ... 10 mm²
2 conductors with same cross section, solid	1 mm² ... 6 mm²
2 conductors with same cross section, flexible	1 mm² ... 6 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	1.5 mm² ... 4 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	1.5 mm² ... 4 mm²
Nominal current	32 A (the current and voltage are determined by the fuse)
Maximum load current	32 A (the current and voltage are determined by the fuse)
Nominal voltage	72 V (the current and voltage are determined by the fuse)
Nominal cross section	16 mm²

Width	17.5 mm
Height	79.3 mm
Depth on NS 35/7,5	64 mm
Depth on NS 35/15	71.5 mm

Color	black (RAL 9005)
Flammability rating according to UL 94	V2
Insulating material group	III
Insulating material	PA
Relative insulation material temperature index (Elec., UL 746 B)	125 °C

Mechanical data
Open side panel	No

Ambient conditions
Ambient temperature (operation)	-50 °C ... 85 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-1 / -3

Mounting type	NS 35/7,5
	NS 35/15

Item number	3048661
Packing unit	12 pc
Minimum order quantity	12 pc
Sales key	A1 - Terminal Strips
Product key	BE1234
GTIN	4046356138642
Weight per piece (including packing)	46,75 g
Weight per piece (excluding packing)	52,68 g
Customs tariff number	85369095
Country of origin	FR

Compatible products

Accessories

Your advantages

For 10 x 38 fuse-links in accordance with IEC 60269-2

Fuse holder for 20 V DC ... 72 V DC fuses

Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator

Easy to bridge

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
