HC-CIF-B10-BFFD-FH-AL
-
DIN rail mounting frame
1404219
HEAVYCON DIN rail mounting frame, lower part for double locking latch, for sleeve housing with double locking latch or HC-CIF-..HFFD.., for type B10 contact inserts, for NS35/7,5 DIN rails
Product details
| Product type | DIN rail mounting frame |
| Housing type | DIN rail mounting frame |
| Series | HC-CIF-AL |
| Type | B10 |
| Protective cover | no |
| Pg screw connection | none |

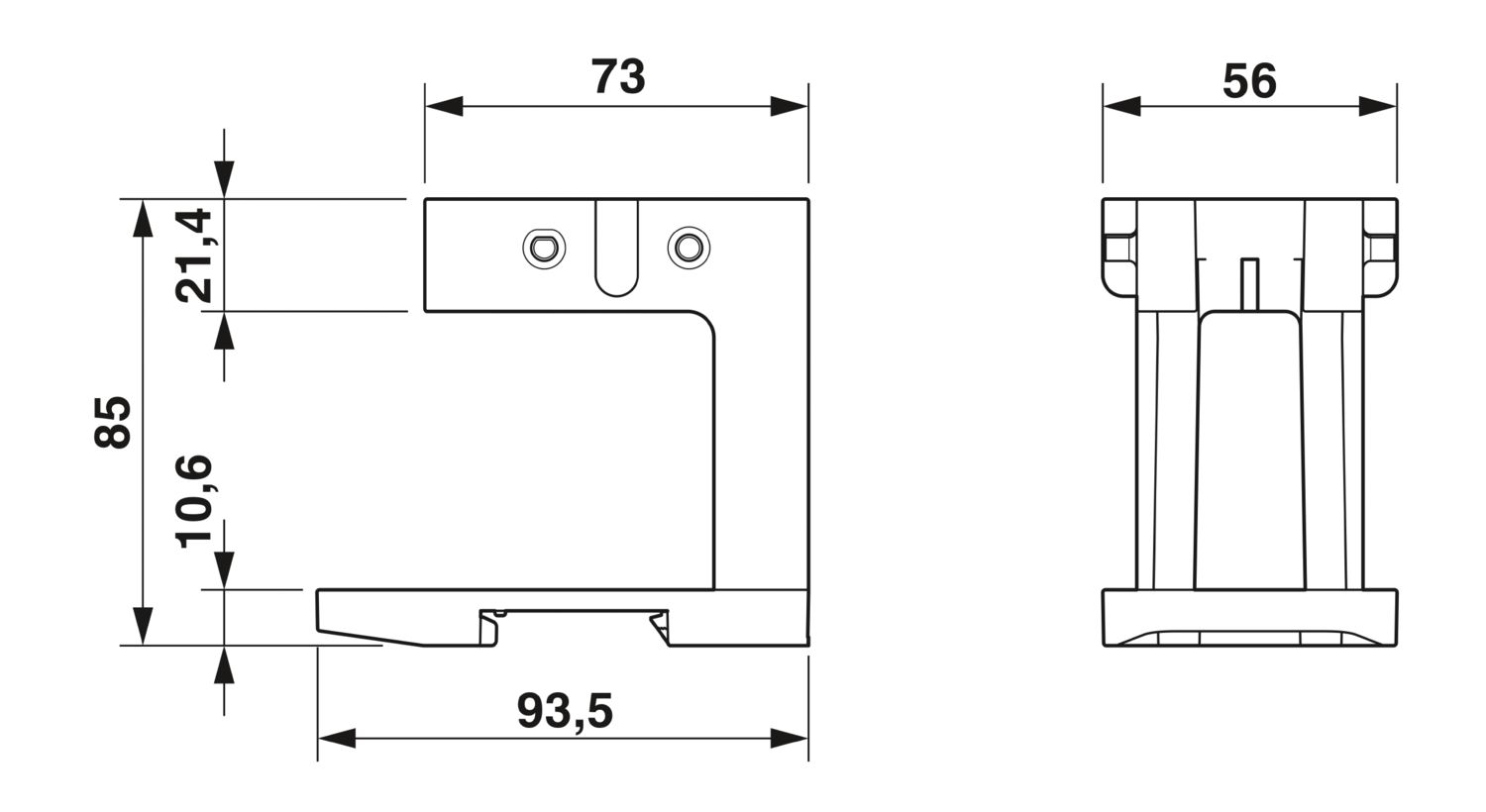

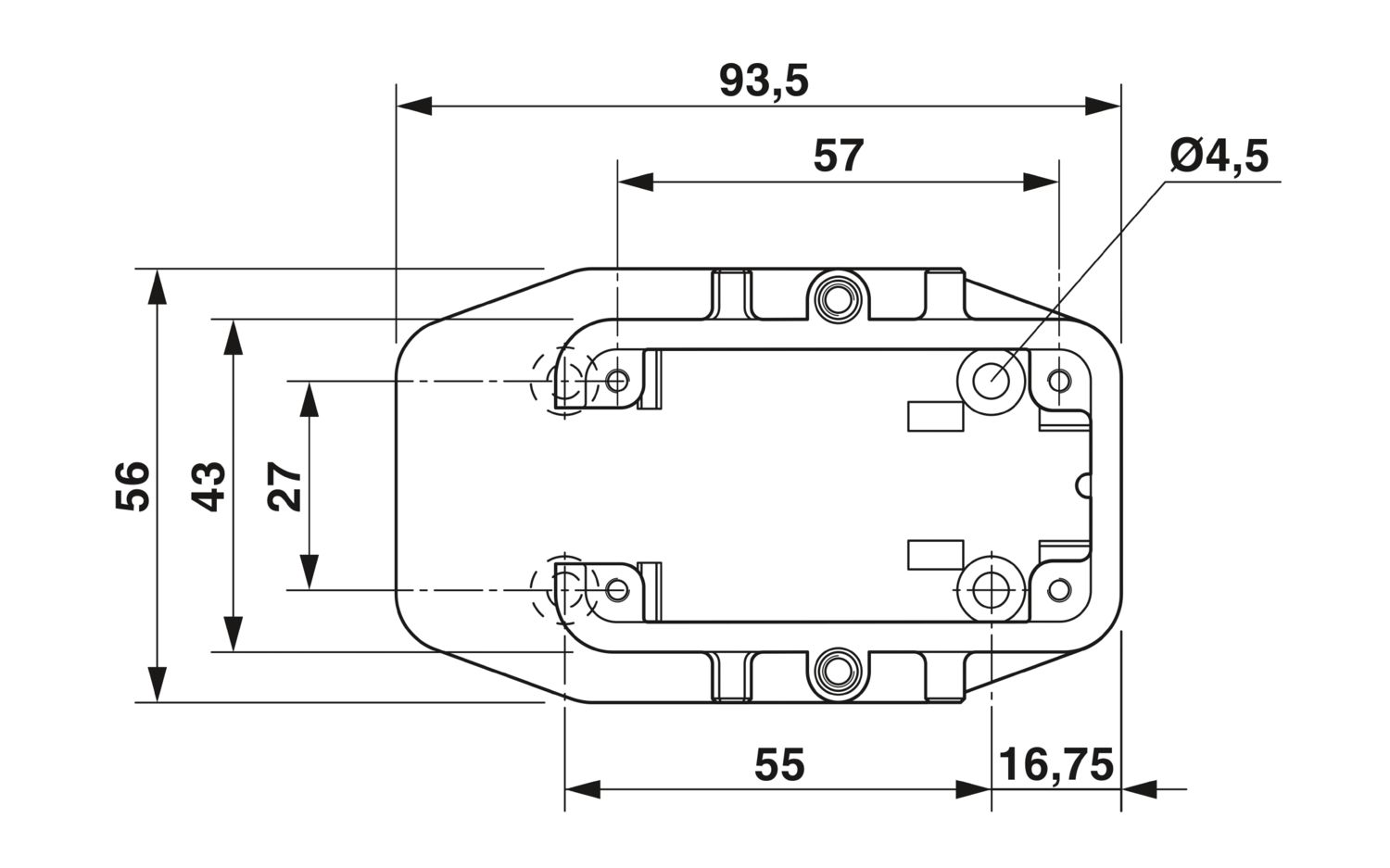

| Dimensional drawing |
|
| Width | 56 mm |
| Height | 85 mm |
| Length | 93.5 mm |
| Material | Cast aluminum, uncoated |
| Housing material | Cast aluminum, uncoated |
| Mechanical data | |
| Locking type | Nut |
| Pin | |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail: 35 mm |
Your advantages
Stable metal version
Open base, pre-assembled cable harnesses can be used
Safe capacitive PE even when connected slightly askew
