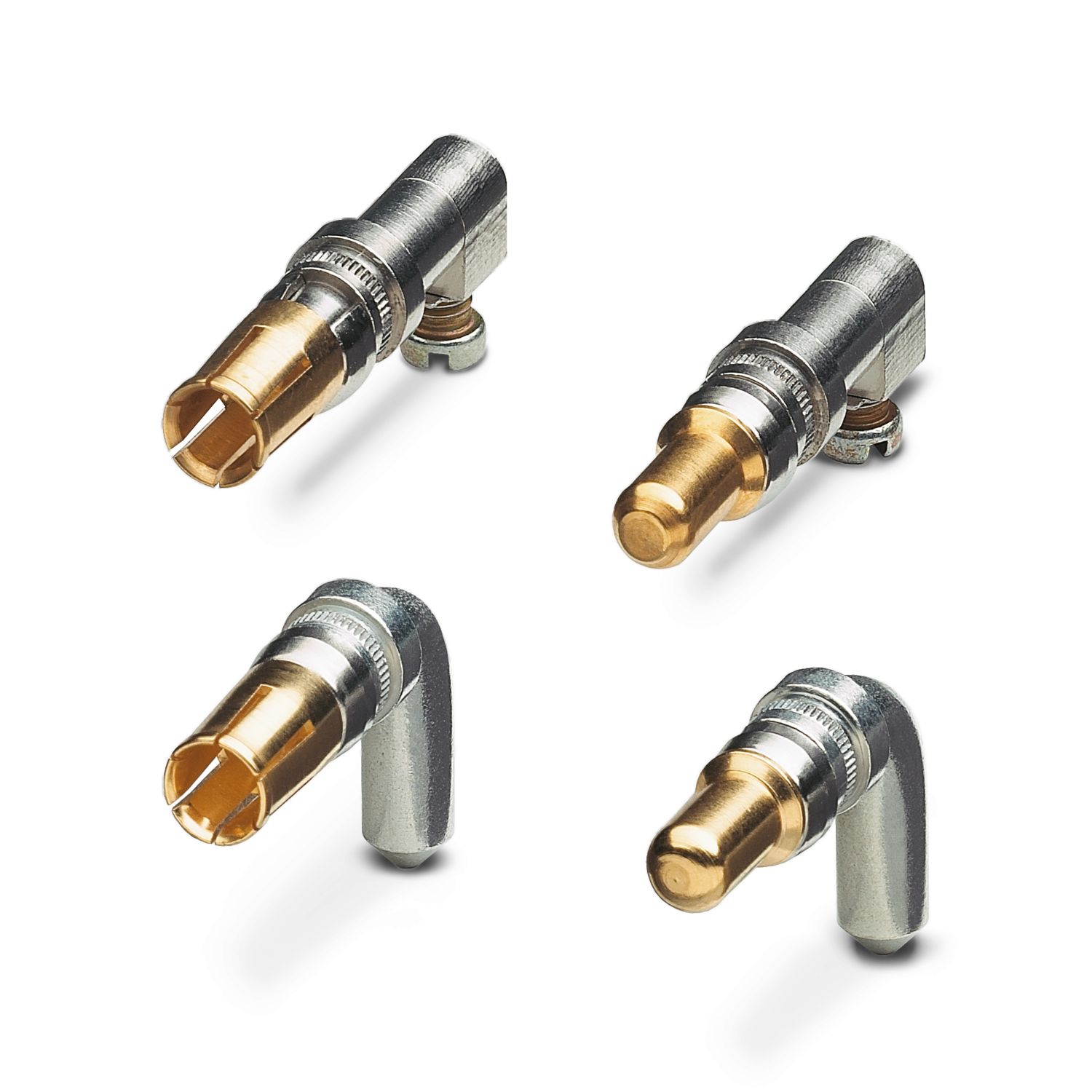

Power contacts, for D-SUB combination inserts, socket, solder cup, straight, rated current 20 A, gold-plated
Product details
General
Power contacts must be ordered separately since they are not included in the scope of supply of the contact carriers.
Product type
Contacts
Type
Individual female contact
Contact material type
turned
Maximum load current
20 A
Rated surge voltage
1 kV
Rated current
20 A (at 20 °C)
Insulation resistance
≥ 5 GΩ
Test voltage
1000 V
Maximum load current
20 A
Connection method
Solder cup
Length
23 mm
Mechanical characteristics
Contact diameter
2.6 mm
Material
Metal
Contact material
Copper alloy
Contact surface material
Au/Sn
Mechanical data
Insertion/withdrawal cycles
≥ 500
Insertion force per signal contact
≤ 7.00 N
Extraction force per signal contact
approx. 5 N
Ambient conditions
Ambient temperature (operation)
-55 °C ... 130 °C
Mounting type
Solder connection
Item number
1688256
Packing unit
100 pc
Minimum order quantity
100 pc
Sales key
D1 - Connectors
Product key
ABNCAC
Catalog page
Page 447 (C-2-2019)
GTIN
4017918179656
Weight per piece (including packing)
1,91 g
Weight per piece (excluding packing)
1,902 g
Customs tariff number
85366990
Country of origin
DE
ECLASS
ECLASS-13.0
27440392
ETIM
ETIM 9.0
EC002943
UNSPSC
UNSPSC 21.0
39121500
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
