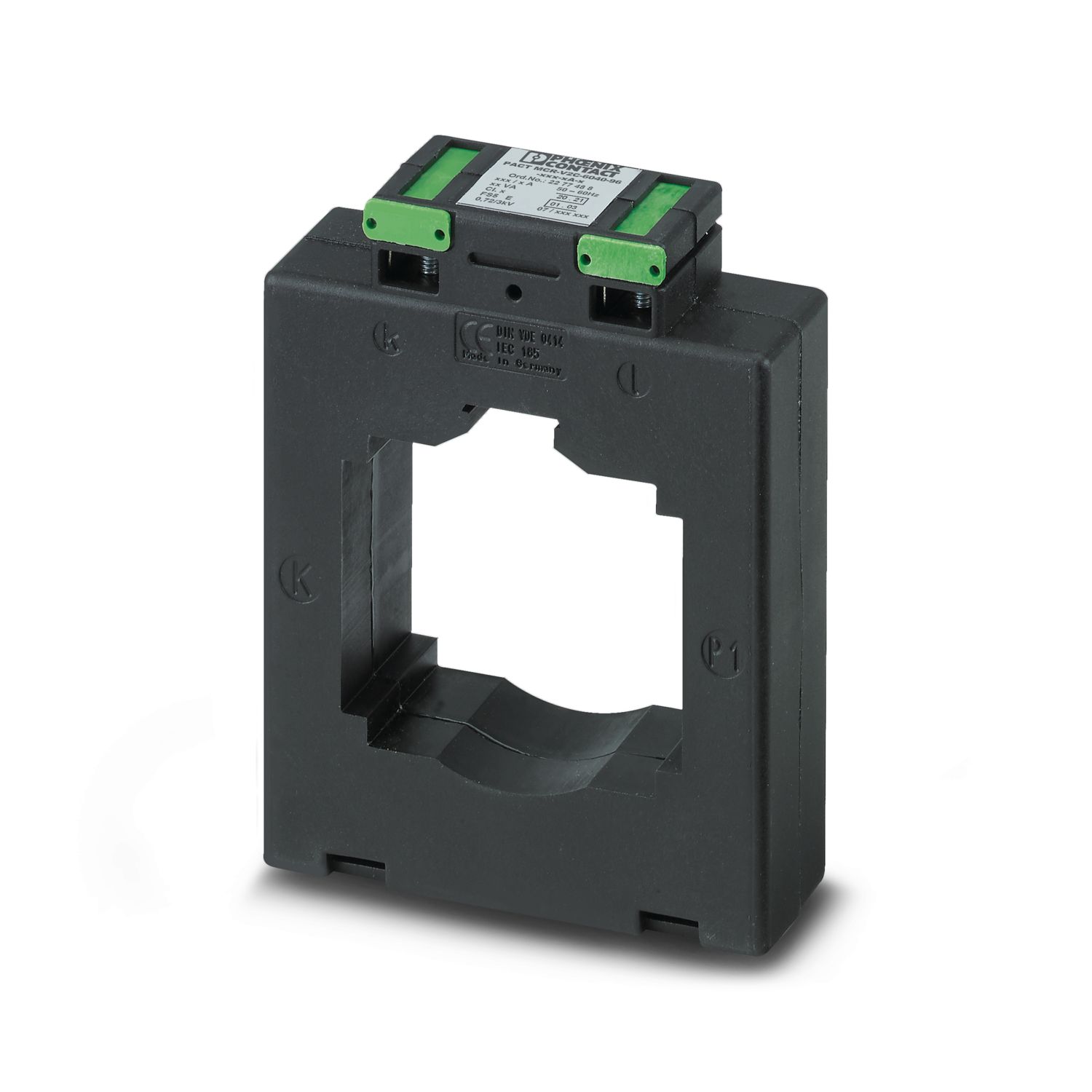

PACT MCR-V2C- 6040- 96 - Current transformer - 2277488

Product properties

Product type	Current transformer

Electrical properties

Rated insulation voltage	1 kV (Phase/neutral conductor)
General
Can be calibrated	yes
Converter type	Window-type current transformer

Input data

Current transformer
Rated power	2.5 VA
		5 VA
		10 VA
		15 VA
Thermal rated short-time current	I_th = 60 * I_n
Thermal rated continuous current	I_d = 1.2 * I_n
Rated surge current	I_dyn = 2.5 * I_th
Rated frequency f_n	50 Hz
Rated frequency f_n		60 Hz
Primary rated current I_pn	0 A ... 500 A
		0 A ... 600 A
		0 A ... 750 A
		0 A ... 800 A
		0 A ... 1000 A
		0 A ... 1200 A
		0 A ... 1250 A
		0 A ... 1500 A
Can be calibrated	yes
Converter type	Window-type current transformer

Output data

Signal
Secondary rated current I_sn	1 A AC (depends on type)
	5 A AC (depends on type)
Surge current limitation factor	FS 5
Accuracy class	0.2 (depends on type)
	0.5 (depends on type)
	1 (depends on type)
	0.2S (depends on type)
	0.5S (depends on type)

Connection data

Connection method	Screw connection
Conductor cross section flexible	2x 2.5 mm² ... 4 mm² (Secondary terminals)

Dimensions

Item dimensions
Width	30 mm
Height	121 mm
Depth	96 mm
Item dimensions with alternative mounting
Width	96 mm
Height	121 mm
Depth	30 mm
Copper rail
Width	60 mm
Height	40 mm
Copper rail 2
Width	50 mm
Height	50 mm
Circular conductor
Diameter	61 mm

Material specifications

Color	black (RAL 9005)
Housing material	PA 6.6

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-25 °C ... 40 °C
Ambient temperature (storage/transport)	-25 °C ... 40 °C
Permissible humidity (operation)	Use only indoors, non-condensing
Insulating material class	E

Standards and regulations

Standards/regulations	EN 50178
Standards/regulations		EN 61869

Item number	2277488
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	J1 - MSR Technology
Product key	CMMA11
Weight per piece (including packing)	426,5 g
Weight per piece (excluding packing)	426,5 g
Customs tariff number	85043129
Country of origin	DE

China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
