A-INL-PG7-P-BK
-
Counter nut
1424558
Counter nut, connecting thread: Pg7, color: jet black
Product details
| Product type | Flat nut |

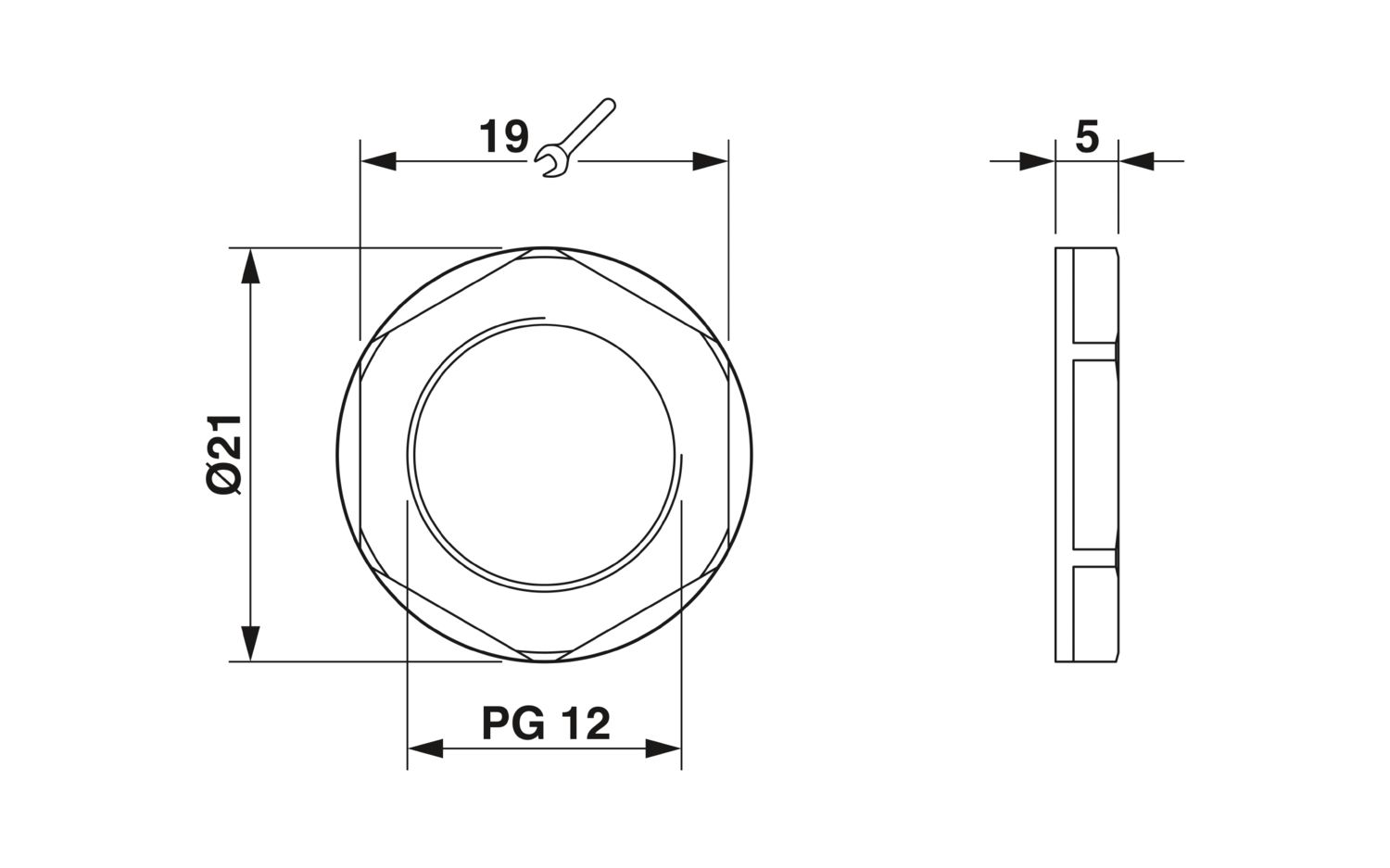

| Dimensional drawing |
|
| Length | 5 mm |
| Diameter | 12.5 mm |
| Connecting thread diameter | 12.5 mm |
| Wrench size, counter nut | 19 mm |
| Hexagon angular dimension | 21 mm |
| Thread type connection side | Pg7 |
| Material | PA 6.6 GF |
| Flammability rating according to UL 94 | V2 |
| Halogen-free | yes |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
