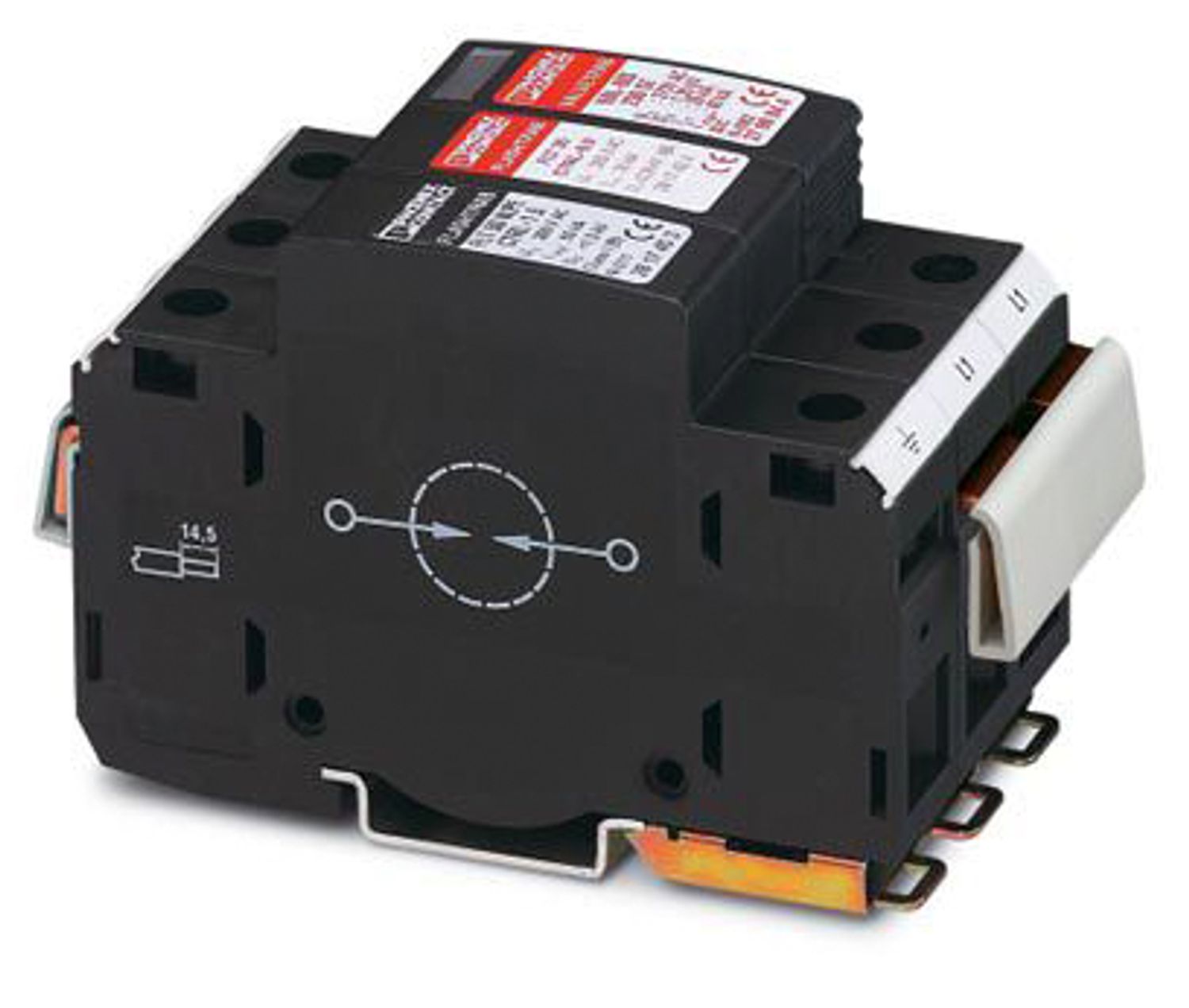

POWERSET BC/1+1/FM
-
Type 1/2 surge protection device
2858645
AEC arrester combination consisting of 1x FLT 35 CTRL 0.9, 1x VAL-MS 230/FM and 1x FLT 50N/PE CTRL-1.5, incl. Bridges and labeling
Product details
| IEC test classification | I + II |
| EN type | T1 + T2 |
| Type | DIN rail module, two-section, divisible |
| Surge protection fault message | Optical (Type 2 arrester), remote indication contact (Type 2 arrester) |
| Nominal voltage UN | 230 V AC |
| Indicator/remote signaling | |
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Conductor cross-section flexible min. | 0.5 mm² |
| Conductor cross-section flexible max. | 25 mm² |
| Conductor cross-section, rigid min. | 0.5 mm² |
| Conductor cross-section, rigid max. | 35 mm² |
| Dimensional drawing |
|
| Width | 53.1 mm |
| Height | 100.7 mm |
| Depth | 65.5 mm |
| Horizontal pitch | 3 Div. |
| Housing material | PA 6.6-FR |
| Mechanical data | |
| Open side panel | No |

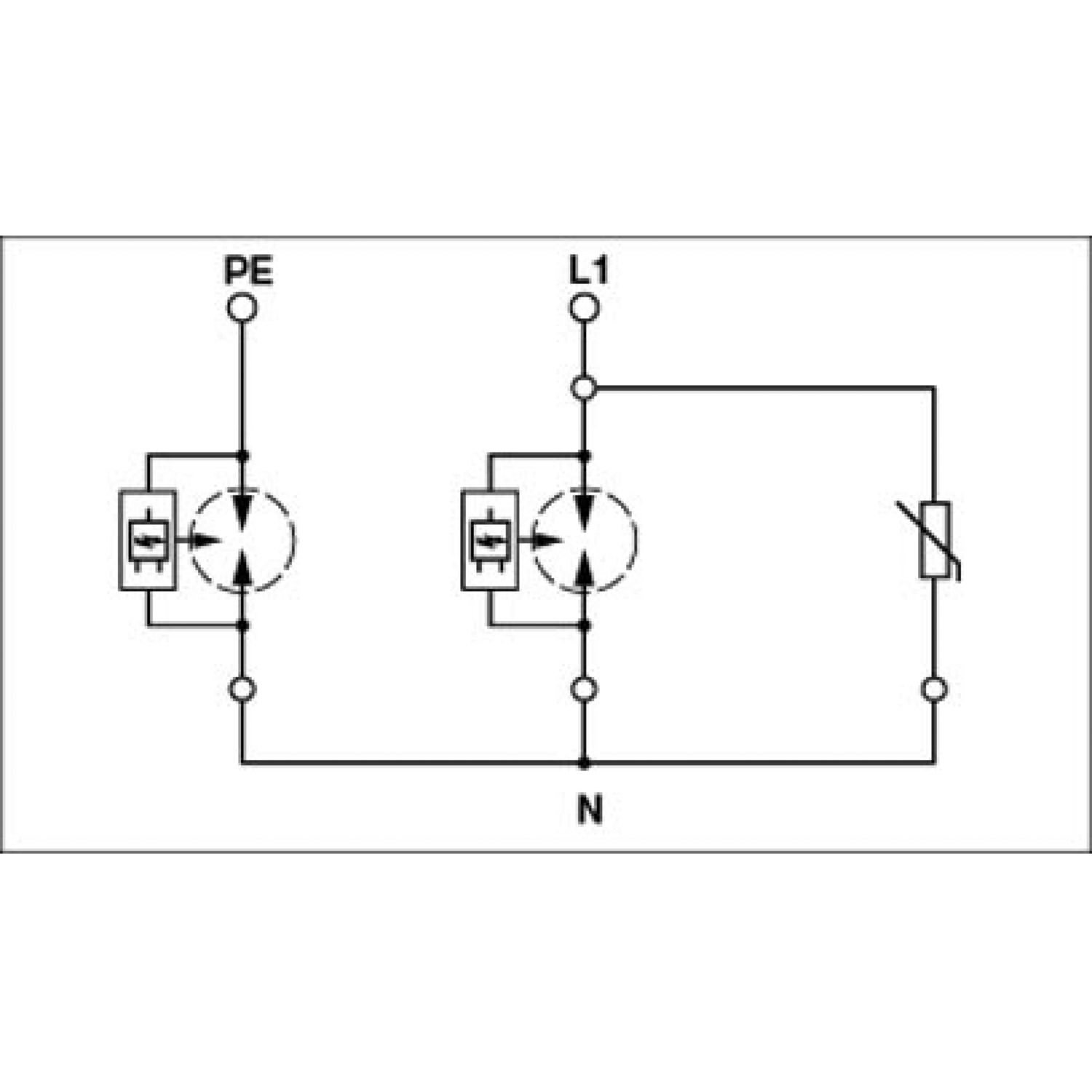

| Direction of action | 1L-N & N-PE |
| Voltage protection level Up (L-N) | ≤ 0.9 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Max. backup fuse with branch wiring | 125 A (gL) |
| Mounting type | DIN rail: 35 mm |
