The PSR-MIS non-contact safety switches offer a cost-optimized safety solution. The safety switches in this series use the proven magnetic switching principle for monitoring of movable guards and are easy to install.
PSR-MIS-RS-S-NONC-C-3,0PVC
-
Safety switch sensor
1534515
Non-contact safety switch, sensor, up to Cat. 4, PL e (EN ISO 13849), SIL 3 (EN IEC 62061), design 4 (EN ISO 14119), low encoding level, 1 N/O contact, 1 N/C contact, compact design, 3 m open PVC cable
Product details
| Product type | Safety switches |
| Product family | PSR-MIS |
| Technology | Magnetic |
| Application | Safety door monitoring |
| Position monitoring | |
| Design in accordance with EN ISO 14119 | 4 |
| Encoding level in accordance with EN ISO 14119 | low |
| Insulation characteristics | |
| Pollution degree | 3 |
| Times | |
| Response time | 1 ms |
| Switching intervals (Actuation position frontal) | |
| Actuation setting | 1 (frontal), see the “Actuation positions and travel directions” section in the data sheet |
| Sensor | |
| Contact switching type | 1 N/C contact, 1 N/O contact |
| Utilization category | DC12 |
| Rated insulation voltage Ui | max. 75 V DC |
| max. 50 V AC | |
| Voltage | min. 0 V DC (SELV/PELV) |
| max. 28.8 V DC (SELV/PELV) | |
| Current | min. 0 mA |
| max. 100 mA | |
| Rated impulse withstand voltage | 0.8 kV (Uimp) |
| Switching frequency | max. 5 Hz |
| Resistance | 22 Ω |
| Cable length | max. 30 m |
| Conductor connection | |
| Connection method | open cable end |
| Note regarding the connection technology | 3 m PVC cable, tin-plated cable end |

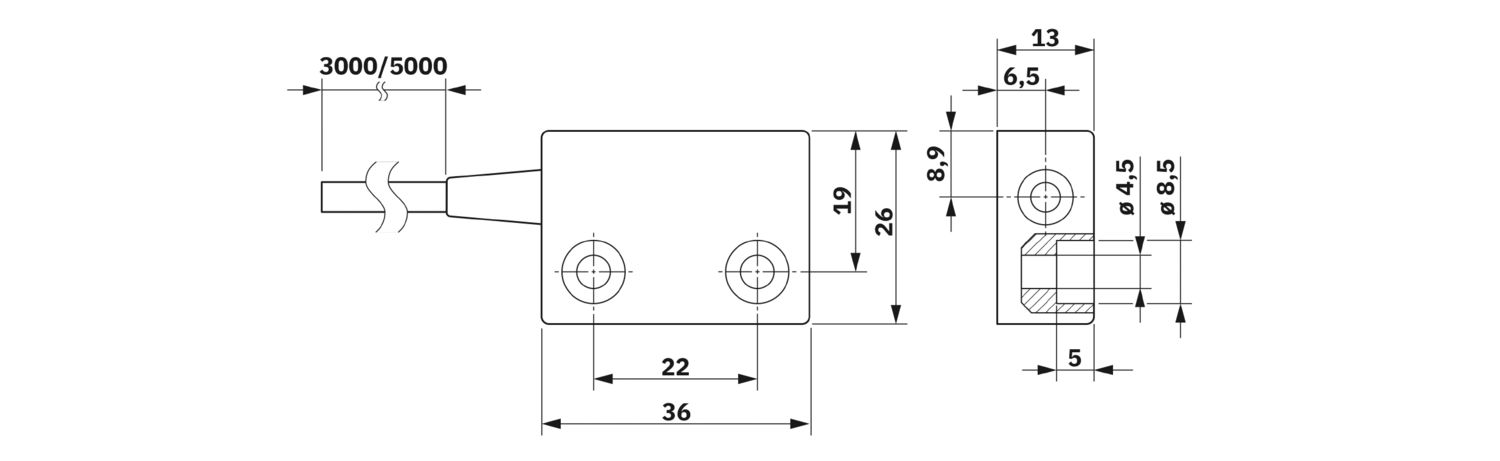

| Dimensional drawing |
|
| Width | 36 mm |
| Height | 26 mm |
| Depth | 13 mm |
| Color (Housing) | traffic yellow (RAL 1023) |
| Housing material | PBT |
| Safety data: EN ISO 13849-1 | |
| Category | 4 |
| Performance level (PL) | e |
| Safety data | |
| Safety Integrity Level (SIL) | 3 |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Maximum altitude | ≤ 2000 m (Above sea level) |
| Shock | 30g, 11 ms |
| Vibration (operation) | 10 Hz ... 55 Hz |
| Mounting type | not flush |
| Assembly note | Note EN ISO 14119 |
| max. tightening torque to secure: 2.9 Nm | |
| Mounting position | any, sensor and actuator parallel to each other |
| Minimum distance | min. 50 mm (between two safety switching systems) |
cETL
Approval ID: Industrial component
Your advantages
Cost-optimized safety switch
Tried-and-tested magnetic switching principle
Compact design
Can be used with reinforced actuator
Flexible connection, due to open cable end
Spacer plates for mounting on ferrous material available as accessories
