HC-B 10-SD-ML/FS
-
Protective cover
1678295

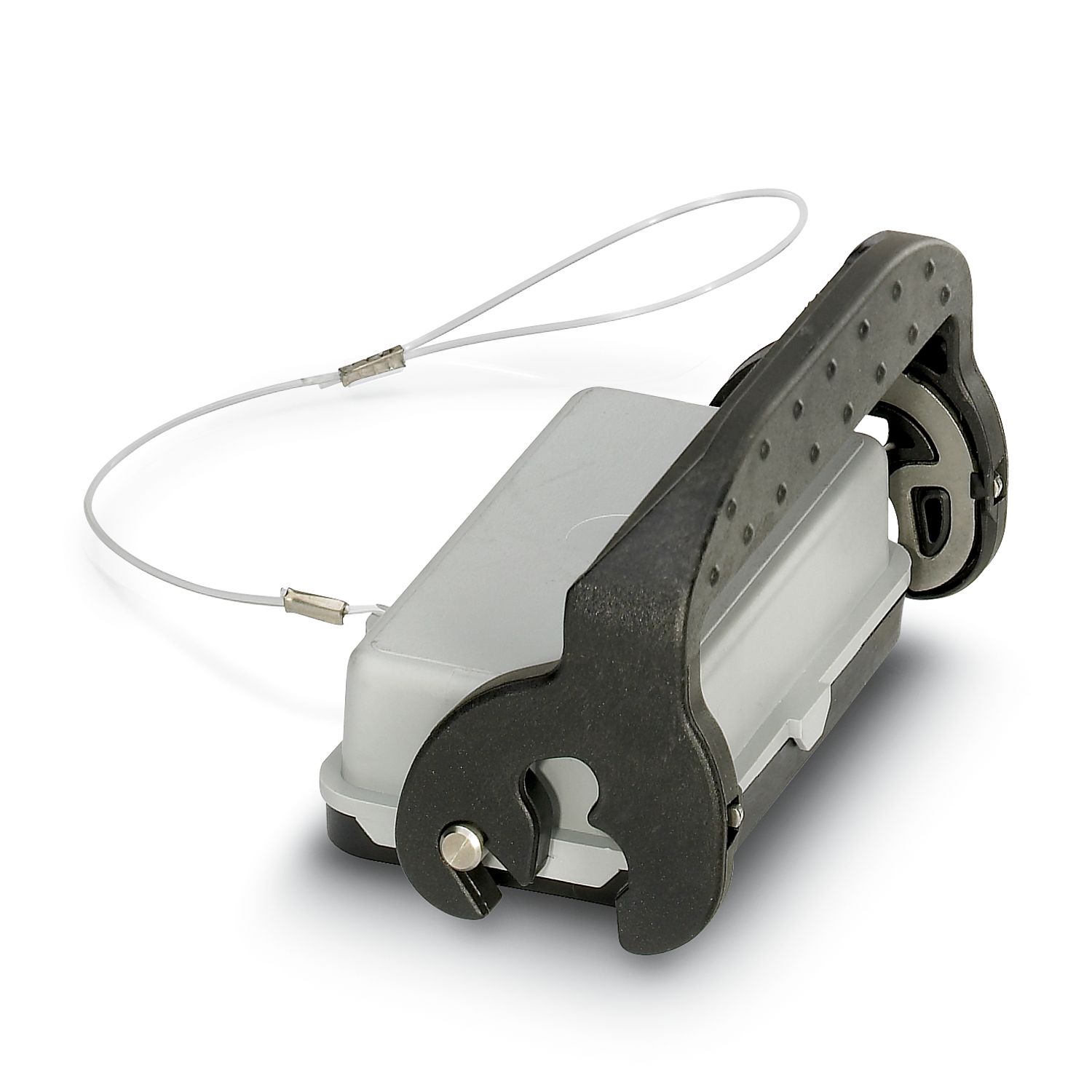

Protective cover B10, with single locking latch, protective cover material: PA, height: 21.6 mm, seal: yes, with lanyard
Product details
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | B10 |
| Type | for sleeve housing without single locking latch |
| Retaining cord present | yes |
| Seal present | yes |

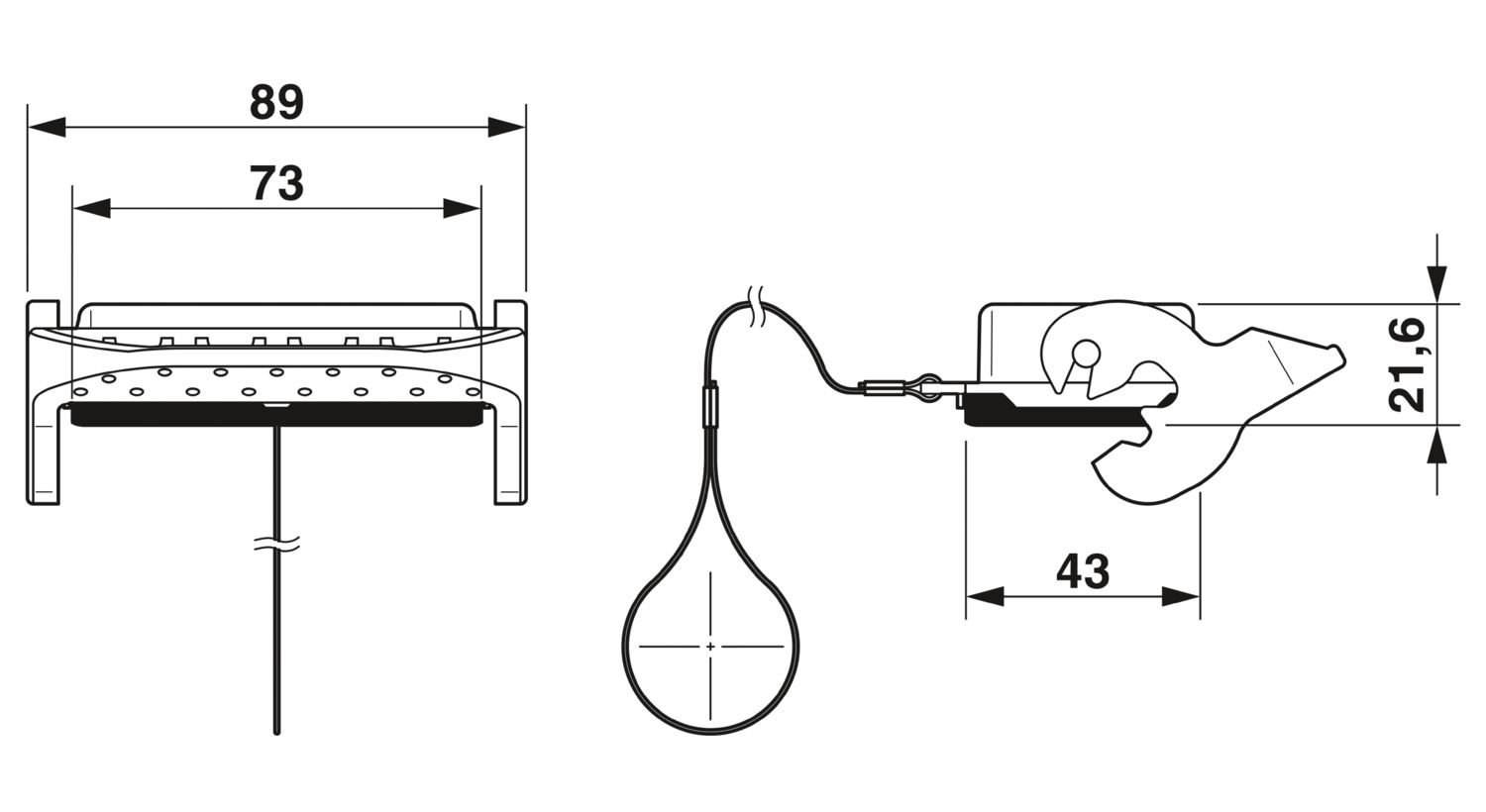

| Dimensional drawing |
|
| Width | 43 mm |
| Height | 21.6 mm |
| Length | 73 mm |
| Diameter | 30 mm |
| Material Protective cover | PA |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material, protective cover | PA |
| Locking latch material | High-grade steel, handle: PA-GF |
| Mechanical data | |
| Locking type | Latch |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
| Assembly note | Plastic protective cover for short-term protection |
