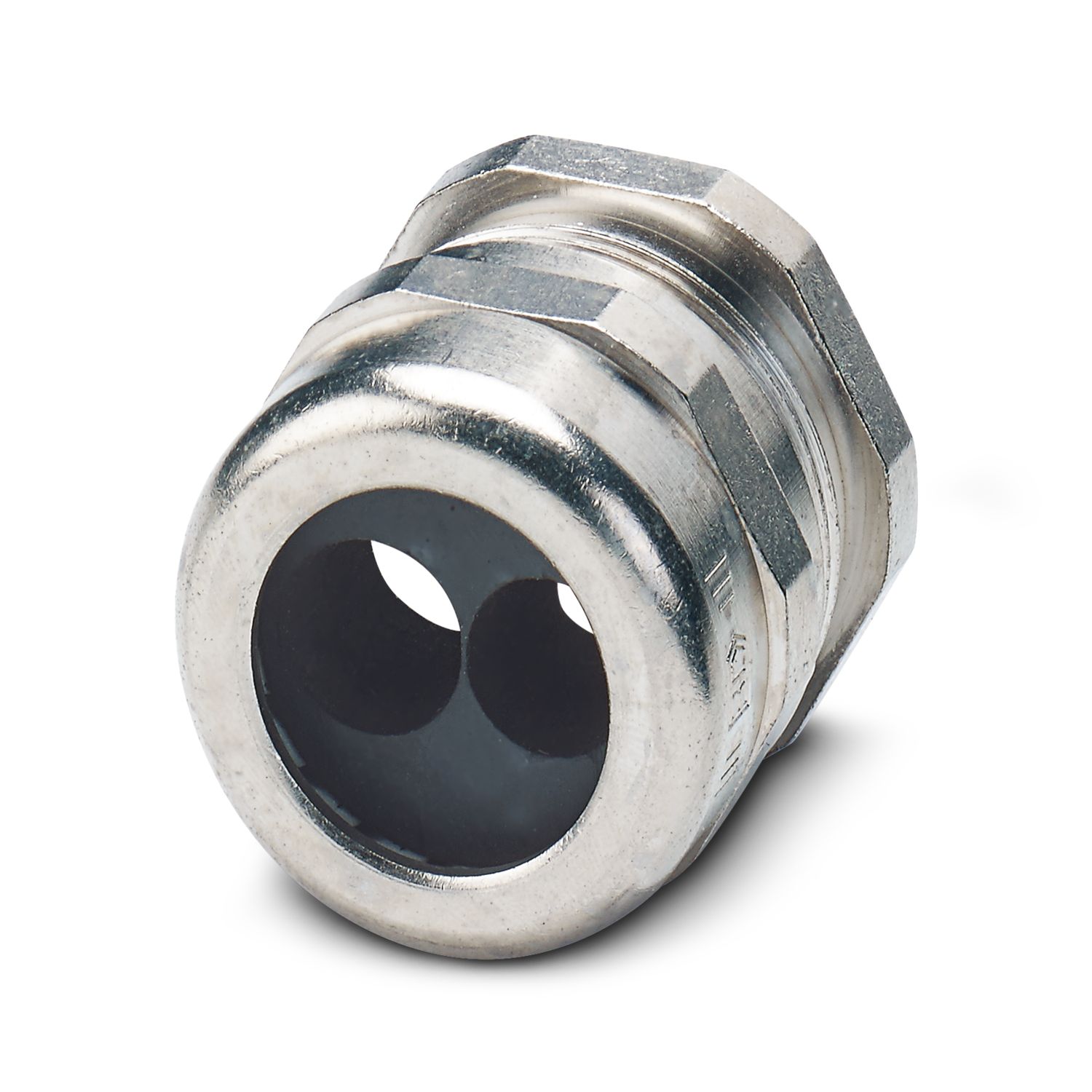

HC-M-KV-M25(1X10/1X11)
-
Cable gland
1580228
Special cable screw connection M25, brass nickel-plated, grommet with 10 mm and 11 mm holes
Product details
| Product type | Multiple screw connection |
| No. of conductors | 2 |
| Manufacturer | Jacob |
| Manufacturer Designation | 50.625 M/2x10 |
| Shielded | no |
| External cable diameter | 9.5 mm ... 10 mm (Cable 1) |

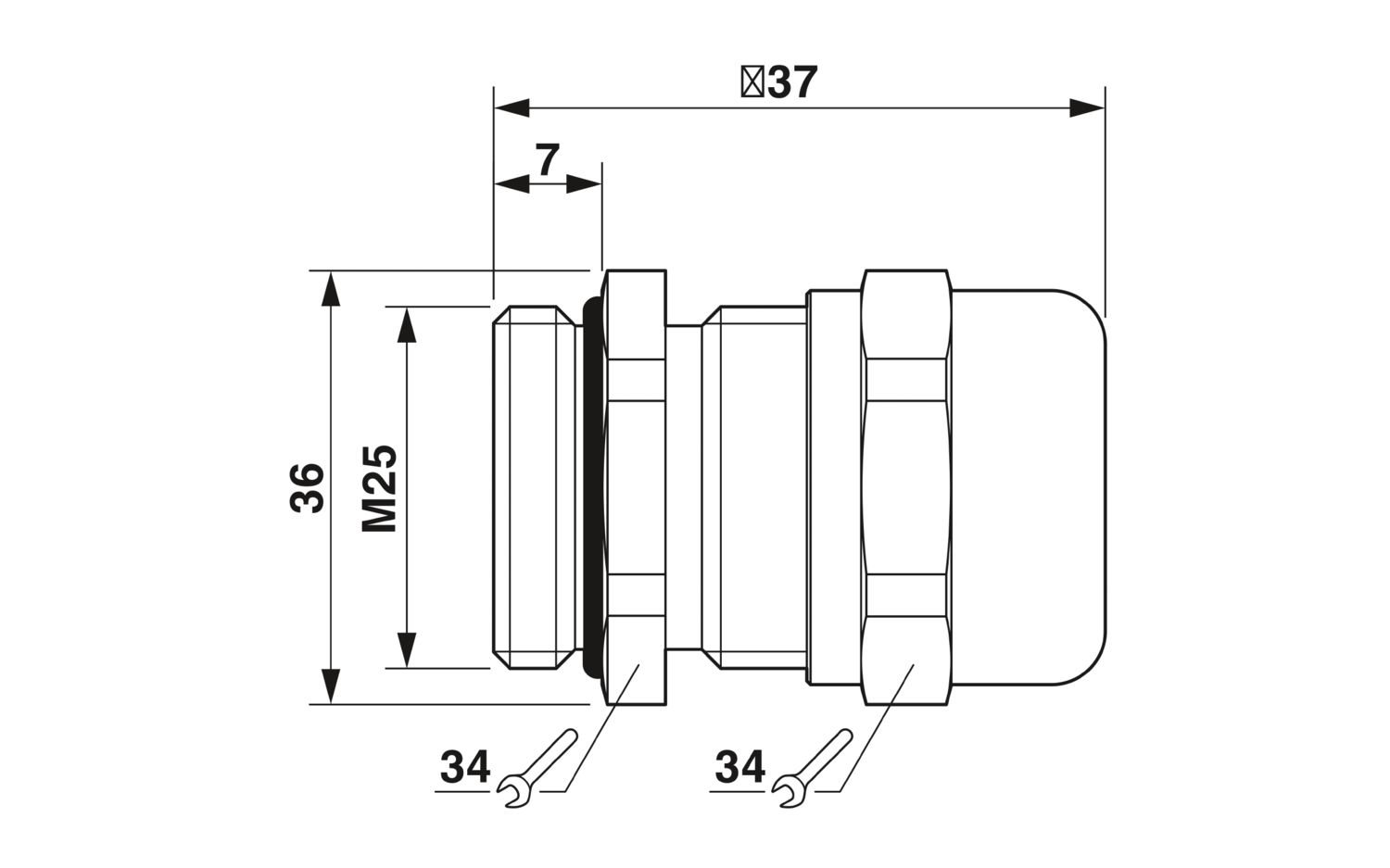

| Dimensional drawing |
|
| Length | 37 mm |
| Length of the connecting thread | 7 mm |
| Hole diameter | 25.1 mm ... 25.2 mm |
| Wrench size, union nut | 34 mm |
| Wrench size, support | 34 mm |
| Hexagon angular dimension | 36 mm |
| Thread type connection side | M25 x 1.5 |
| Thread pitch | 1.5 mm |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | 9.5 mm ... 10 mm (Cable 1) |
| External cable diameter Cable 2 | 10.5 mm ... 11 mm (Cable 2) |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
