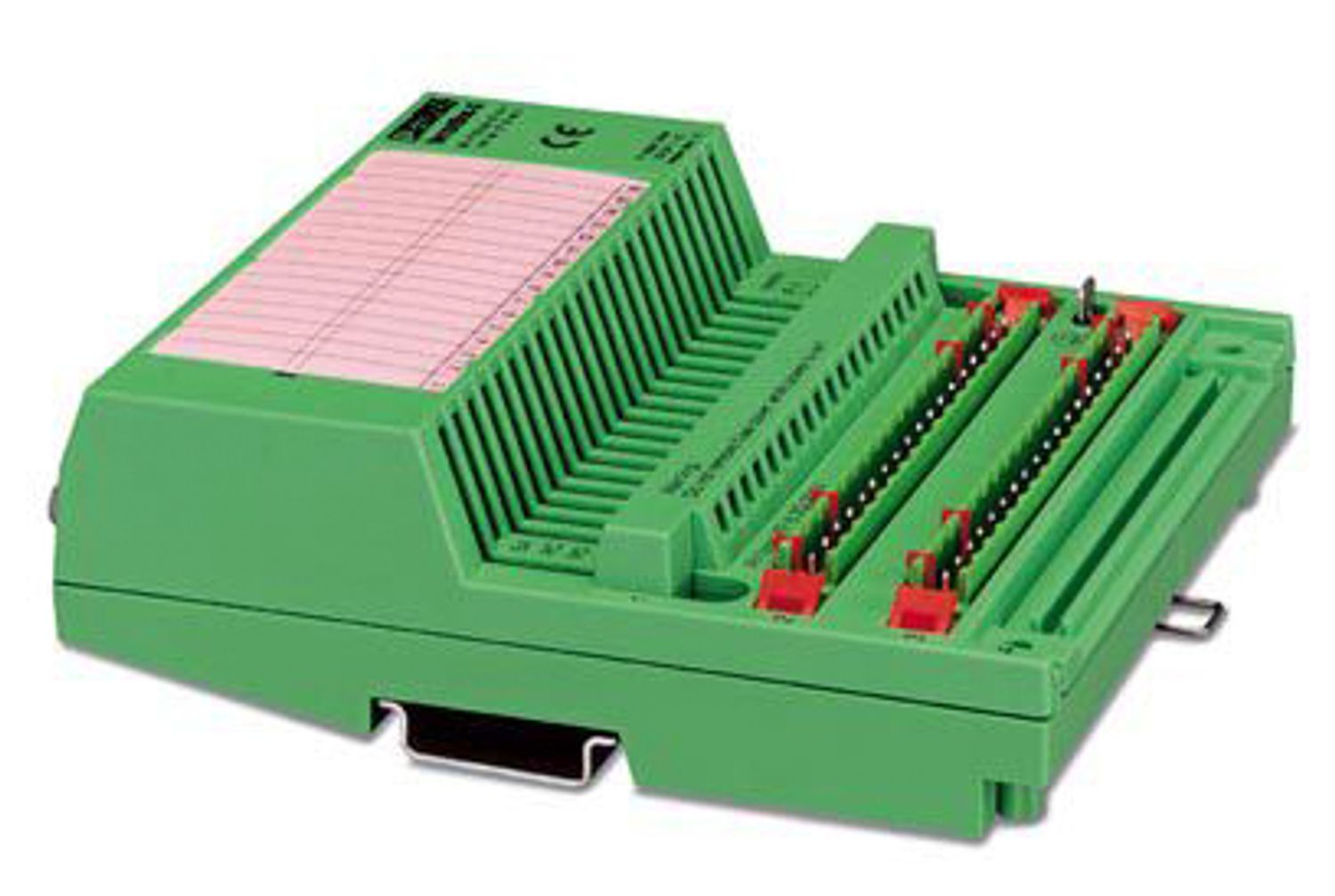

IBS RT120/230 DO 16-T
-
I/O module
2750468
INTERBUS-RT digital input module, 16 outputs, 24 - 230 V AC, 500 mA, 2-conductor connection technology, IP20 degree of protection, without connector set
Product details
| Supply | |
| I/O voltage | 120 V AC (up to 230 V AC) |
| Typical current consumption | 40 mA at 120 V AC, 30 mA at 230 V AC |
| Digital | |
| Number of outputs | 16 |
| INTERBUS remote bus (incoming/outgoing) | |
| Connection method | D-SUB-9 |
| Dimensional drawing |
|
| Width | 125 mm |
| Height | 44 mm |
| Length | 146 mm |
| Color | green |
