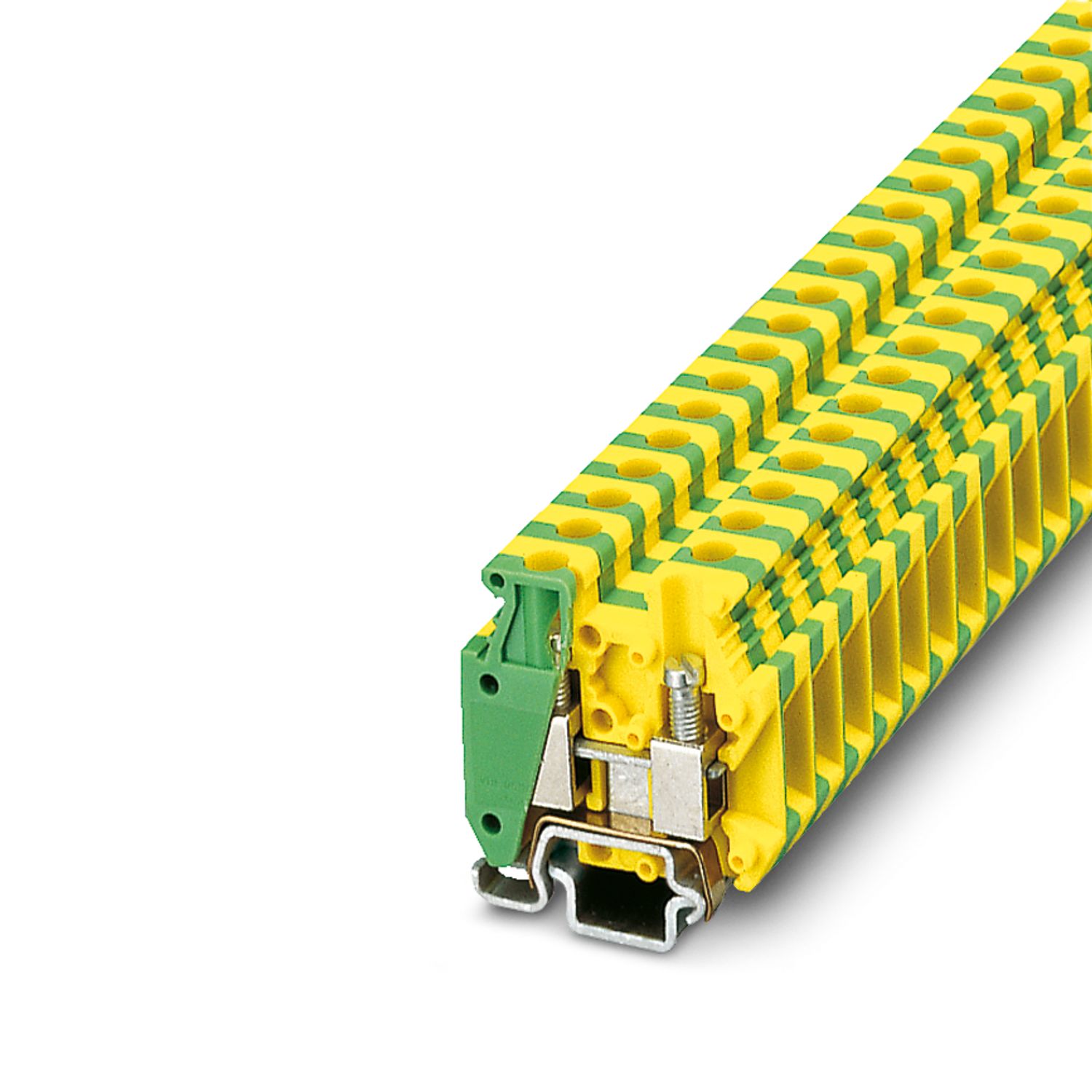

MBK 5/E-Z -PE - Mini protective conductor terminal block

0452043

Mini protective conductor terminal block, number of connections: 2, connection method: Screw connection, 1 level, cross section: 0.2 mm² - 6 mm², mounting type: NS 15, color: green-yellow

Compatible products

Accessories

Your advantages

If the mini ground terminal blocks are at the end of a terminal strip, an end bracket, e.g., E/MK, should be used

The green-yellow housing clearly indicates the protective conductor function of the terminal block

The mini ground terminal blocks are electrically connected to the DIN rail via their foot elements, which means that the DIN rail can be used as a grounding busbar

These miniature ground terminals were designed specifically for the 15 mm DIN rail (NS 15) in accordance with EN 60715
