FLKM S135/S400/SO124 - Front adapter

FLKM S135/S400/SO124 - Front adapter

2301765

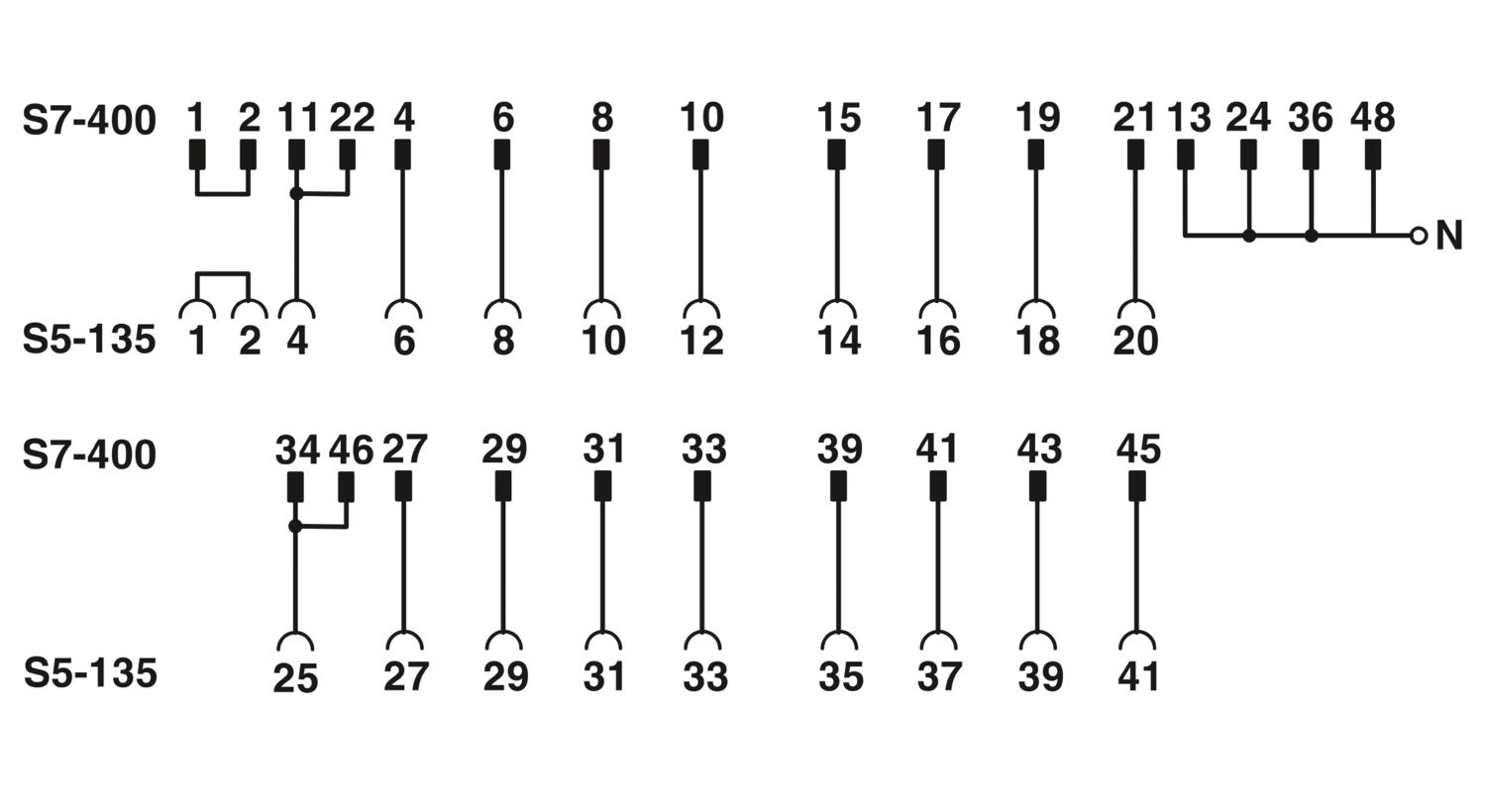

The FLKM S135/S400/SO adapter links a SIMATIC® S5 plug directly with the basic SIMATIC® S7 400 card.
Conversion: S5 card 6ES5 456-4UA12 to S7 card 6ES7-422-1FH00-0AA0

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Front adapter

Electrical properties

Operating voltage (AC)	≤ 230 V AC
Current (Per path)	≤ 4 A
Current (per connection)	≤ 4 A (Feed-in via separate power supply)
Supported controller SIEMENS S5-135 U
Suitable I/O card	6ES5 456-4UA12
Supported controller SIEMENS S7-400
Suitable I/O card	6ES7422-1FH00-0AA0

Connection data

Field level
Connection method	SIEMENS S5-135 U pin strip

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards and regulations

Standards/regulations	DIN EN 50178

Mounting

Mounting position	vertical

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2301765
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK233S
Product key	DK233S
GTIN	4017918962500
Weight per piece (including packing)	338.5 g
Weight per piece (excluding packing)	338.5 g
Customs tariff number	85369010
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27242292

Environmental product compliance

China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
