VS-PC-2XHCS-200-SCRJ/FSMA-5
-
FO connecting cable
1654989

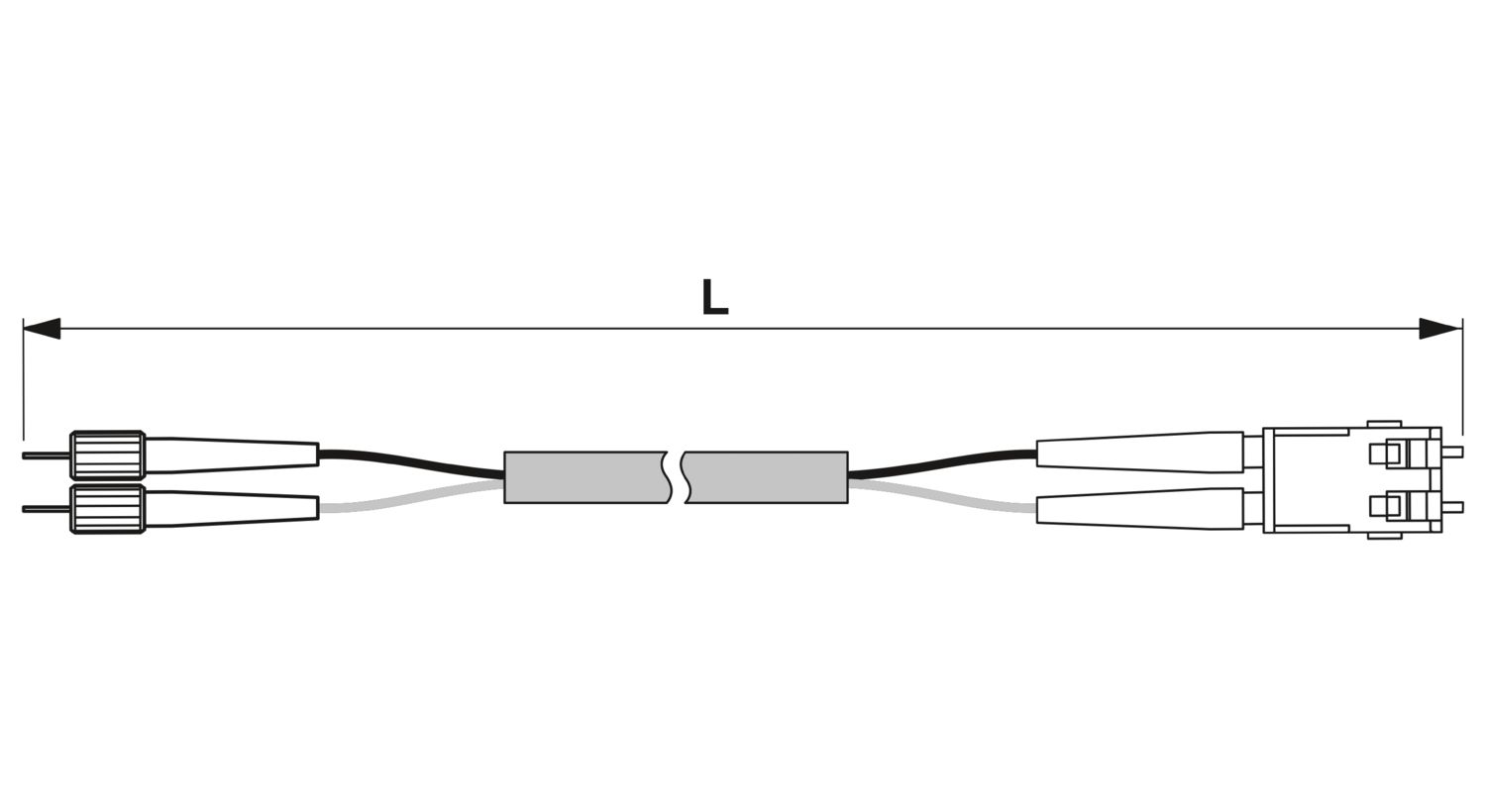

Assembled FO cable, breakout cable, 200/230 µm PCF fiber, SC-RJ/IP20 to FSMA/IP20, for installation inside control cabinets, length: 5 m
Product details
| Product type | Data cable preassembled |
| Sensor type | Ethernet |
| Number of positions | 2 |
| Connection profile | SCRJ in accordance with DIN EN 50377-6-1 |
| Attenuation | ≤ 1.2 dB (with 850 nm) |
| Transmission medium | PCF fiber |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 1000 |
| Housing material | PBT/nickel silver |
| Outer sheath, material | TPE-O |
| Connection 1 | |
| Type | Plug straight SC-RJ |
| Degree of protection | IP20 |
| Connection 2 | |
| Type | Plug straight FSMA |
| Degree of protection | IP20 |
| Cable type | Breakout |
| Outer sheath, material | TPE-O |
| External sheath, color | orange |
| Individual wire diameter | 2.2 mm |
| Smallest bending radius, fixed installation | 50 mm |
| Smallest bending radius, movable installation | 50 mm |
| Resistance to oil | yes |
| Flame resistance | yes, in accordance with IEC 60332-1-2 and in accordance with IEC 60332-3-22 Cat A |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| FO cable | |
| Number of fibers | 2 |
| Fiber | 200/230 µm |
| Fiber type | PCF fiber A3C |
| Cable, attenuation | 10 dB/km (650 nm), 8 dB/km (at 850 nm) |
| Transmission medium | PCF fiber |
| Ambient conditions | |
| Degree of protection | IP20 |
| IP20 | |
| Ambient temperature (operation) (Cable, fixed installation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Resistance to oil | yes |
| Flame resistance | yes, in accordance with IEC 60332-1-2 and in accordance with IEC 60332-3-22 Cat A |
| Resistance to oil | yes |
| Item number | 1654989 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | ABNACE |
| Product key | ABNIBB |
| GTIN | 4046356028950 |
| Weight per piece (including packing) | 200 g |
| Weight per piece (excluding packing) | 200 g |
| Customs tariff number | 85369010 |
| Country of origin | DE |
UNSPSC
| UNSPSC 21.0 | 26121607 |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
