HC-APV 24 GN
-

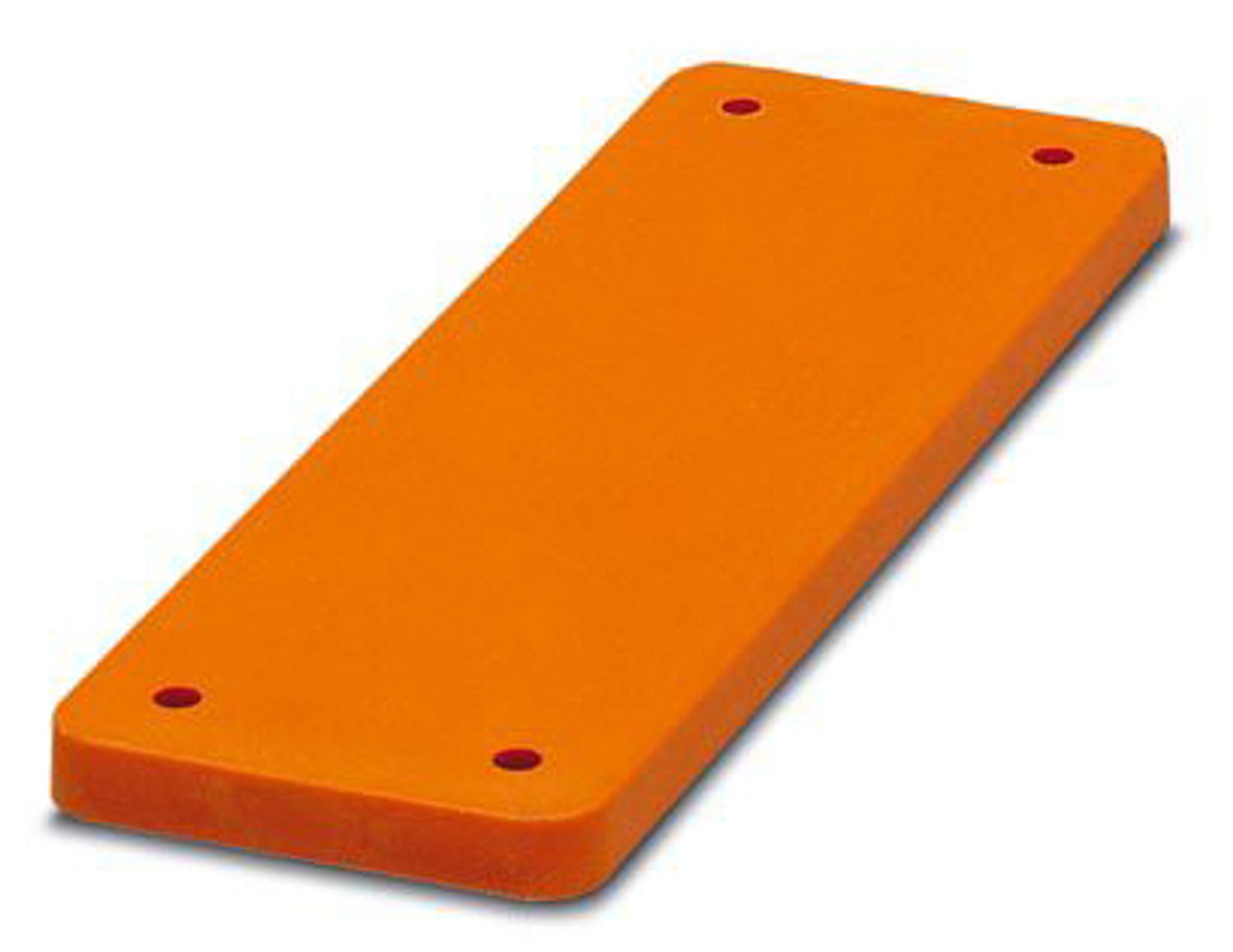

Cover plate
1661040
Cover plate, reinforced, for individual processing, for HC-B 24 cutouts, cutout 36 x 113 mm, for type B24
Product details
| Type | B24 |
| Dimensional drawing |
|
| Width | 2 mm |
| Height | 52 mm |
| Length | 150 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Internal dimensions | |
| Internal cutout dimension | 36 x 113 mm |
| Color | green |
