EG 22,5-GMFP/PC GN
-
Mounting base housing
2764807

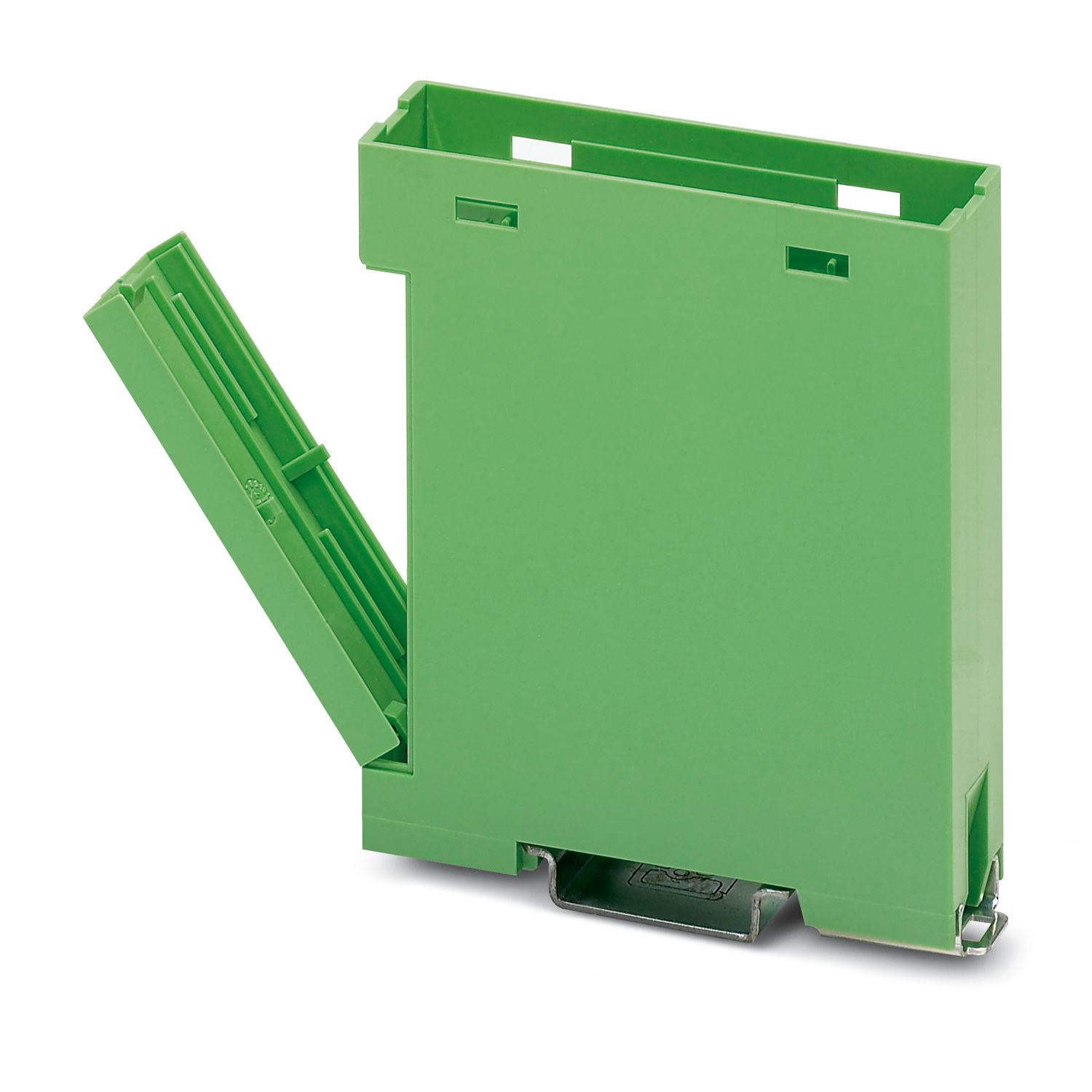

Housing base, with metal foot catch and test opening with side cover
This product needs further products for operation.
Mandatory accessories
Product details
| Housing type | Component housing |
| Type | Lower housing parts with test opening with side cover, housing cover necessary to complete the module |
| Number of positions | 8 |
| Type | Lower part |
| Dimensional drawing |
|
| Width | 22.5 mm |
| Installed height | 107.5 mm |
| Height NS 35/7,5 | 107.5 mm |
| Depth | 75 mm |
| Length | 75 mm |
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail mounting |
