Exporting Configuration Data


What you will find in this section:

  1. Exporting configuration data
  2. Related topics



If you want to apply existing configurations to other devices, you can transmit the configuration data as follows:

  • Exporting configuration data
  • Importing configuration data
  • Direct transfer of configuration data



Exporting configuration data



Navigation on the web server

“System, Configuration data, Export configuration”

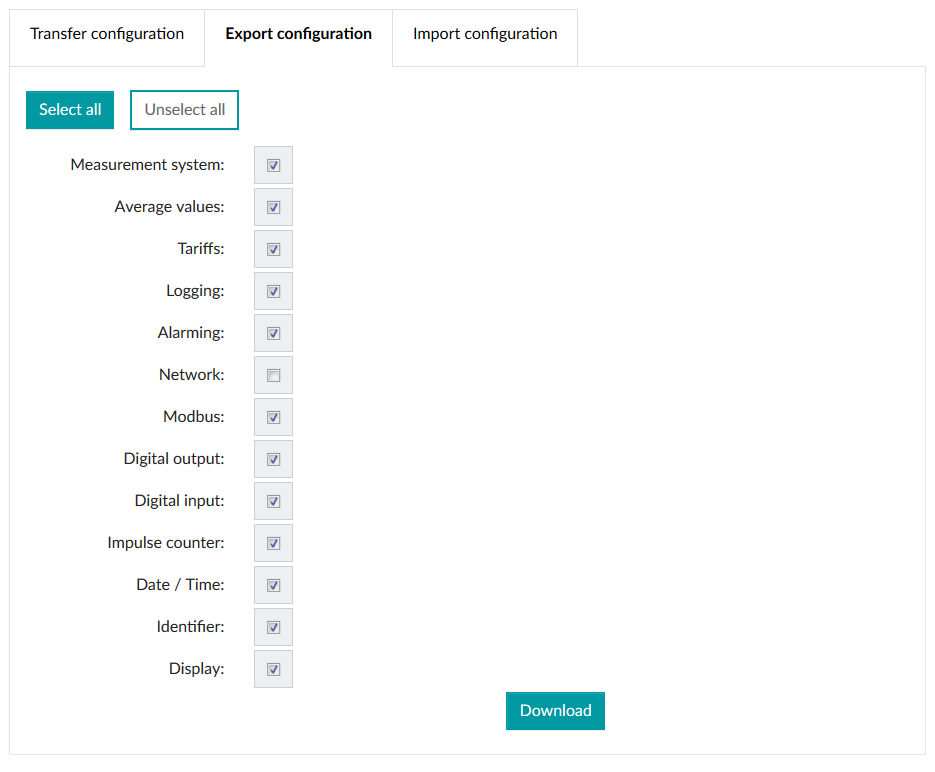

Menu “System, Configuration data, Export configuration”
Menu “System, Configuration data, Export configuration”



If you want to export the entire device configuration, all checkboxes except the network configuration are enabled.

To perform a 1:1 device exchange, or to download an identical device configuration, click “Select all”. All checkboxes in the overview are enabled.

Another option is to perform a partial configuration by only enabling the required checkboxes. In this case, only the selected configuration is downloaded.

Press the “Download” button to download the configuration.
