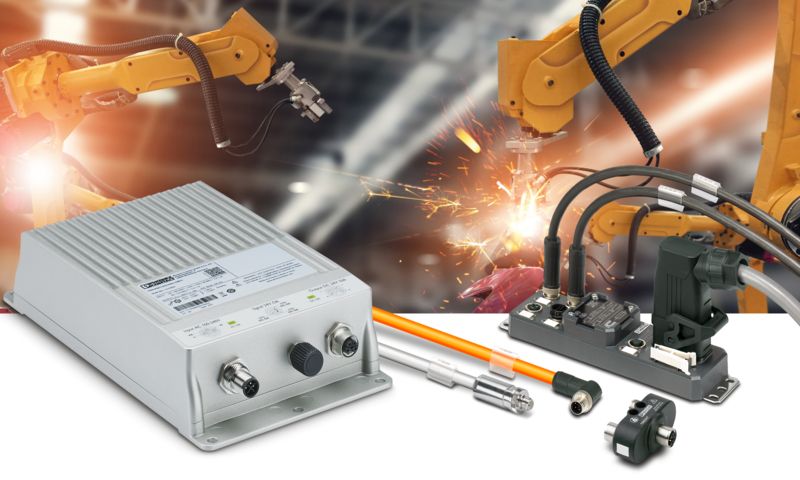

Power supplies for field installation enable a decentralized, flexible, and modular power supply. Robust, dustproof, and waterproof die-cast aluminum housings ensure reliable operation under harsh conditions. The portfolio of IP67 switched-mode power supplies for 24 V DC supply ranges from standard devices with and without HMI to multichannel power supplies with integrated device protection.
Primary-switched power supply unit TRIO POWER IP67, IPD connectors with Push-Lock connection, Panel mounting (with accessories as an option), input: 1-phase, output: 24 V DC / 20 A, adjustable from 23.5 V DC ... 28.5 V DC
Primary-switched power supply unit TRIO POWER IP67, M12 circular connector, 4-channel electronic circuit breaker, IO-Link, Panel mounting (with accessories as an option), input: 1-phase, output: 24 V DC / 20 A, adjustable from 23.5 V DC ... 28.5 V DC
Primary-switched power supply unit TRIO POWER IP67, M12 circular connector, 4-channel electronic circuit breaker, IO-Link, Panel mounting (with accessories as an option), input: 1-phase, output: 24 V DC / 20 A, adjustable from 23.5 V DC ... 28.5 V DC
Primary-switched power supply unit TRIO POWER IP67, M12 circular connector, Panel mounting, input: 1-phase, output: 24 V DC / 3.75 A
Primary-switched power supply unit TRIO POWER IP67, 7/8″ circular connector, Panel mounting, input: 1-phase, output: 24 V DC / 8 A
Primary-switched power supply unit TRIO POWER IP67, M12 circular connector, Panel mounting, input: 1-phase, output: 24 V DC / 3.75 A
Primary-switched power supply unit TRIO POWER IP67, IPD panel feed-through with Push-in spring connection, Panel mounting, input: 1-phase, output: 24 V DC / 10 A
Primary-switched TRIO POWER power supply in IP67 die-cast housing, M12 circular connector, input: 1-phase, 5-pos. output: 24 V DC/10 A, static boost: up to 12.5 A (continuous)
Primary-switched power supply unit TRIO POWER IP67, IPD panel feed-through with Push-in spring connection, Panel mounting, input: 1-phase, output: 24 V DC / 3.75 A
Primary-switched power supply unit TRIO POWER IP67, 7/8″ circular connector, Panel mounting, input: 1-phase, output: 24 V DC / 3.75 A
The new IP67 switched-mode power supply units with and without integrated device protection offer a combined supply and protection solution. They are easy to integrate, install, and configure – for flexible availability and optimum adaptation in decentralized environments.
The TRIO POWER IP67 is a reliable 24 V DC power supply and supports modular machine building and systems manufacturing concepts. The robust, dustproof, and waterproof housings enable reliable use in harsh industrial environments. Our switched-mode power supplies are available in the following performance classes: 3.75 A, 8 A, 10 A or 20 A.
 |
 |
 |
 |
|
|---|---|---|---|---|
|
MULTICHANNEL
24 V DC / 20 A |
STANDARD
24 V DC / 20 A |
STANDARD
24 V DC / 8 A / 10 A |
STANDARD
24 V DC / 3.75 A |
|
| Output voltage (adjustable) | ||||
| Integrated circuit breaker | ||||
| Static boost | 125% | — | — | — |
| Dynamic boost | 200% (5 s) | 200% (5 s) | 150% | — |
| Human Machine Interface | ||||
| IO-Link interface | ||||
| DC OK interface (switching contacts) | ||||
| NEC Class 2 approval | ||||
| To the products | To the products | To the products | To the products |
The IP67 switched-mode power supply units with integrated device circuit breaker feature a reliable 24 V DC supply and selective overcurrent protection directly in the device. Up to four load circuits can each be protected with 1 A to 10 A each, without additional protective components in the control cabinet.
TRIO POWER switched-mode power supply units for field mounting provide a 20 A power supply directly at the load. The adjustable output voltage of 23.5 to 28.5 V DC directly on the device via HMI enables simple, flexible adaptation to the connected load. Comprehensive status signaling enables efficient diagnostics.
The 8 A and 10 A power supplies with IP67 degree of protection have potential-free switching contacts and provide increased diagnostic options. Safe starting of heavy loads is made possible through the dynamic boost of 150% for 5 s. The smaller 3.75 A switched-mode power supply units for power-limited circuits are NEC Class 2 classified and ensure that the maximum output power of 100 W is not exceeded even in the event of a fault.
We provide our IP67 power supplies with a selection of different connection options to ensure a flexible and tailored installation.
Safe use is guaranteed by the high shock resistance, vibration resistance, and electric strength of all devices.
TRIO IP67 power supplies with M12 power cabling
Phoenix Contact provides much more than IP67 power supplies for field assembly. A comprehensive, perfectly coordinated portfolio is available for the consistent development of decentral automation concepts. From flexible cabling solutions and I/O systems to industrial communication technology – all components are designed consistently to meet the requirements of harsh ambient conditions and can be seamlessly combined. This enables the creation of integrated, modular solutions that significantly simplify planning, installation, and operation.
