Valve connector, Universal, 5-position, Valve connector AD (pressure switch), Screw connection, cable gland M20 x 1.5, external cable diameter 6 mm ... 8 mm
Product details
Assembly note
NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.
Product type
Valve connectors
Sensor type
Universal
Number of positions
5
No. of cable outlets
1
Shielded
no
Pg screw connection
M20 x 1.5
Insulation characteristics
Overvoltage category
II
Degree of pollution
3
Flammability rating according to UL 94
HB
Seal material
NBR
Material housing valve plug
PA
Contact material
CuZn
Contact surface material
CuSn
External dimensions
Outside diameter
6 mm ... 8 mm
Contact resistance
≤ 4 mΩ
Insulation resistance
> 2 GΩ
Nominal voltage UN
24 V AC
24 V DC
Nominal current IN
1.5 A
Protective circuit
unwired
Valve connector characteristics
Fixing screws
M3 x 37,5
Mechanical data
Insertion/withdrawal cycles
50 (Valve connector)

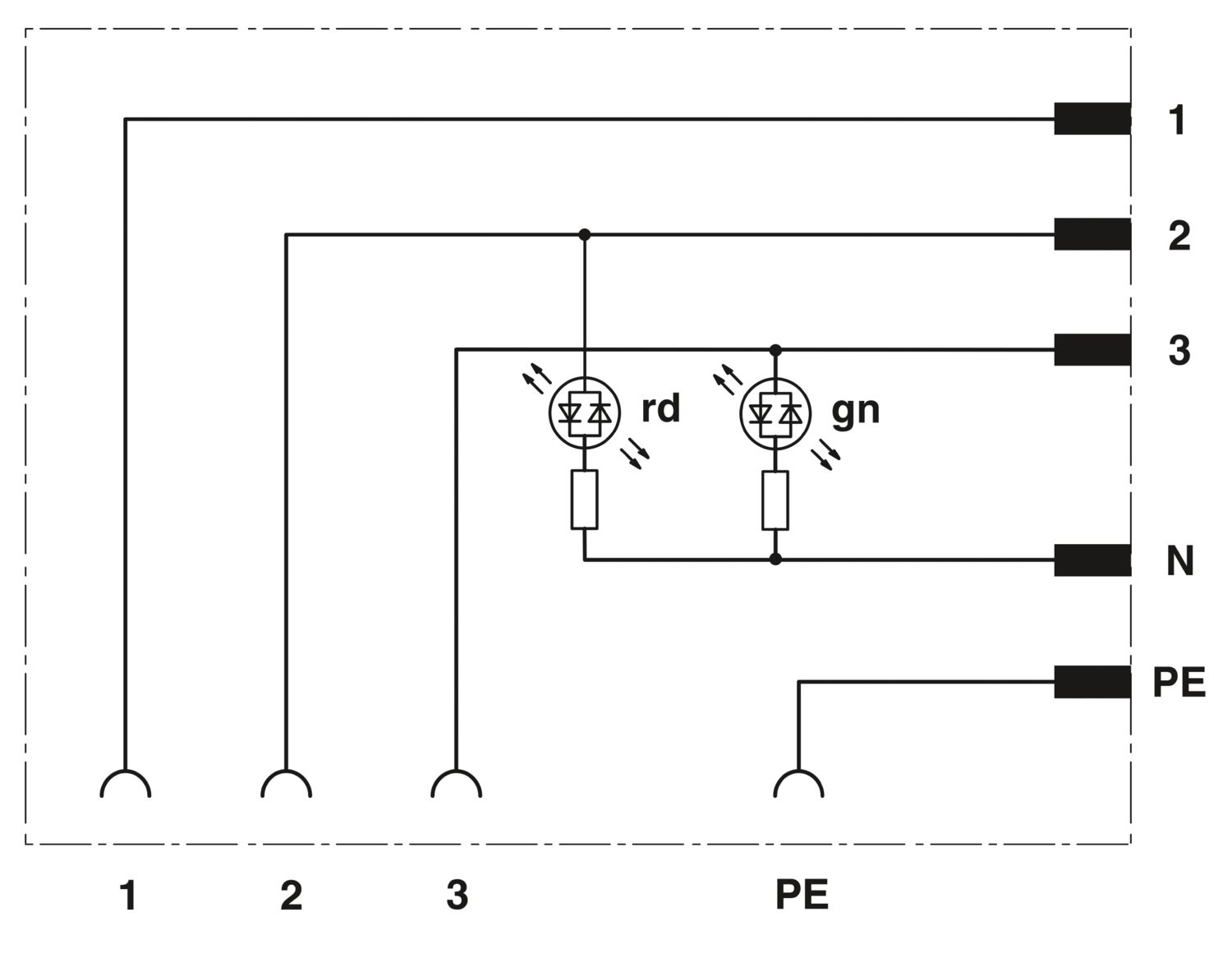

Status display
2 LEDs
Status display present
yes
Connection method
Screw connection
Conductor cross section
0.25 mm² ... 1.5 mm²
Connection cross section AWG
24 ... 16
Tightening torque
1.8 Nm ±0.2 Nm (Pressure screw)
0.4 Nm ±0.1 Nm (Central screw)
0.2 Nm ±0.1 Nm (Contact screw)
Connection 1
Head design
Valve connector
Head thread type
AD (pressure switch)
Ambient conditions
Degree of protection
IP65
Ambient temperature (operation) (Valve connector)
-25 °C ... 60 °C (Valve connector)
Valve connector
Standard designation
Valve connector
Standards/specifications
EN 175301-803
Item number
1457908
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
AF2
Product key
AF2DAA
Catalog page
Page 29 (C-2-2019)
GTIN
4046356630689
Weight per piece (including packing)
32.9 g
Weight per piece (excluding packing)
32.3 g
Customs tariff number
85366990
Country of origin
HU
ECLASS
ECLASS-13.0
27440105
ETIM
ETIM 9.0
EC003623
UNSPSC
UNSPSC 21.0
31251500
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-25
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
