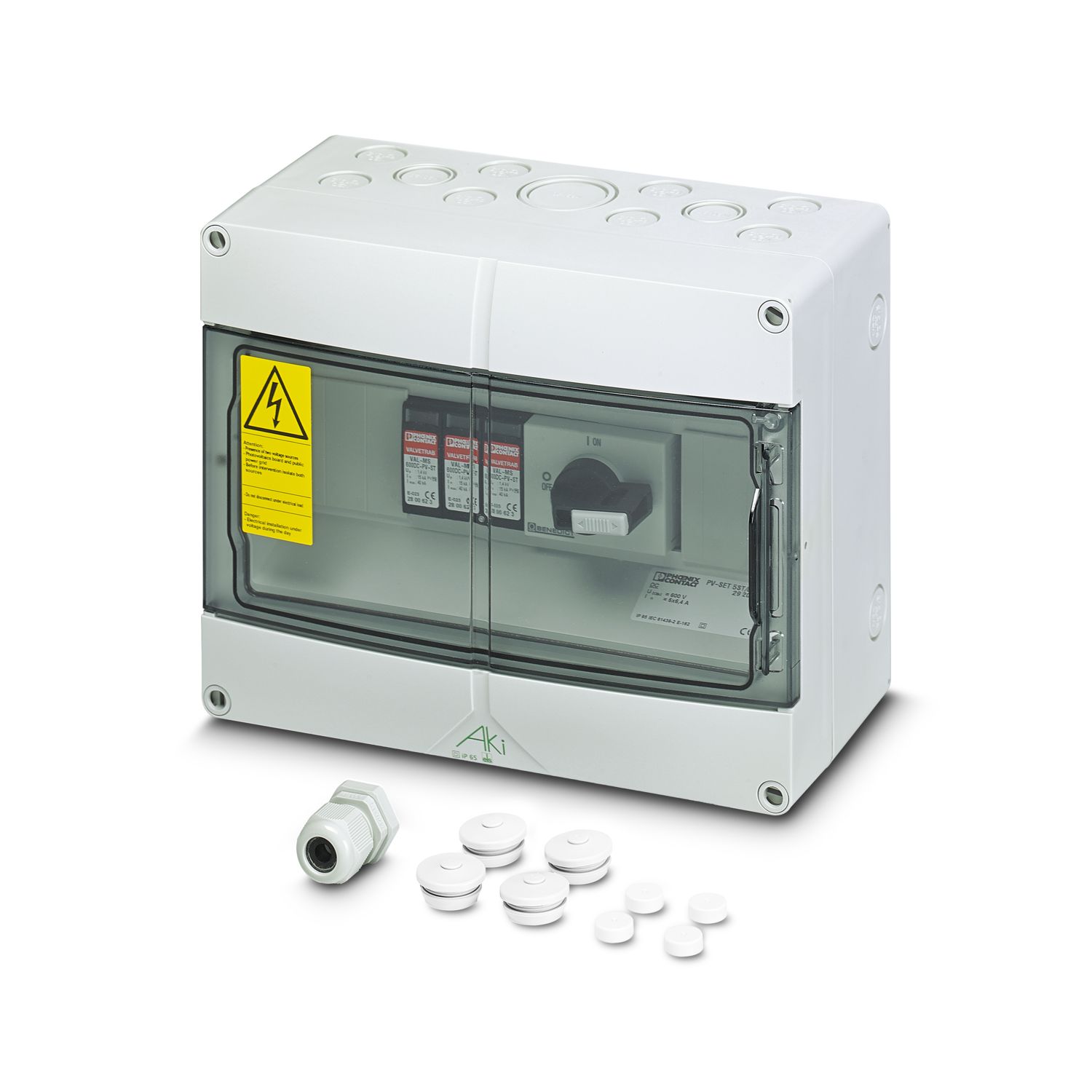

PV-SET 5ST/600DC
-
Surge protection device set
2920780

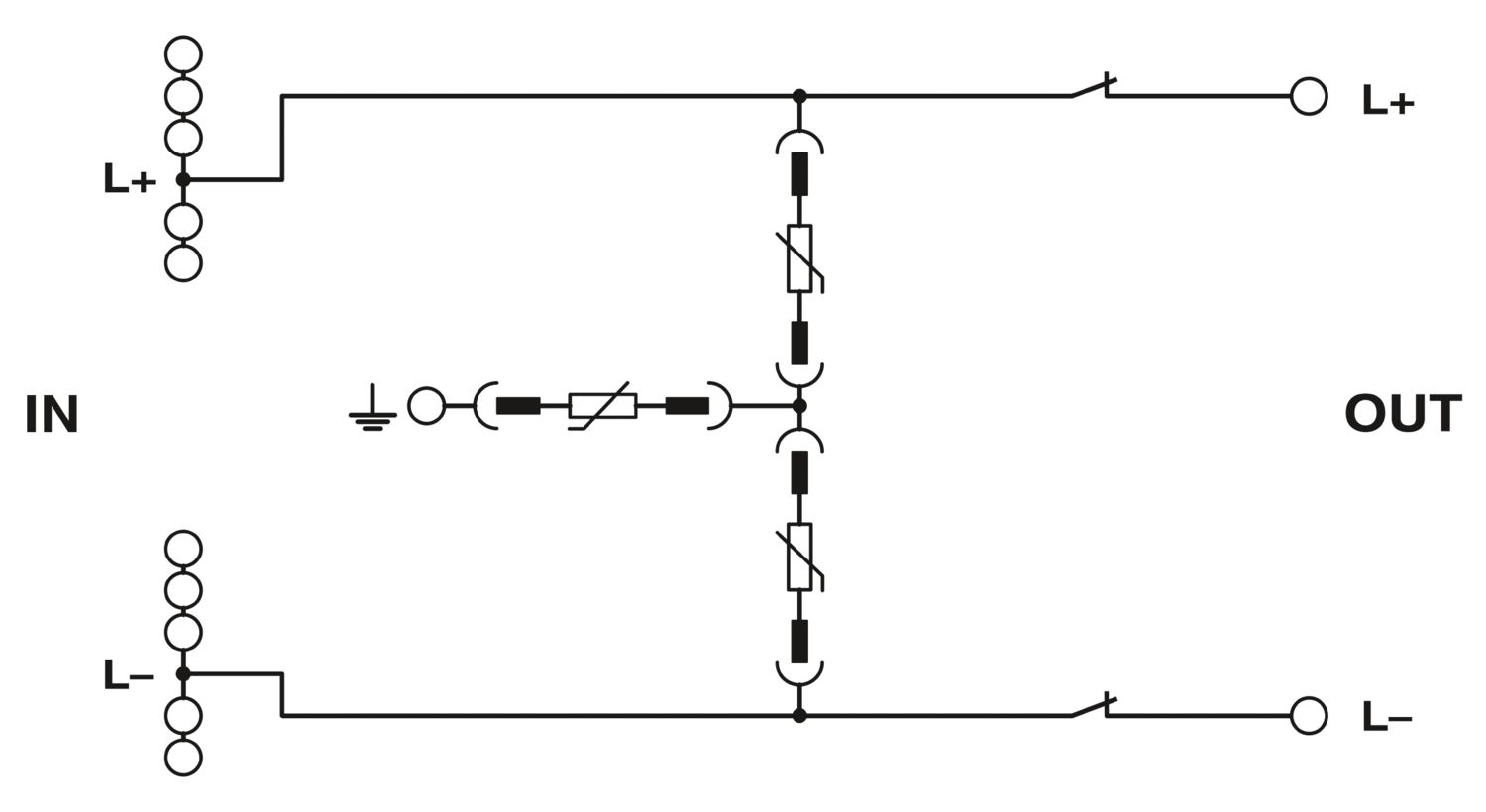

Surge protection in IP65 housing for the DC side of an inverter for five-string photovoltaic systems up to 600 V DC. Plug-in varistors with thermal disconnect device between L+, L-, and ground/PE. With generator disconnect and modular terminal blocks.
Product details

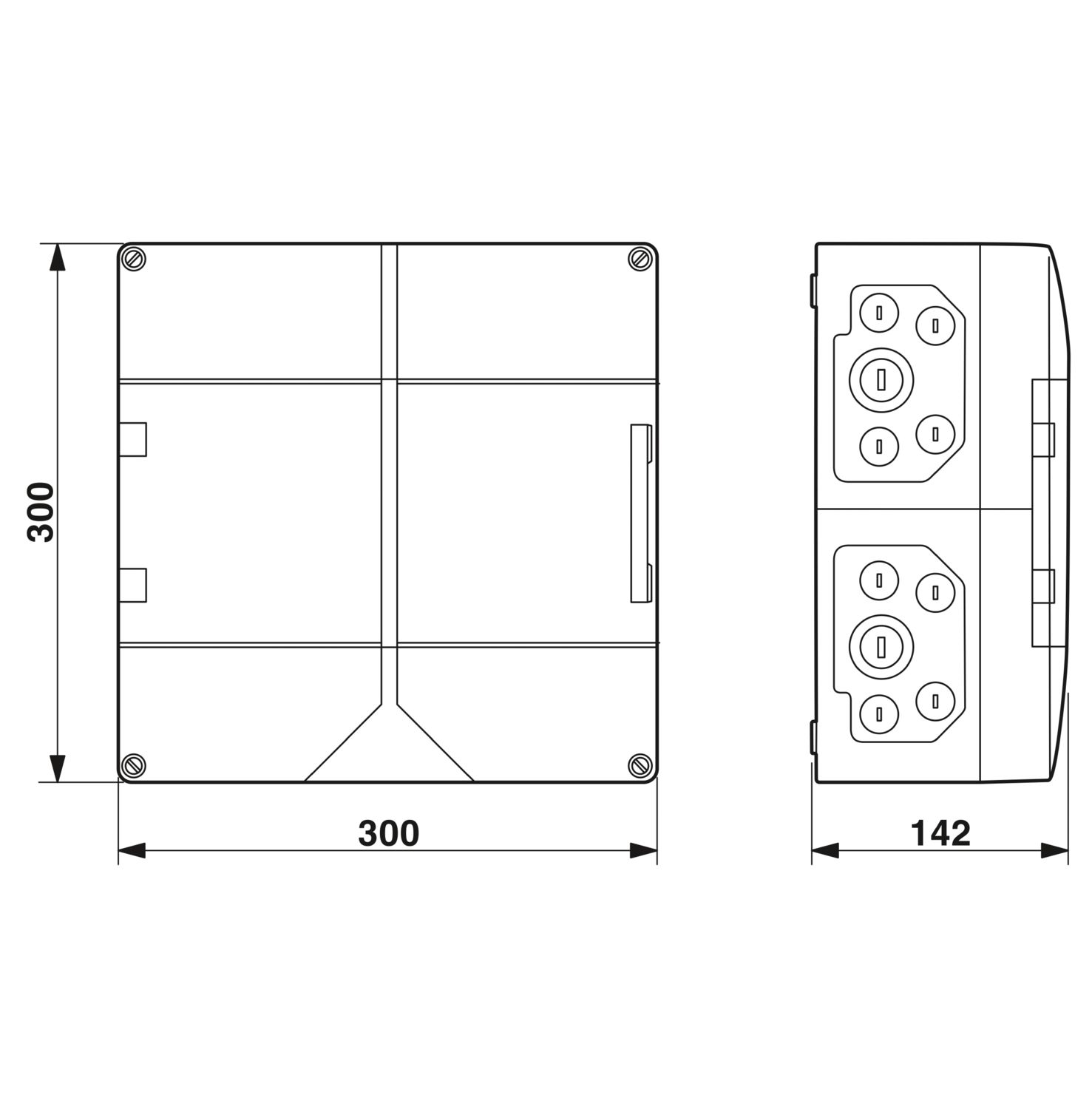

| IEC test classification | PV T2 |
| Type | Installation housing |
| Surge protection fault message | optical |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| Fuse | 5x 6.4 A DC |
| Dimensional drawing |
|
| Width | 250 mm |
| Height | 200 mm |
| Depth | 122 mm |
| Horizontal pitch | 12 Div. |
| Flammability rating according to UL 94 | V2 (Gehäuse / Deckel) |
| Cover material | Polycarbonate, transparent |
| Housing material | Polycarbonate, glass-fiber-reinforced |
| Connector material | PA |
| Direction of action | (L+)-PE & (L-)-PE & (L+)-(L-) |
| Protective conductor current IPE | ≤ 20 µA (DC) |
| ≤ 300 µA (AC) | |
| Standby power consumption PC | ≤ 20 mVA |
| Nominal discharge current In (8/20) µs | 15 kA |
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Total discharge current ITotal (8/20) µs | 40 kA |
| Voltage protection level Up (L+) - (L-) | ≤ 2.7 kV |
| Voltage protection level Up (L+/L-) - PE | ≤ 2.7 kV |
| Response time tA | ≤ 25 ns |
| Max. backup fuse with branch wiring | not required |
| Protective circuit DC voltage side (DC) | |
| Rated surge voltage resistance Uimp | 6 kV |
| Short-circuit current ISCSTC | 5x 6.4 A |
| Open-circuit voltage UOCSTC | 500 V DC (Solar generator) |
| Maximum discharge current Imax (8/20) µs | 40 kA |
| Response time tA | ≤ 25 ns |
| Total discharge current ITotal (8/20) µs | 40 kA |
| Max. backup fuse with branch wiring | not required |
| Nominal discharge current In (8/20) µs | 15 kA |
| Maximum continuous operating voltage UCPV | 600 V DC |
| Protective conductor current IPE | ≤ 20 µA (DC) |
| ≤ 300 µA (AC) | |
| Voltage protection level Up (L+) - (L-) | ≤ 2.7 kV |
| Voltage protection level Up (L+/L-) - PE | ≤ 2.7 kV |
| Standby power consumption PC | ≤ 20 mVA |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP65 | |
| Ambient conditions | A, B |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Altitude | max. 2000 m |
| Air clearances and creepage distances | |
| Standards/regulations | EN 50539-11 |
| Standards/specifications | IEC 61439-2 |
| Note | 2011 |
| Standards/specifications | EN 61439-2 |
| Note | 2011 |
| Standards/specifications | EN 50539-11 |
| Note | Surge protection |
| Mounting type | Surface/Panel mounting |
| Mounting position | Connections downward |
