PTFIX 1,5-KNX-NS35AD - Function distribution block

1187193

Function distribution block, for KNX bus in building installation, individual block is bridged internally, color in accordance with EIB cable coding, arrangement: in pairs, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 24, connection method: Push-in connection, cross section: 0.14 mm² - 2.5 mm², mounting type: NS 35/7,5, NS 35/15

Product details

Set consists of

Product type	Distributor terminal block
Number of connections	24
Number of rows	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.56 W

Number of connections per level	24
Nominal cross section	1.5 mm²
Rated cross section AWG	14
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A1 / B1
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Cross section AWG	26 ... 14 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 1.5 mm²
Nominal current	17.5 A
Maximum load current	22 A
Maximum total current	26 A
Nominal voltage	500 V
Connection cross sections directly pluggable
Conductor cross section rigid	0.34 mm² ... 2.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 1.5 mm²

Width	27.6 mm
Height	43.1 mm
Depth	21.4 mm
Depth on NS 15	26.9 mm
Depth on NS 35/7,5	28.9 mm
Depth on NS 35/15	36.4 mm

Color	multicolored
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA

Mechanical data
Open side panel	No

Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	1187193
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	BEA
Product key	BEA191
GTIN	4063151230234
Weight per piece (including packing)	24.57 g
Weight per piece (excluding packing)	22.08 g
Customs tariff number	85369010
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	500 V	24 A

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PTFIX 1,5-KNX-NS35AD - Function distribution block

1187193

Product details

ECLASS

ETIM

UNSPSC

BV

DNV

EAC

Compatible products

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PTFIX 1,5-KNX-NS35AD - Function distribution block 1187193

Product details

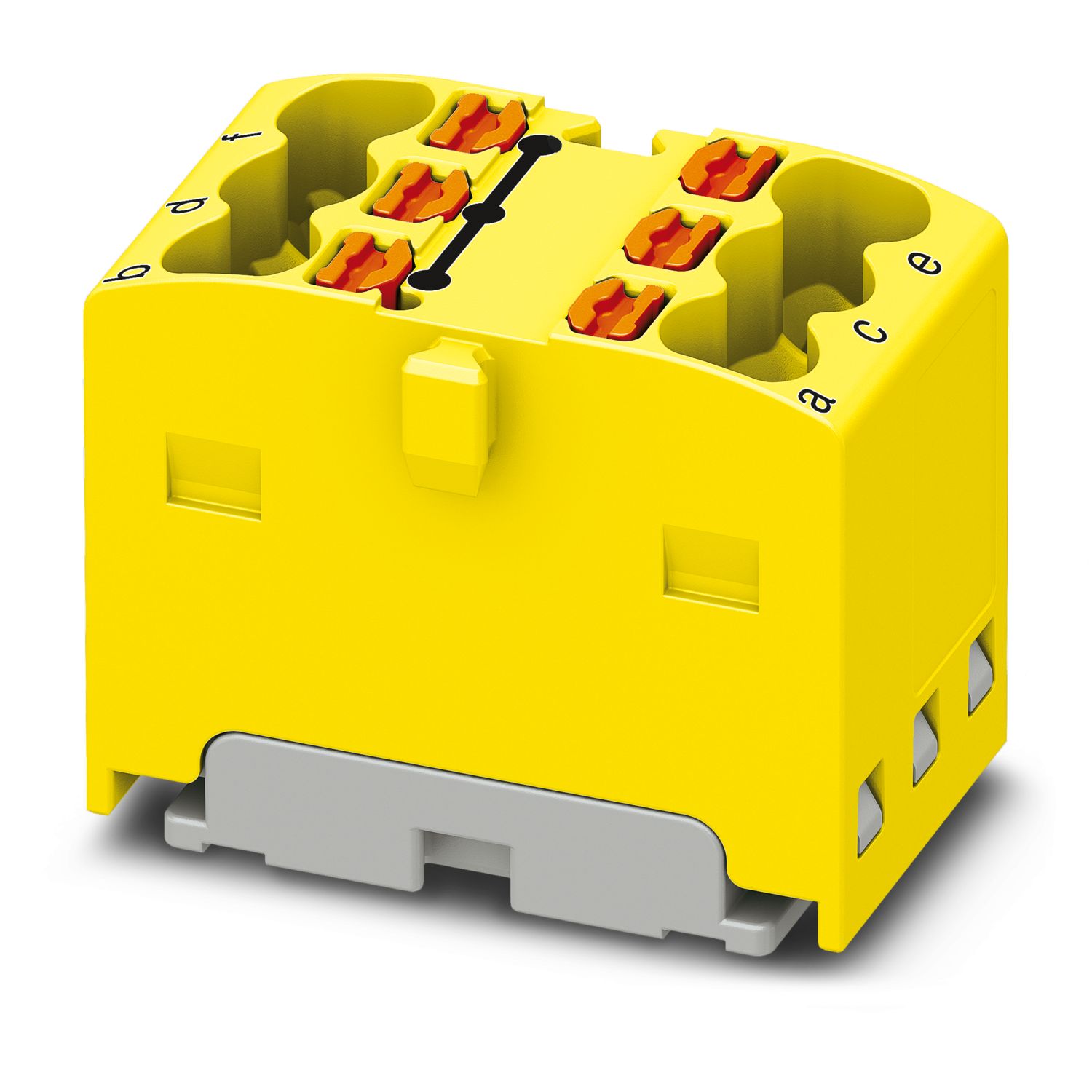

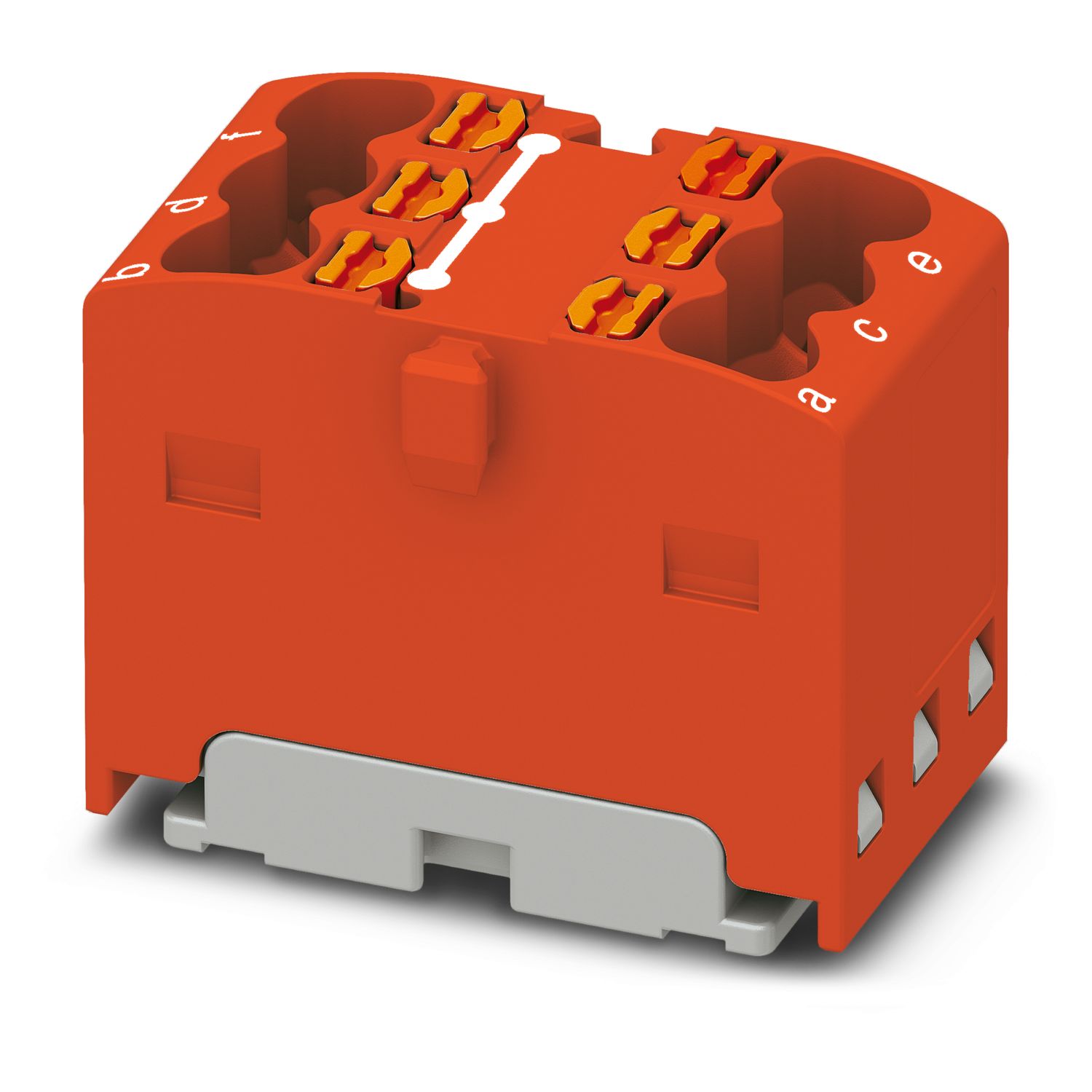

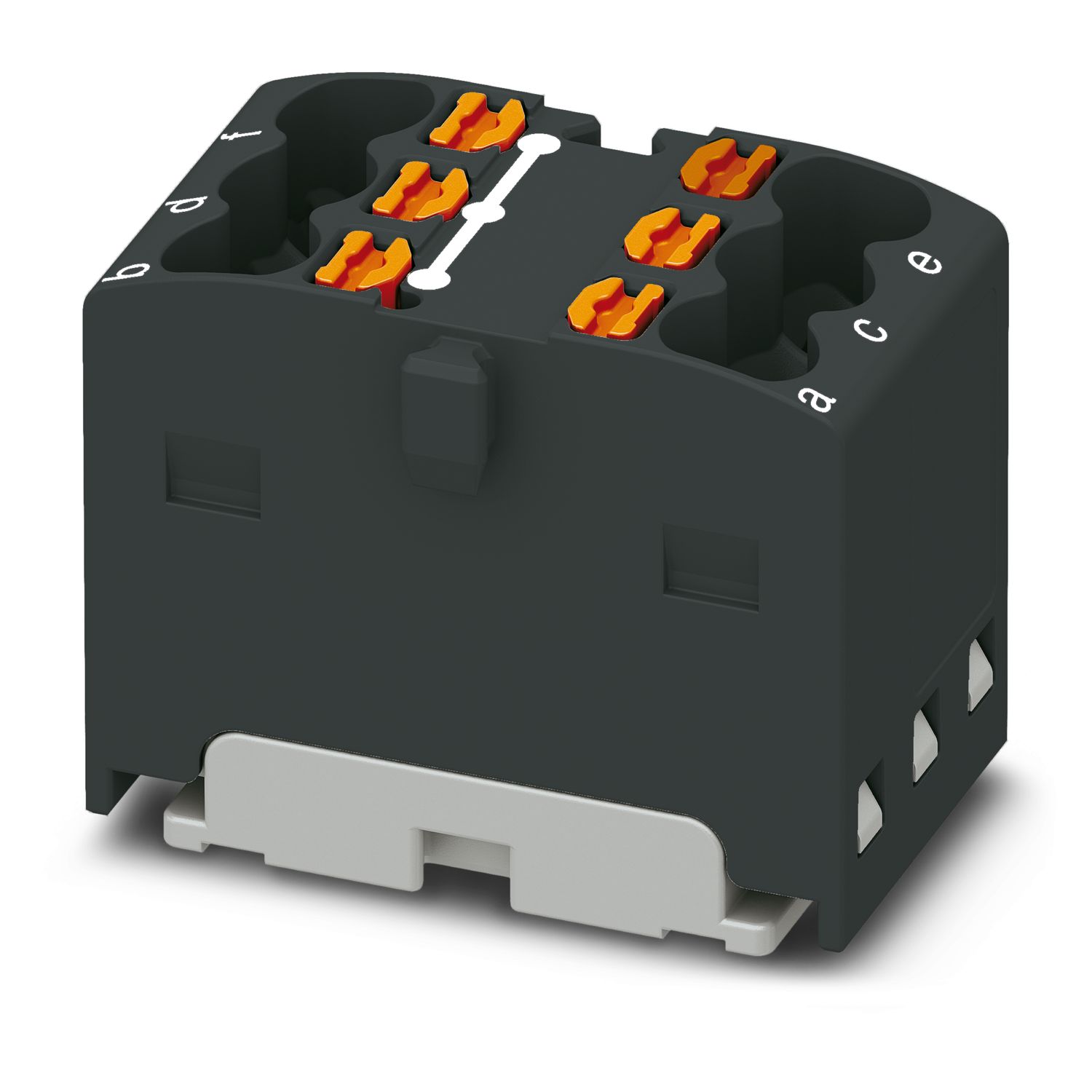

PTFIX 6X1,5 RD - Distribution block 3002765
