SACC-E-M12MS-8CON-M12 PSCUP - Device connector front mounting
1436440

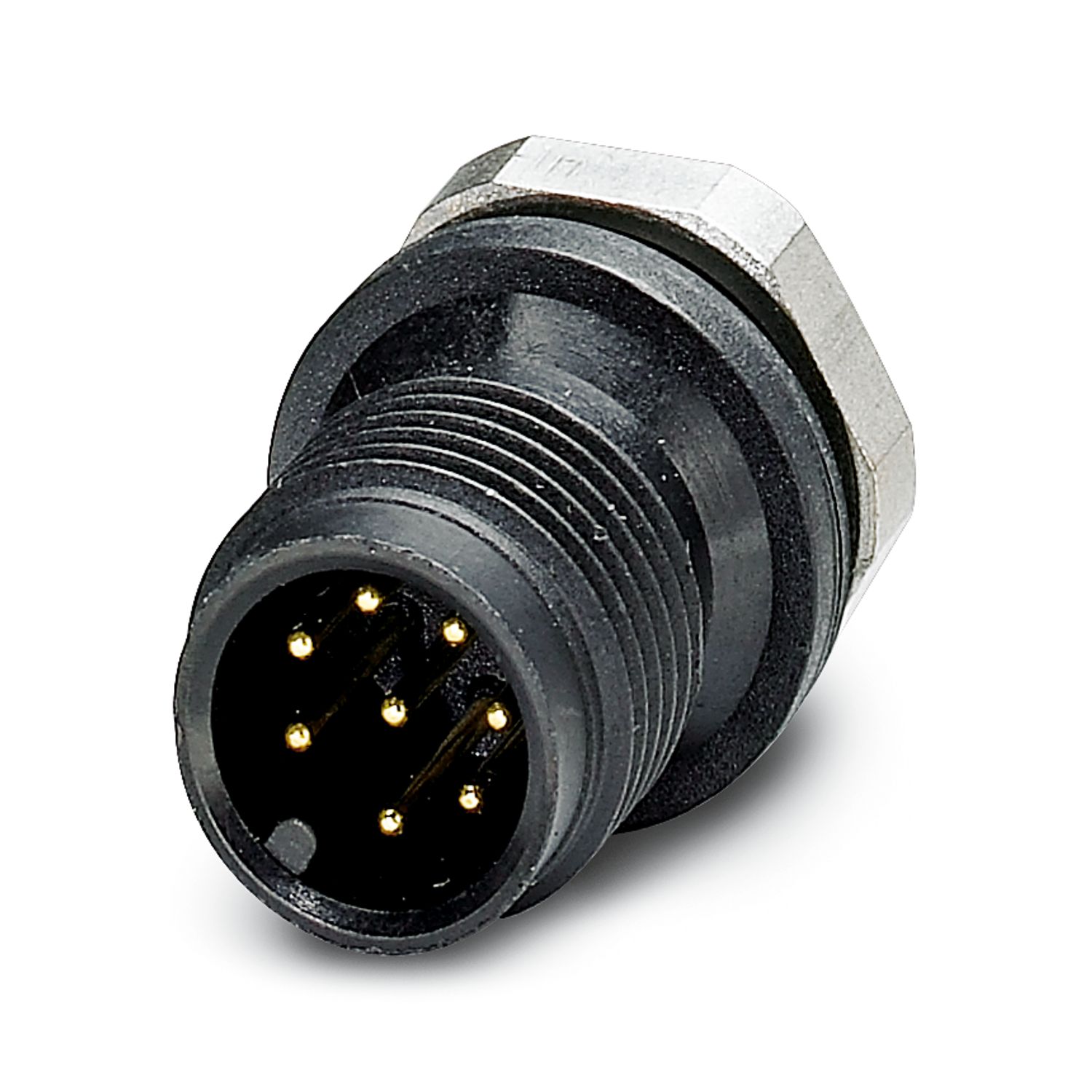

Sensor/actuator flush-type connector, socket, 8-pos., M12, A-coded, front/screw mounting with M12 thread, with solder cups, plastic version
Product details
Notes on operation
The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Mounting type
Front mounting M12 x 1 With flat nut
Assembly note
With flat nut
Product type
Circular connectors (device side)
Number of positions
8
Shielded
no
Coding
A
Thread type
M12
Insulation characteristics
Overvoltage category
II
Degree of pollution
3
Color
black
Flammability rating according to UL 94
HB
Seal material
Viton
Contact material
CuZn
Contact surface material
Au
Contact carrier material
PA 6.6
Material for screw connection
PA 6.6
Rated surge voltage
0.8 kV
Contact resistance
≤ 3 mΩ
Insulation resistance
≥ 100 MΩ
Nominal voltage UN
30 V
Nominal current IN
2 A
Conductor connection
Connection method
Solder cup
Contact connection type
Pin
Conductor cross section flexible
... 0.25 mm²
Tightening torque
0.4 Nm ... 0.6 Nm (Installation-side)
Mechanical data
Insertion/withdrawal cycles
> 100
Connection 1
Head design
Pin
Head cable outlet
straight
Head thread type
M12
Coding
A
Ambient conditions
Degree of protection
IP67
IP67
Ambient temperature (operation) (male connector/female connector)
-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
UL Type Rating
Type 4 (indoor use only)
Standard designation
M12 circular connector
Standards/specifications
according to IEC 61076-2-101
Item number
1436440
Packing unit
20 pc
Minimum order quantity
20 pc
Sales key
ABQ
Product key
ABQEEI
Catalog page
Page 241 (C-2-2013)
GTIN
4046356438391
Weight per piece (including packing)
4.02 g
Weight per piece (excluding packing)
3.973 g
Customs tariff number
85366990
Country of origin
DE
ECLASS
ECLASS-13.0
27440110
ETIM
ETIM 9.0
EC003568
UNSPSC
UNSPSC 21.0
39121400
cULus Recognized
Approval ID: E221474-20070307
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
