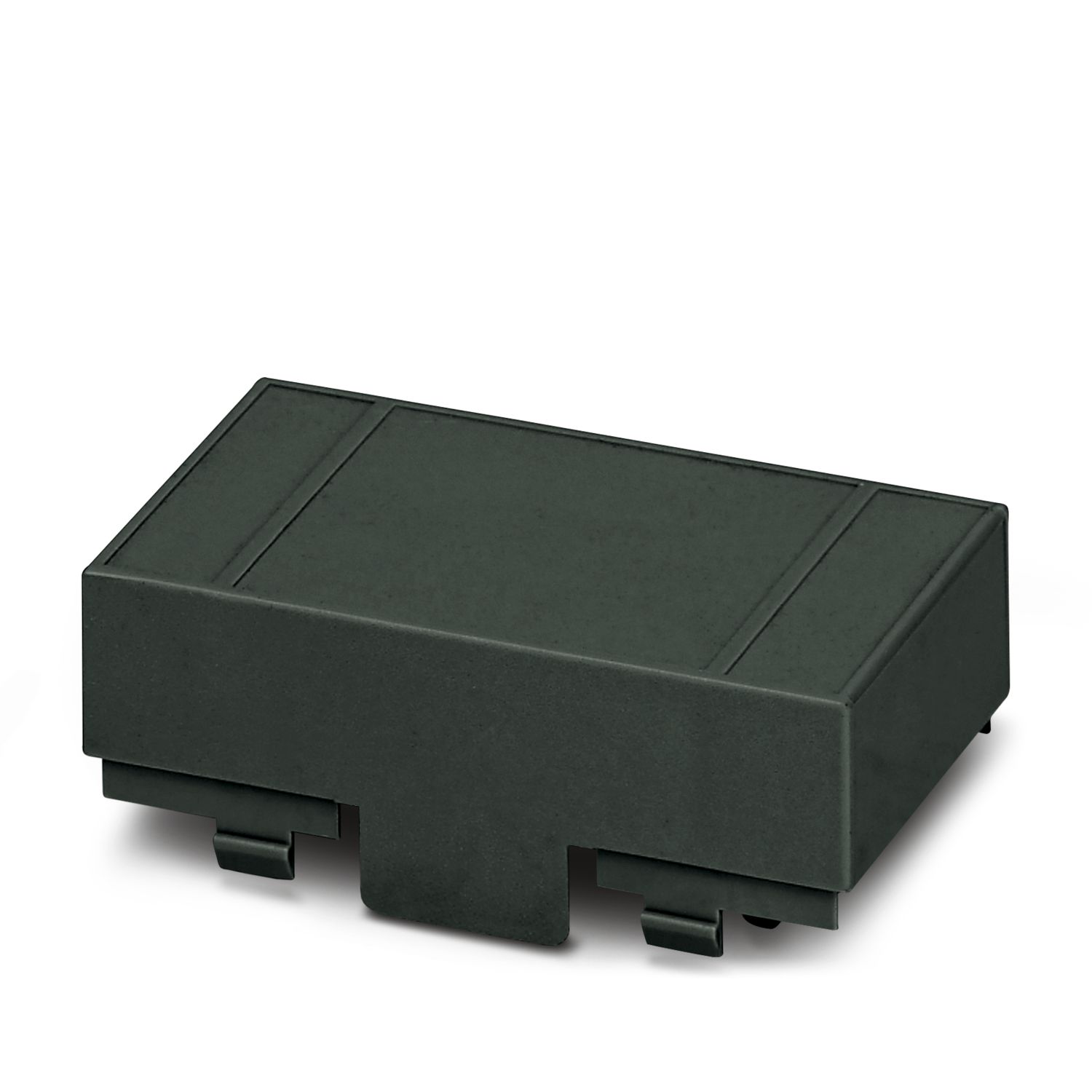

EG 45-AG/PC BK
-
Upper housing part
2869508
Component housing, Cover, closed, width: 45 mm, height: 75 mm, color: black (similar RAL 9005)
Product details
| Product type | Upper housing part |
| Housing type | Component housing |
| Housing series | EG |
| Product family | EG..-A |
| Number of positions | 16 |
| Type | Cover, closed |
| Ventilation openings present | no |
| Dimensional drawing |
|
| Width | 45 mm |
| Height | 75 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Surface characteristics | untreated |
| Ambient conditions | |
| Degree of protection | IP20 |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | Snap in |
Compatible products
Your advantages
Tool-free mounting
