AB-SK 65-D
-
Support bracket
3026900
Support bracket, Bracket for busbars, set every 20 cm, width: 8.2 mm, height: 150 mm, number of positions: 2, color: gray, mounting type: DIN rail mounting
Product details
| Product type | Support bracket |
| Number of positions | 2 |
| Nominal current IN | 0 A |

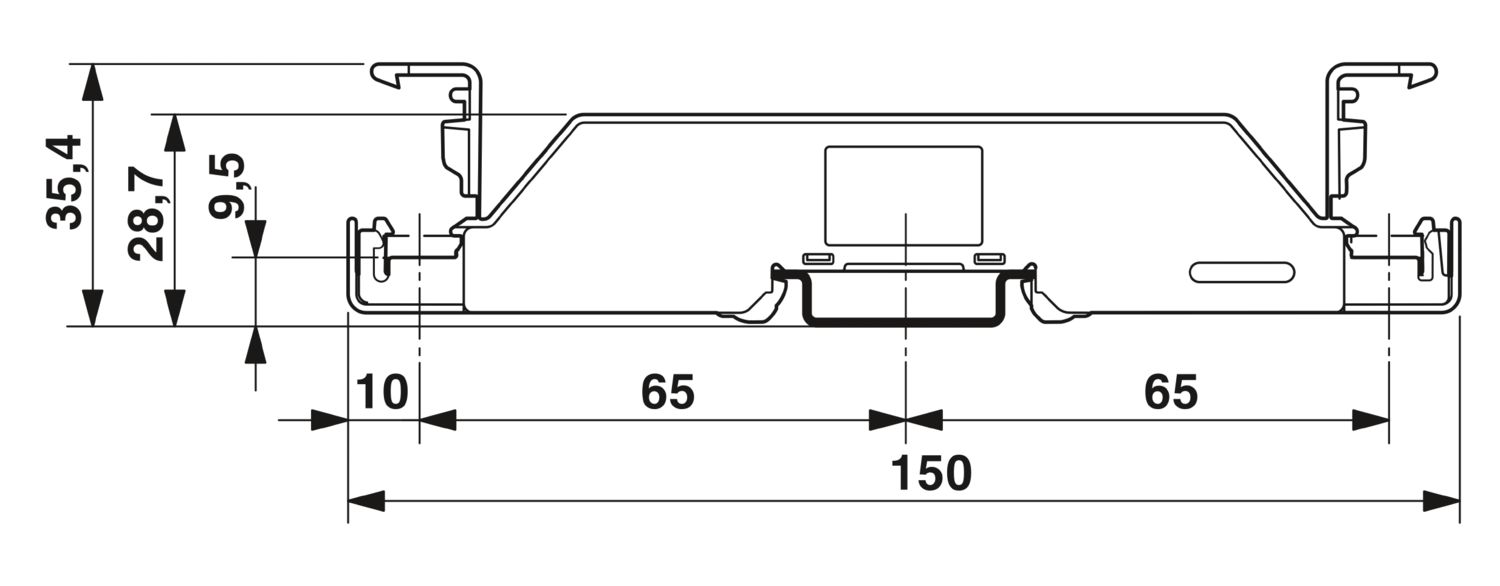

| Dimensional drawing |
|
| Width | 8.2 mm |
| Height | 150 mm |
| Depth on NS 35/7,5 | 28.7 mm |
| Depth on NS 35/15 | 36.2 mm |
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | DIN rail mounting |
Your advantages
The double shield supports are particularly suitable for space-saving conductor connection for terminal blocks and devices with lateral cable entry
For mounting SK shield connection clamps
