DC-B 6-HD-M25-M
-
Stackable housing
1602054
DUPLICON, aluminum stackable housing for DUPLICON contact inserts, type B6, IP67 protection, with two locking latches, gasket and an M25 cable screw connection thread (without cable screw connection)
Product details
| Housing type | Stackable housing |
| Type | DC-B6 |
| Type of the screw connection | with M25 thread |
| Cable outlet | lateral |
| Pg screw connection | none |

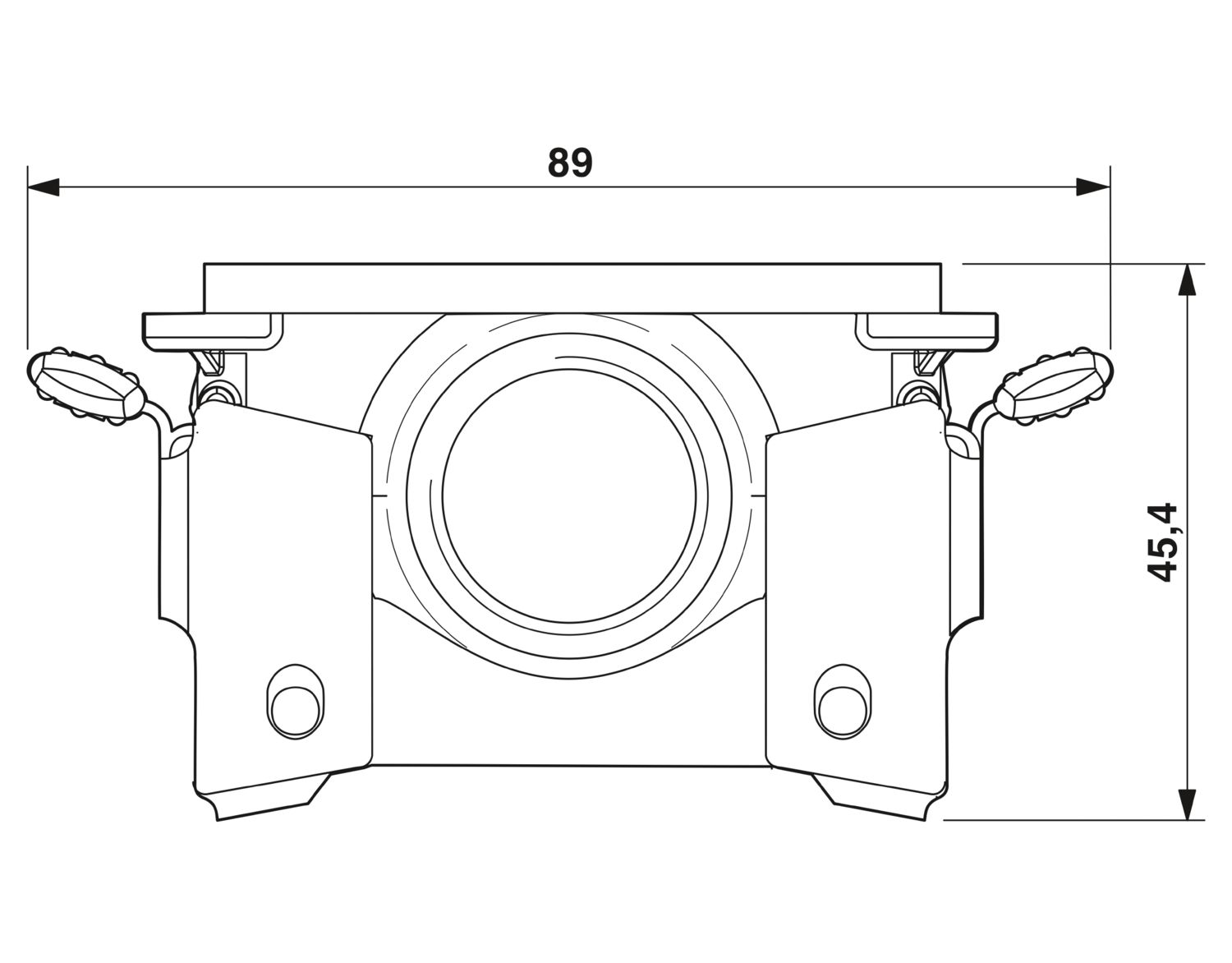

| Dimensional drawing |
|
| Width | 45.4 mm |
| Height | 37 mm |
| Length | 89 mm |
| Color | pearl gray |
| Material Housing | Die-cast aluminum |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Locking latch material | Stainless steel |
| Mechanical data | |
| Type of the screw connection | with M25 thread |
| Locking type | Latch |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP66 | |
| IP67 | |
| IP65/IP66/IP67 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 125 °C |
