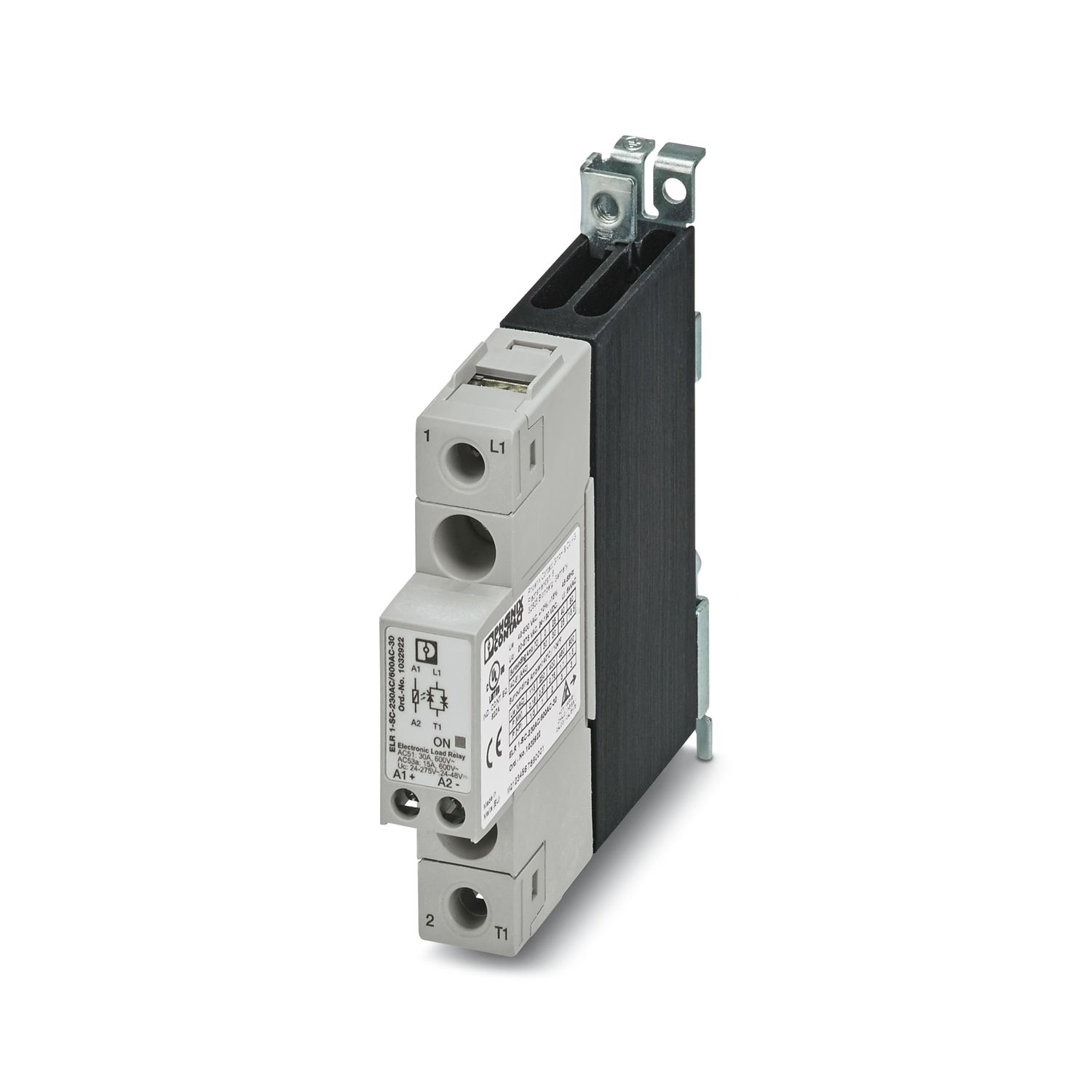

ELR 1-SC-230AC/600AC-30
-
Solid-state contactor
1032922
Single-phase solid-state contactor, input voltage: 230 V AC, output current: 30 A, zero voltage switch
Product details
| Product type | Solid-state contactor |
| Number of phases | 1 |
| Maximum power dissipation for nominal condition | 28 W |
| Mains type | 1-phase |
| Control | |
| Input name | Control input |
| Rated actuating voltage UC | 230 V AC |
| Triggering voltage range | 24 V AC ... 275 V AC |
| 24 V DC ... 190 V DC | |
| Rated actuating current IC | approx. 17 mA |
| Switching threshold | ≤ 5 V AC/DC (“0” signal) |
| ≥ 20 V AC/DC (“1” signal) | |
| Operating voltage display | Green LED |
| Transmission frequency | 6 Hz |
| Load output | |
| Operating voltage range | 42 V AC ... 660 V AC |
| Rated operating current at AC-51 | 30 A |
| Rated operating current at AC-53a | 15 A (TA = 25 °C) |
| 5 A (TA = 40 °C) | |
| Peak offstate voltage | 1200 V |
| Mains frequency | 45 Hz |
| 65 Hz | |

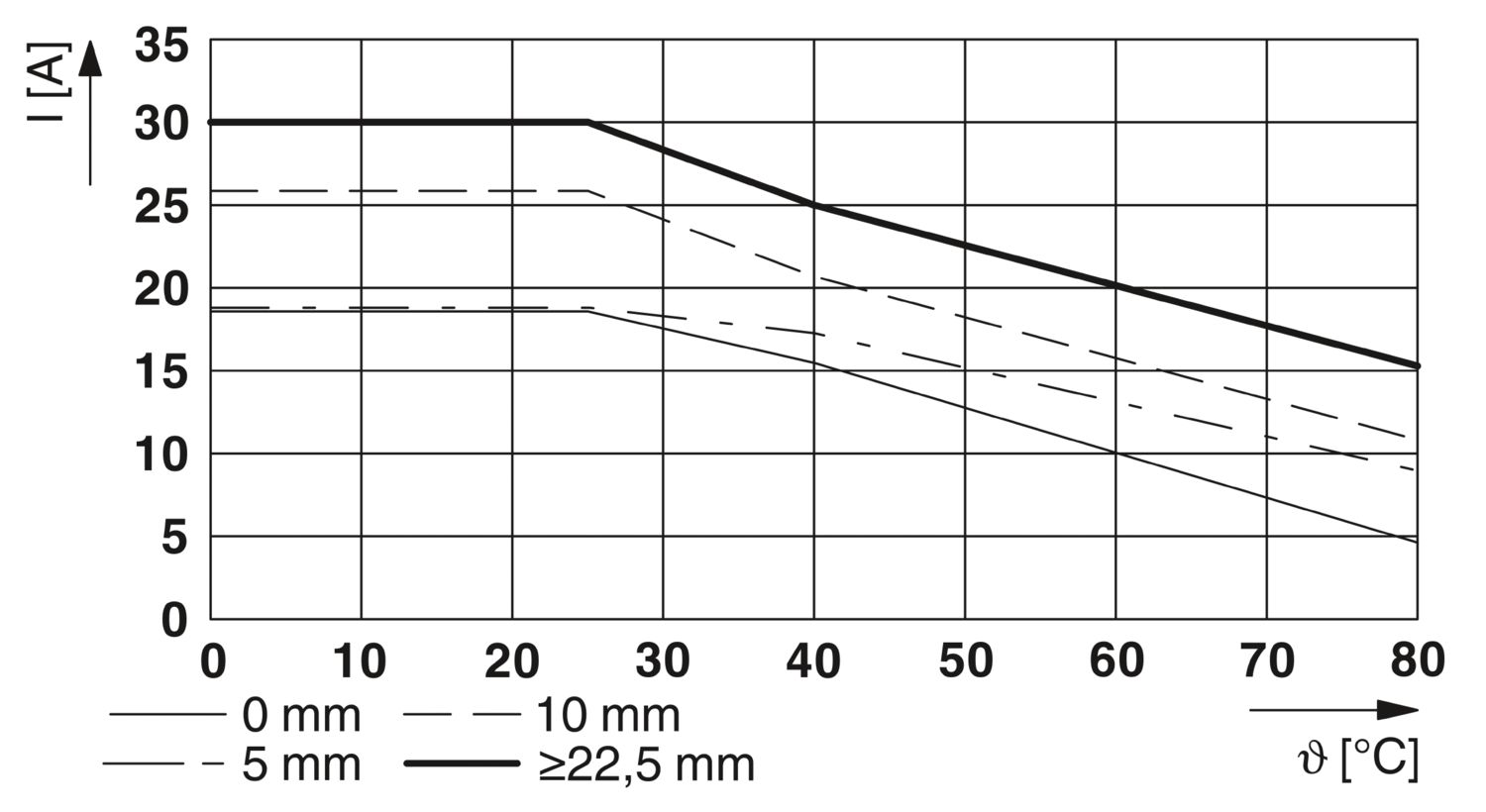

| Load current range | 250 mA ... 30 A (see to derating) |
| Leakage current | < 3 mA (In off state) |
| Residual voltage | < 1 V |
| Surge current | 600 A (t = 10 ms) |
| Max. load value | 1800 A2s |
| Protective circuit | Varistor |
| Phase angle cos phi min | 0.5 |
| Control circuits | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section AWG | 18 ... 12 |
| Load circuit | |
| Connection method | Screw connection |
| Stripping length | 12 mm |
| Screw thread | M4 |
| Conductor cross section rigid | 2.5 mm² ... 6 mm² |
| Conductor cross section flexible | 1 mm² ... 4 mm² |
| Conductor cross section AWG | 14 ... 10 |
| Protective conductor connection | |
| Connection method | Ring cable lug |
| Screw thread | M5 |
| Tightening torque | 1.5 Nm |
| Operating voltage display | Green LED |
| Width | 18 mm |
| Height | 110 mm |
| Depth | 103 mm |
| Color | gray (RAL 7042) |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards/regulations | |
| Standards/regulations | EN 61000-4-2 |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 61000-4-5 | |
| EN 55011 | |
| Mounting type | DIN rail mounting |
| Assembly note | can be aligned with ≥ 22.5 mm spacing |
| Mounting position | Vertical (horizontal DIN rail) |
| Item number | 1032922 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | DK6831 |
| Product key | DK6831 |
| Catalog page | Page 49 (C-5-2019) |
| GTIN | 4055626536477 |
| Weight per piece (including packing) | 265 g |
| Weight per piece (excluding packing) | 259 g |
| Customs tariff number | 85364900 |
| Country of origin | MT |
ECLASS
| ECLASS-13.0 | 27371003 |
ETIM
| ETIM 9.0 | EC000066 |
UNSPSC
| UNSPSC 21.0 | 39122300 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes |
| Exemption | 6(c), 7(a), 7(c)-I |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-25
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
