RC-00000008049 - Sleeve housing for cable connector
1592641

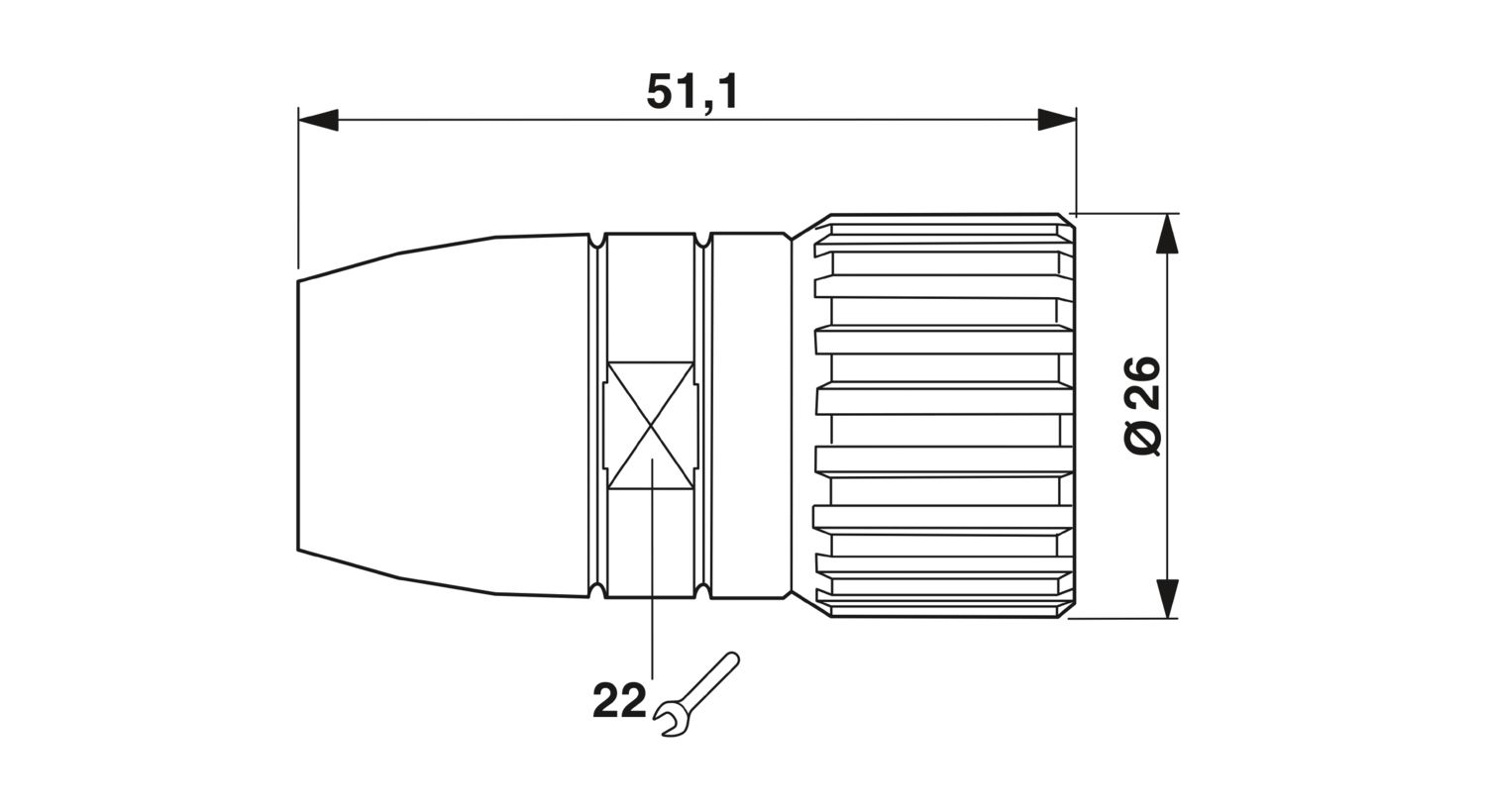

Sleeve housing for cable connector, straight, M23, shielded: yes, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240251
Product details
Order information:
Order contact inserts and cable clamping/shield accessories separately
Product type
Sleeve housings
Application
Signal
Shielded
yes
Thread type
M23
Housing material
Metal
Type
straight
Ambient conditions
Degree of protection
IP67
Ambient temperature (operation)
-20 °C ... 125 °C
Altitude
2000 m
Item number
1592641
Packing unit
20 pc
Minimum order quantity
20 pc
Note
Made to order (non-returnable)
Sales key
ABRAFE
Product key
ABRAFE
GTIN
4046356192040
Weight per piece (including packing)
92.7 g
Weight per piece (excluding packing)
66.13 g
Customs tariff number
85366990
Country of origin
DE
ECLASS
ECLASS-13.0
27440224
ETIM
ETIM 9.0
EC003556
UNSPSC
UNSPSC 21.0
39121400
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
