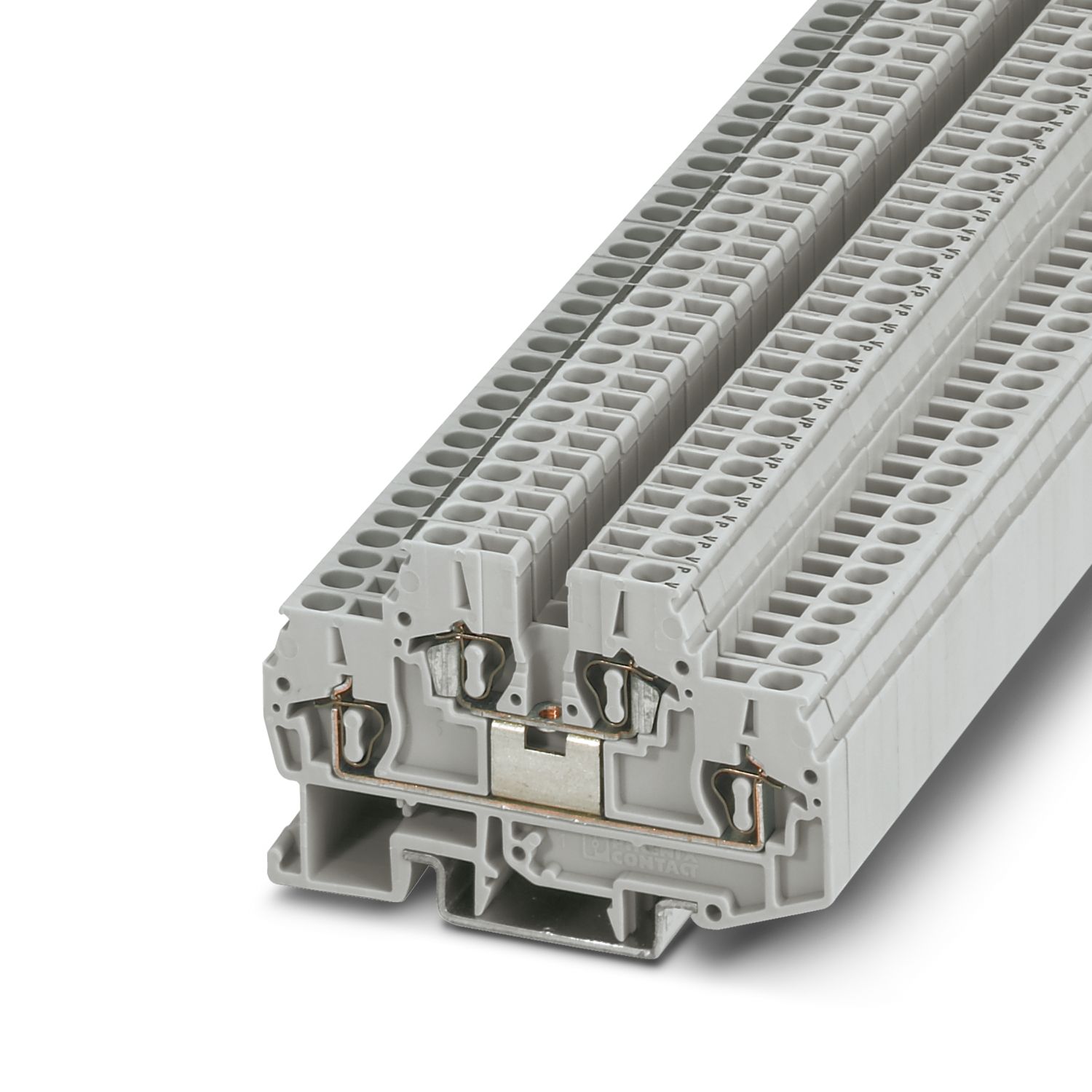

MZFKK 1,5-PV - Mini feed-through terminal block - 3029826

Product type	Miniature terminal block
Number of connections	4
Number of rows	2
Potentials	2
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	6 kV

Number of connections per level	2
Nominal cross section	1.5 mm²
1st and 2nd level
Connection method	Spring-cage connection
Stripping length	9 mm
Connection in acc. with standard	IEC 60947-7-1
Conductor cross-section rigid	0.14 mm² ... 2.5 mm²
Cross section AWG	26 ... 14 (converted acc. to IEC)
Conductor cross-section flexible	0.14 mm² ... 1.5 mm²
Conductor cross-section, flexible [AWG]	26 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 1.5 mm²
Flexible conductor cross-section (ferrule with plastic sleeve)	0.14 mm² ... 1.5 mm²
Nominal current	17.5 A
Maximum load current	24 A (with a 2.5 mm² conductor cross-section)
Nominal voltage	500 V
Nominal cross section	1.5 mm²

Width	5.2 mm
End cover width	1 mm

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 1.5 mm²	0.18 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 (+/- 2) rpm
Revolutions	135
Conductor cross-section/weight	0.14 mm² / 0.2 kg
		1.5 mm² / 0.4 kg
		2.5 mm² / 0.7 kg
Result	Test passed

Aging
Temperature cycles	192
Result	Test passed
Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Shocks
Pulse shape	Half-sine
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)

Mounting type	NS 35/7,5
		NS 35/15
		NS 15

Item number	3029826
Packing unit	50 pc
Minimum order quantity	1 pc
Product key	BE2114
GTIN	4017918187132
Weight per piece (including packing)	16 g
Weight per piece (excluding packing)	16 g
Country of origin	DE

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

MZFKK 1,5-PV - Mini feed-through terminal block

3029826

Product details

Compatible products

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Mechanical data
Open side panel	Yes

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

MZFKK 1,5-PV - Mini feed-through terminal block 3029826

Product details

Compatible products

FBST 10-5 - Plug-in bridge 3025147

FBST 3-5 - Plug-in bridge 3025079

FBST 2-5 - Plug-in bridge 3025066

FBRI 2-5 N - Fixed bridge 3000227

FBRI 3-5 N - Fixed bridge 3000201

FBRI 10-5 N - Fixed bridge 2770642

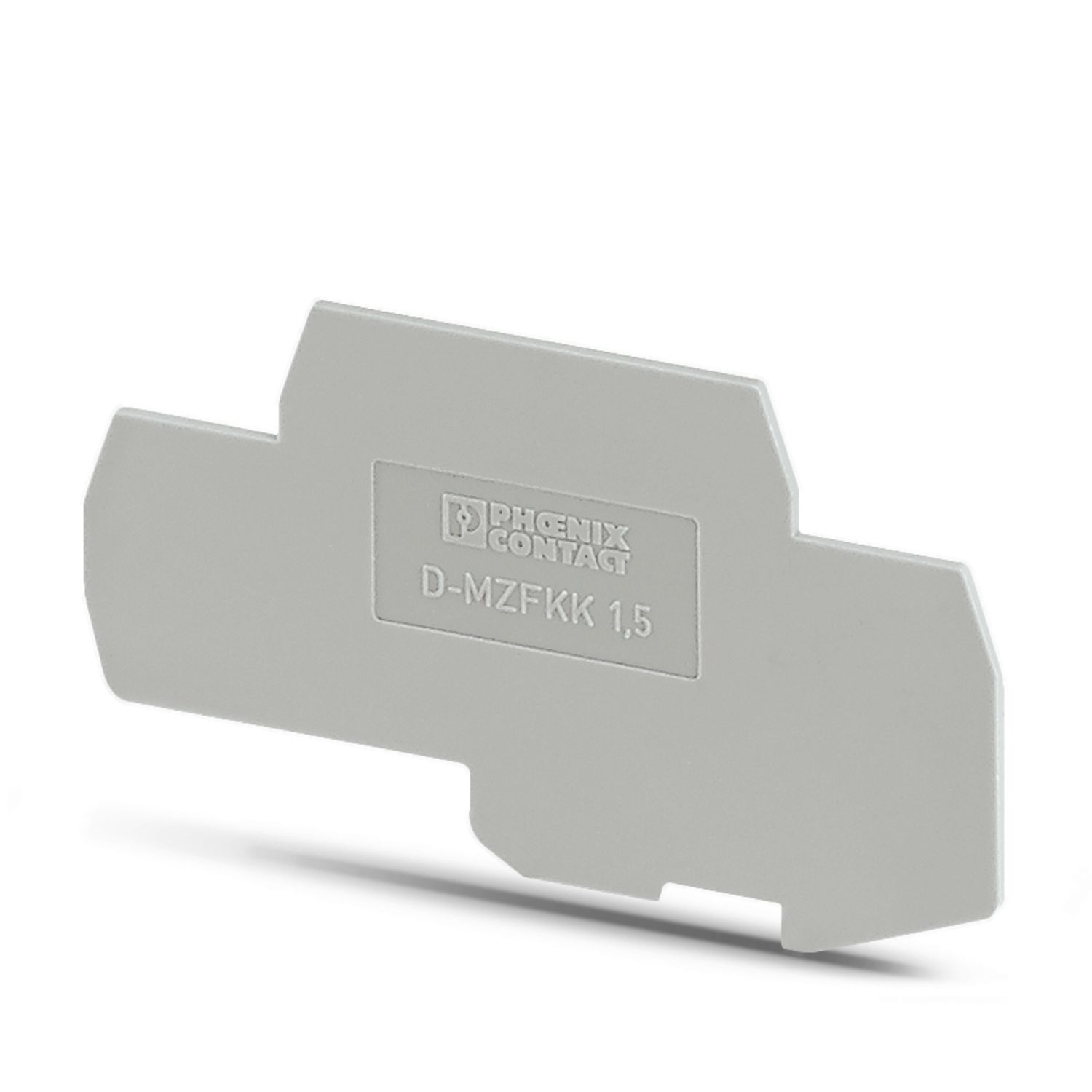

D-MZFKK 1,5 - End cover 3029839
