E1 S6 A 300X500X160
-
Junction box
0899040
Junction box, With flange plate fixing, below, material: Stainless steel, 316L/1.4404, surface resistance: brushed, silver-colored, 300 mm x 500 mm x 160 mm, type of locking: Screw-on cover, scope of supply - ATD: Mounting panel, Fixing angle with mounting screws, M12 grounding bolts, affixed externally, Installation notes, Flange plates, Mounting panel
Product details
| Product type | Terminal box |
| Scope of supply | Mounting panel |
| Fixing angle with mounting screws | |
| M12 grounding bolts, affixed externally | |
| Installation notes | |
| Flange plates | |
| Type | 21 |
| Insulation characteristics | |
| Protection class | I |
| Maximum power dissipation | 21 W (T6 up to 40 °C) |
| 13.1 W (T6 up to 55 °C) | |
| 7.8 W (T6 up to 65 °C) | |
| 28.9 W (T5 up to 40 °C) | |
| 21 W (T5 up to 55 °C) | |
| 15.8 W (T5 up to 65 °C) | |
| 34.1 W (T4 up to 40 °C) | |
| 16.4 W (T4 up to 55 °C) | |
| 21 W (T4 up to 65 °C) |

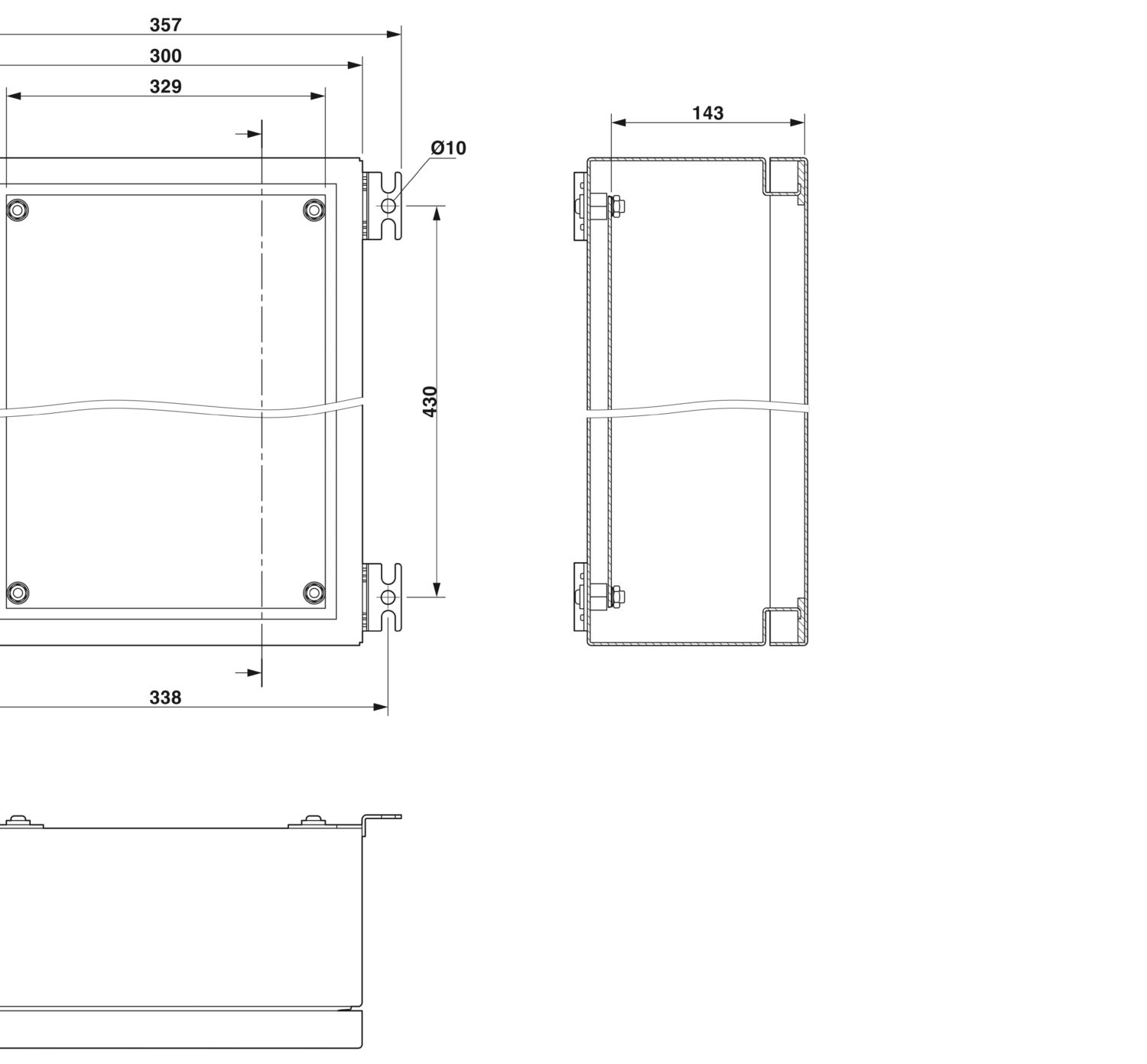

| Dimensional drawing |
|
| Width | 300 mm |
| Height | 500 mm |
| Depth | 160 mm |
| Clearance width, maximum DIN rail length | 244 mm |
| Max. material thickness | 1.5 mm |
| Color | silver-colored |
| Material | Stainless steel, 316L/1.4404 |
| Seal material | Silicon |
| Surface characteristics | brushed |
| Note | 240 grain |
| General | |
| Type of locking (GRP) | Screw-on cover Allen screws |
| Degree of protection (IP code) | |
| Degree of protection | IP66 |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 135 °C |
| Assembly note | External fixing clips |
Your advantages
Innovative product range of high-quality stainless steel housings as the basis for individual terminal boxes
Reduced assembly and approval effort thanks to ready-equipped terminal boxes
Flange plates possible on four sides of the housing, including seal protection
Housing adjustments using threads, bore holes, and rectangular cutouts with consideration given to normative specifications
