EAC
Approval ID: RU C-DE.BL08.B.00644cULus Recognized
Approval ID: E60425| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Use group B | ||||
| 300 V | 10 A | 28 - 12 | ||
| Use group C | ||||
| 150 V | 18 A | 28 - 12 | ||
| Use group D | ||||
| 300 V | 10 A | 28 - 12 | ||

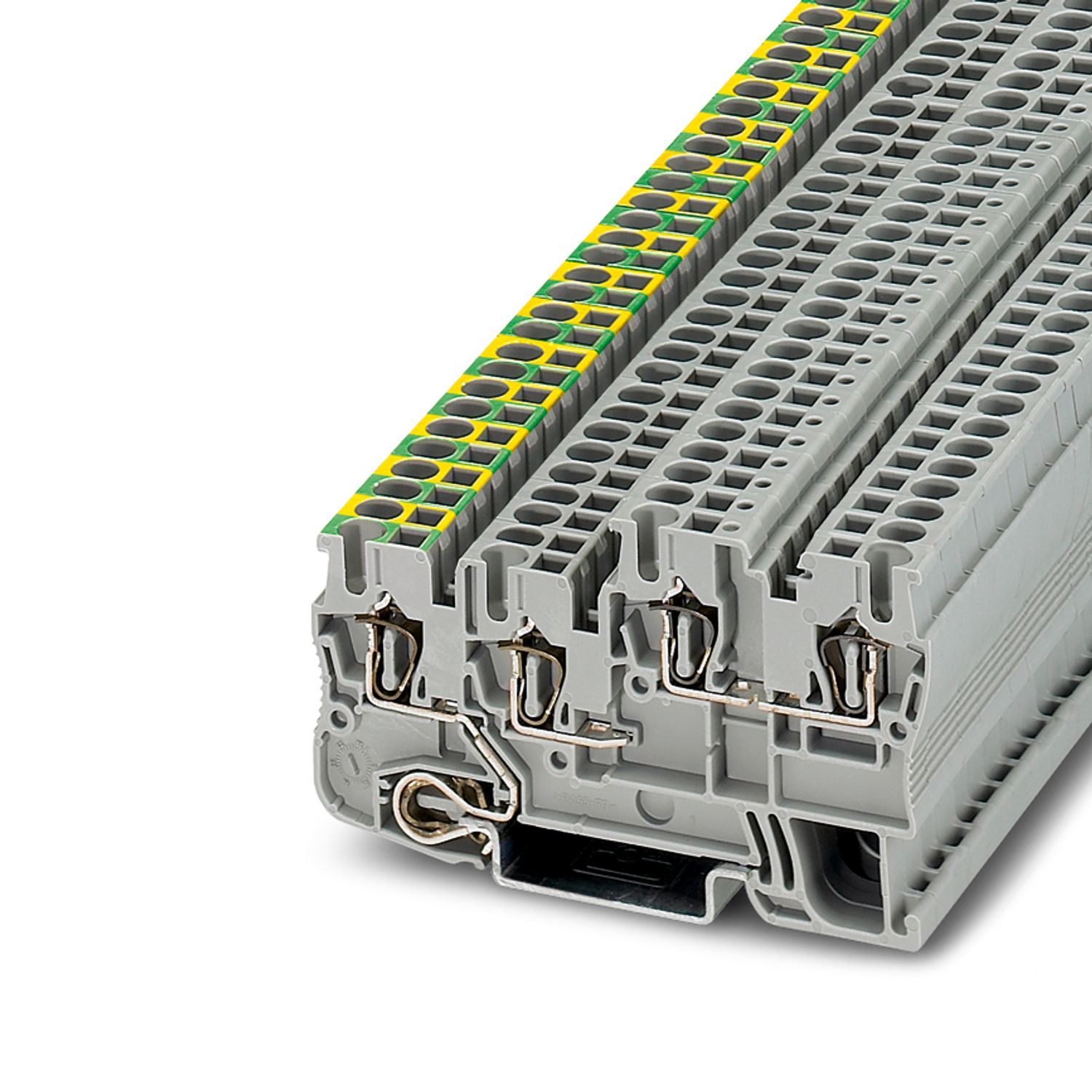

STIO 2,5/3-PE/B/L
-
Installation protective conductor terminal block
3209044

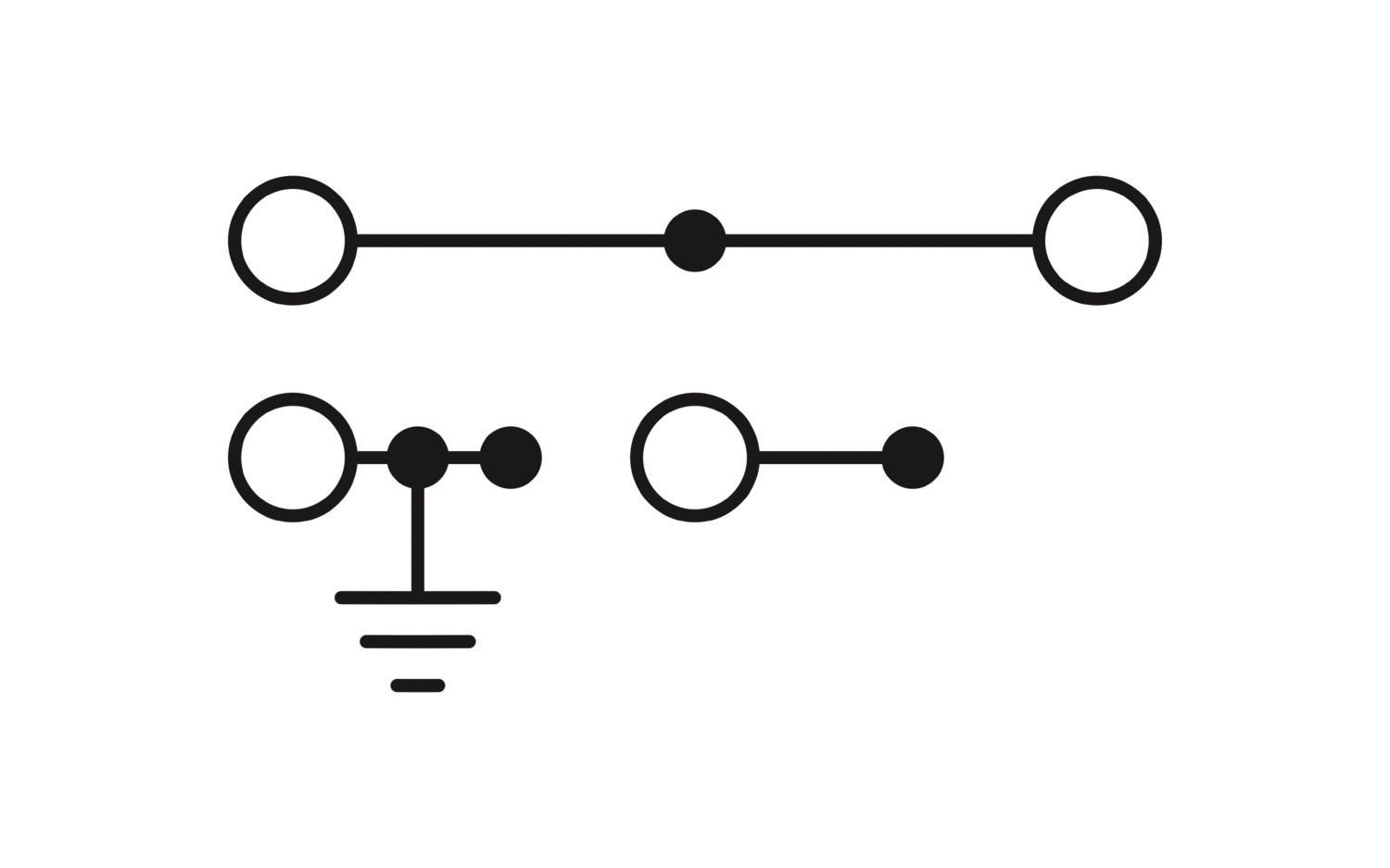

Installation protective conductor terminal block, nom. voltage: 250 V, nominal current: 18 A, number of connections: 4, connection method: Spring-cage connection, Rated cross section: 2.5 mm2, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
Product details
Your advantages
Three-conductor output terminal block of the same shape with PE connection in the lower level for wiring actuators
Power terminal blocks can be located at any point on the terminal strip for supply or extension purposes
Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system
Versions with LED for indicating the switching states
Potential is supplied via the STIO-IN power terminal blocks
For space and time-saving wiring of three-conductor initiators and actuators
The upper level is for signal wiring, whereas the two lower levels are used to distribute the positive and negative potential
