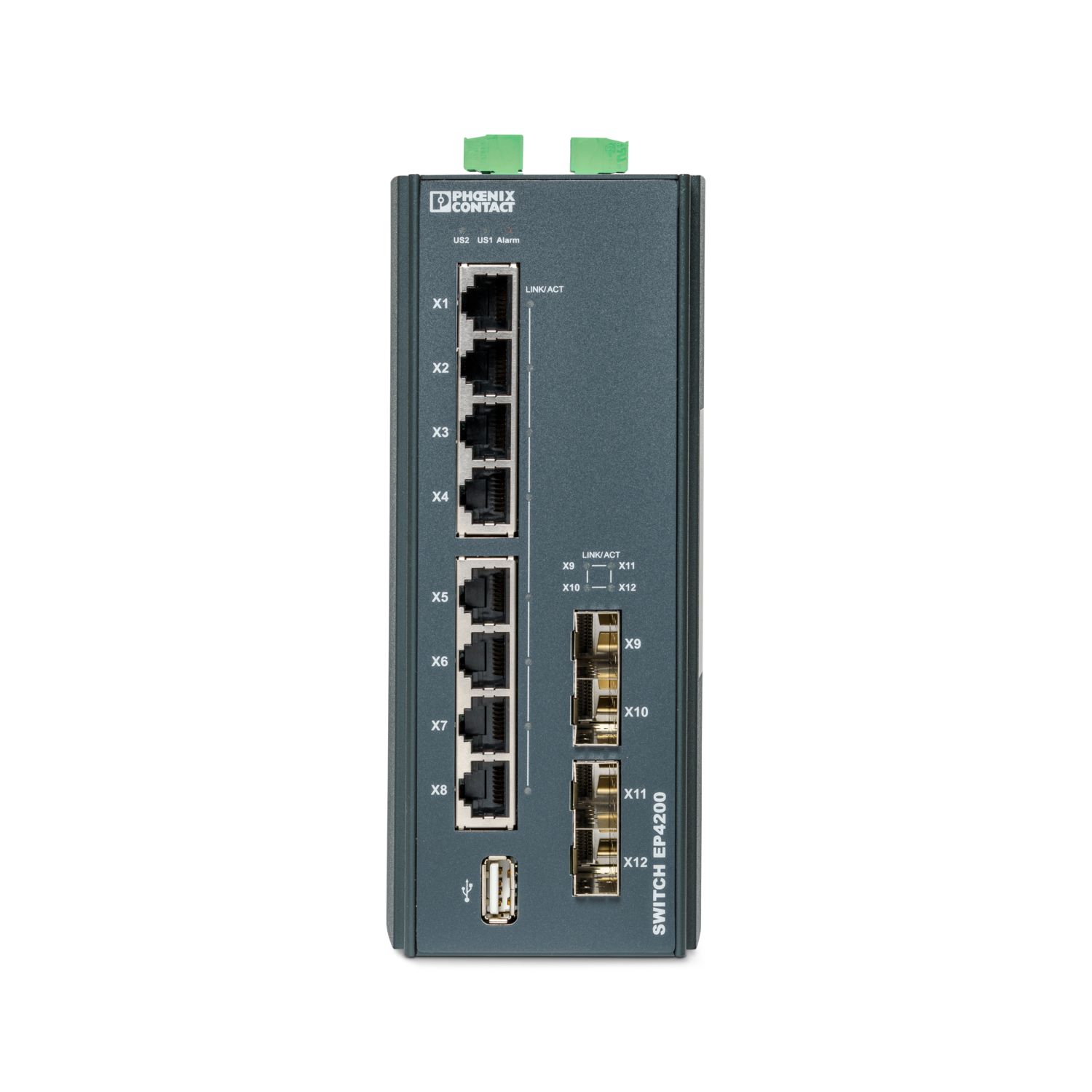

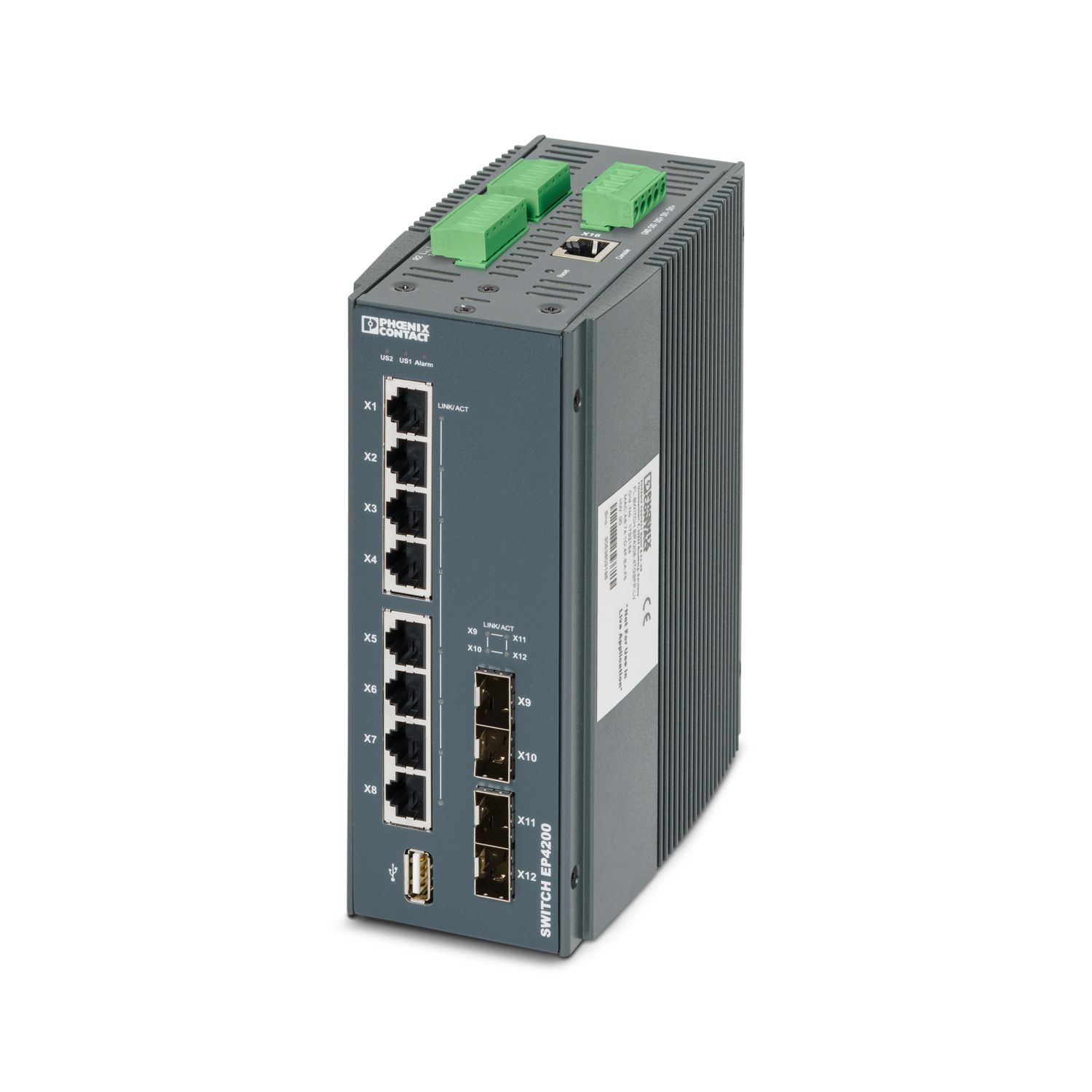

FL SWITCH EP4208-4TGSFP-LV - Industrial Ethernet Switch

1732184

Managed switch with eight RJ45 ports at 10/100/1000 Mbps, four SFP ports at 1/10 Gbps, and operating temperature of -40 ... +85°C, redundant power supply: 12 ... 48 V DC

Width	72 mm
Height	170 mm
Depth	140 mm

Note on application
Note on application	Only for industrial use

Color	gray
Housing material	Metal

Mounting type	DIN rail mounting
Mounting type	DIN rail mounting

Ethernet
Connection method	RJ45
Note on the connection method	Auto negotiation and autocrossing
Transmission speed	10/100/1000 Mbps
Transmission physics	Copper
Transmission length	100 m (per segment)
No. of channels	8 (RJ45 ports)
Ethernet (SFP)
Connection method	SFP
Transmission speed	1000/10,000 Mbps (full duplex)
Transmission physics	Depending on the SFP module
No. of channels	4 (SFP ports)

Digital:
Output name	Alarm relay output: 30 V DC, 0.6 A maximum

Product type	Switch
Product family	Managed Switch EP4000
Switch functions
Signal contact control voltage	30 V DC
Signal contact control current	0.6 A
MAC address table	16k
Redundancy	RSTP (Rapid Spanning Tree, IEEE 802.1w)
	STP
	MSTP
Status and diagnostic indicators	LEDs: POWER, ERROR, Link status

Local diagnostics	US1, US2 Supply voltage Green LED
	Alarm Alarm signal LED red
Maximum power dissipation for nominal condition	20 W ()
Supply
Supply voltage range	12 V DC ... 48 V DC
Function
Signal contact control voltage	30 V DC
Signal contact control current	0.6 A

Connection technology
Connection name	Power supply
Power supply
Connection method	Screw connection

Ambient conditions
Degree of protection	IP30
Ambient temperature (operation)	-40 °C ... 85 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	5 % ... 95 % (non-condensing)

Standard designation	Ambient conditions
Standards/specifications	IEC 61850-3
	IEEE 1613

Conformity/Approvals
Conformance	CE-compliant

Noise immunity	IEC 61850-3, IEEE 1613

Status display	LEDs: POWER, ERROR, Link status

Item number	1732184
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DNN514
Product key	DNN514
GTIN	4067923289482
Weight per piece (including packing)	1,926 g
Weight per piece (excluding packing)	1,347 g
Customs tariff number	85176200
Country of origin	CA

Compatible products

Accessories

Your advantages

Network structure according to IEC 61850

IEEE 1613

Layer 2 managed switch

ECLASS-13.0	19170401
ECLASS-15.0	19170401

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	15(a), 6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
