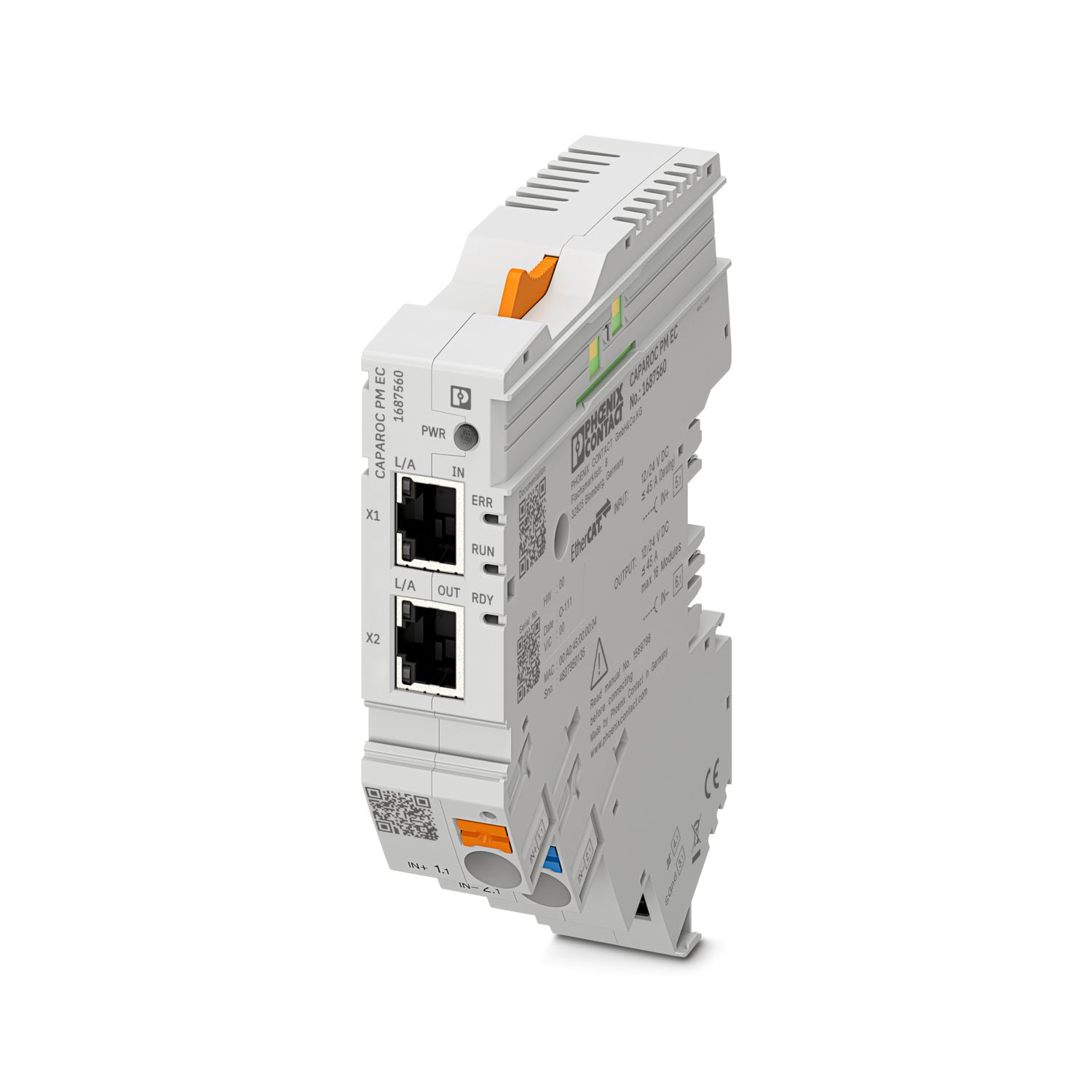

CAPAROC PM EC
-
Feed-in module
1687560
Feed-in module with EtherCAT® interface for supplying the CAPAROC circuit breaker system with 12 V DC or 24 V DC. Additional system interface for communication with the power supply. For DIN rail installation via the CAPAROC current rails.
This product needs further products for operation.
Mandatory accessories
Free download available.
Downloads
Product details
| General | |
| Note | LABS release – in accordance with test specification VW PV 3.10.7:2005-0 |
| When connecting the conductor, make sure that the CAPAROC modules are not pulled apart due to tensile force. Gaps must not be created between the modules. | |
| EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany. | |
| Product type | Device circuit breakers |
| Product family | CAPAROC |
| Type | Plug-in module |
| Number of slots | 4 |
| Insulation characteristics | |
| Protection class | III |
| Pollution degree | 2 |
| EtherCAT® | |
| Device function | EtherCAT® SubDevice |
| General | |
| Operating voltage | 10 V DC ... 30 V DC |
| Rated voltage | 12 V DC |
| 24 V DC | |
| Rated current IN | 45 A DC (Total current input) |
| Rated surge voltage | 0.5 kV |
| Tripping method | E (electronic) |
| Feedback resistance | max. 35 V DC |
| Dielectric strength | 35 V DC (Load circuit) |
| Efficiency | > 99 % |
| Closed circuit current I0 | typ. 46 mA (no load at 24 V) |
| Power dissipation | typ. 1.1 W (no load at 24 V) |
| < 4.5 W (at 40 A) | |
| Temperature derating | 45 A (Total current at 60°C) |
| 20 A (Total current at 65 °C) | |
| 45 A (Total current at 60°C, in accordance with UL) | |
| MTBF (IEC 61709, SN 29500) | 7242508.37 h (at 25 °C with 21 % load) |
| 3958056.77 h (at 40°C with 34.25% load) | |
| 764697.81 h (at 60°C with 100% load) | |
| Voltage drop | 0.082 V (at 40 A) |
| Load circuit | |
| Undervoltage switch-off | ≤ 9.2 V DC (active) |
| ≥ 10.2 V DC (inactive) | |
| Overvoltage switch-off | ≥ 30.5 V DC (active) |
| ≤ 29.5 V DC (inactive) | |
| Main circuit IN+ | |
| Connection method | Push-in connection |
| Stripping length | 18 mm |
| Conductor cross-section AWG | 20 ... 8 |
| Conductor cross-section, flexible, with ferrule, with plastic sleeve | 0.5 mm² ... 16 mm² |
| Conductor cross-section flexible, with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² |
| Main circuit IN- | |
| Connection method | Push-in connection |
| Stripping length | 18 mm |
| Conductor cross-section AWG | 20 ... 8 |
| Conductor cross-section, flexible, with ferrule, with plastic sleeve | 0.5 mm² ... 16 mm² |
| Conductor cross-section flexible, with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² |
| System communication | |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross-section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross-section AWG | 24 ... 16 |
| Conductor cross-section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 0.75 mm² |
| Conductor cross-section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² |
| Maximum system extension | ≤ 16 (CAPAROC modules alignable) |
| Interface type | Ethernet |
| Number | 2 |
| Transmission speed | 10 Mbps 100 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Protocols supported | EtherCAT® SubDevice, CoE, FoE, EoE |
| Power (PWR) LED green | lit (Supply voltage within the operating voltage range) |
| 3x flashing (Global programming lock deactivated) | |
| Power (PWR) LED red | lit (Supply voltage outside the operating voltage range) |
| 5x flashing (Factory reset command accepted) | |
| Power (PWR) LED yellow | lit (PWR button pressed) |
| 3x flashing (Global programming lock activated) | |
| Ready (RDY) LED yellow | flashing (Firmware update is running) |
| Ready (RDY) LED green | lit (Firmware started successfully) |
| Error (ERR) LED red | off (No communication error. The device’s EtherCAT® communication is working perfectly.) |
| flashing quickly (Invalid configuration/general configuration error Possible reason:A state change triggered by the main device is not possible due to register or object settings.The most common reason is an outdated module slot configuration.) | |
| flashing (Local error: The SubDevice application has changed the EtherCAT® state independently. Possible reason 1: A host watchdog timeout has occurred.Possible reason 2: Incorrect module configuration occurred during operation. Module replaced by wrong module.) | |
| two flashes (Watchdog timeout of the application) | |
| Run (RUN) LED green | off (Device is in the INIT state) |
| flashing quickly (2.5 Hz) (Device is in the PRE-OPERATIONAL state) | |
| flashing (Device is in the SAFE-OPERATIONAL state) | |
| lit (Device is in the OPERATIONAL state) |
| Dimensional drawing |
|
| Width | 24.8 mm |
| Height | 132.4 mm |
| Depth | 111.3 mm (incl. DIN rail 7.5 mm) |
| Color | light gray (RAL 7035) |
| Material | PA 6 |
| PA 6 | |
| PA 6 | |
| PC | |
| Flammability rating according to UL 94 | V-0 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -30 °C ... 65 °C |
| -30 °C ... 60 °C (in acc. with UL) | |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Altitude | ≤ 4000 m (amsl) |
| Humidity test | 96 h, 95 % RH, 40 °C |
| Shock (operation) | 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) |
| 25g (6 ms duration, half-sine shock pulse in accordance with IEC 60068-2-27, continuous shock) | |
| Vibration (operation) | 5g (10 Hz ... 150 Hz / 10 cycles / axis / X, Y, Z) |
| UL approval | |
| Identification | UL/C-UL Listed UL 508 |
| UL 121201 Class I, Division 2, Groups A, B, C, D, T4A | |
| Standards/specifications | EN 61000-6-2 |
| Note | EMC – Immunity for industrial areas |
| Standards/specifications | EN 61000-6-4 |
| Note | EMC – Immunity for industrial areas |
| Standards/specifications | EN 61000-6-8 |
| Note | EMC interference emission for professional devices that are used in business and commercial areas as well as in small businesses |
| Standards/specifications | EN 60068-2-78 |
| Note | Environmental influences – Moisture and heat, constant |
| Standards/specifications | EN 50178 |
| Note | Equipping power installations with electronic equipment |
| Standards/specifications | EN 60068-2-6 |
| Note | Environmental influences – Vibrations (sinusoidal) |
| Standards/specifications | EN 60068-2-27 |
| Note | Environmental influences – Shocks |
| Mounting type | pluggable onto CAPAROC CR… current rail |
cUL Listed
Approval ID: E123528cULus Listed
Approval ID: E483407
Your advantages
The benchmark that you can customize by selecting single signals and resets all the way to EtherCAT® communication
Particularly easy operation for everyone with tool-free assembly, direct feed-in to the busbar, and clear operating states
Exceptionally easy design-in with the comprehensive digital data packet for use in EtherCAT® applications
