VS-09-ST-DSUB-2P - D-SUB contact support

1688418

D-SUB contact carrier, shell size 1, accommodation for two combined contacts, type of contact pin, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-09-...

Order information:	The contacts must be ordered separately since they are not included in the scope of supply of the contact carriers. Both one male and one female contact must be mounted in the contact carrier.

Product type	Contact insert
Type	D-SUB
Number of positions	2
Connection profile	D-SUB
Type	Male
Shielded	no

Transmission medium	Copper

Connection method	D-SUB

Width	12.5 mm
Height	12.93 mm
Length	31.2 mm

Flammability rating according to UL 94	V0
Housing material	Steel, yellow chromated
Contact material	Copper alloy
Contact surface material	Gold over nickel
Contact carrier material	PBTP

Mechanical data
Insertion/withdrawal cycles	≥ 500

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-55 °C ... 125 °C

Mounting type	Hole

Item number	1688418
Packing unit	100 pc
Minimum order quantity	100 pc
Sales key	ABNCAA
Product key	ABNCAA
Catalog page	Page 214 (C-2-2013)
GTIN	4017918818340
Weight per piece (including packing)	9.62 g
Weight per piece (excluding packing)	4.47 g
Customs tariff number	85366990
Country of origin	DE

Compatible products

Accessories

Your advantages

Compatible with IP67 sleeve housing and panel-mount frame

Easy assembly

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VS-09-ST-DSUB-2P - D-SUB contact support

1688418

Product details

ECLASS

ETIM

UNSPSC

UL Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VS-09-ST-DSUB-2P - D-SUB contact support 1688418

Product details

ECLASS

ETIM

UNSPSC

Compatible products

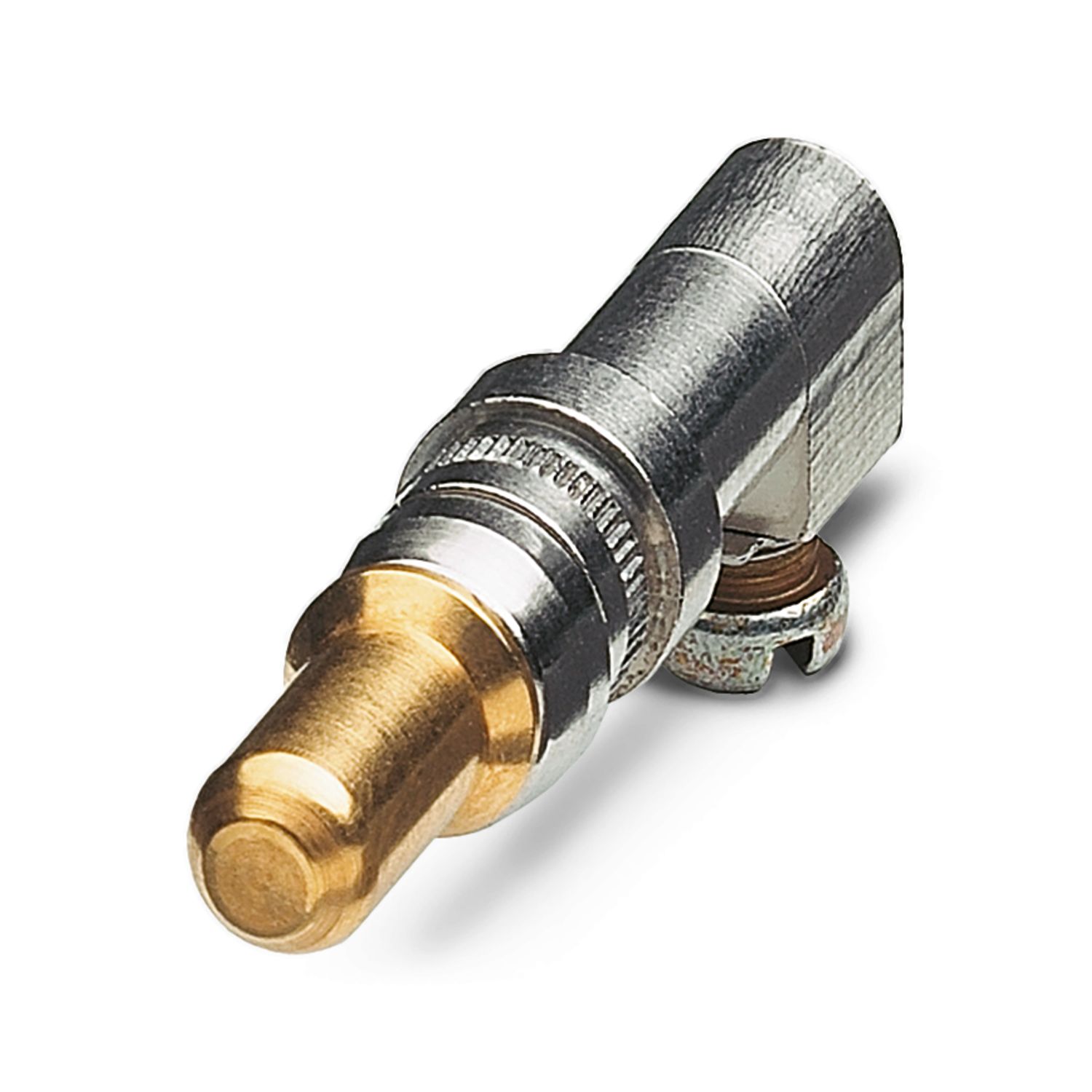

VS-ST-SC-2,6 - D-SUB power contact 1655483

VS-ST-KX-50-RG58 - D-SUB coaxial contact 1655580

VS-ST-KX-75-RG179/187 - D-SUB coaxial contact 1655629

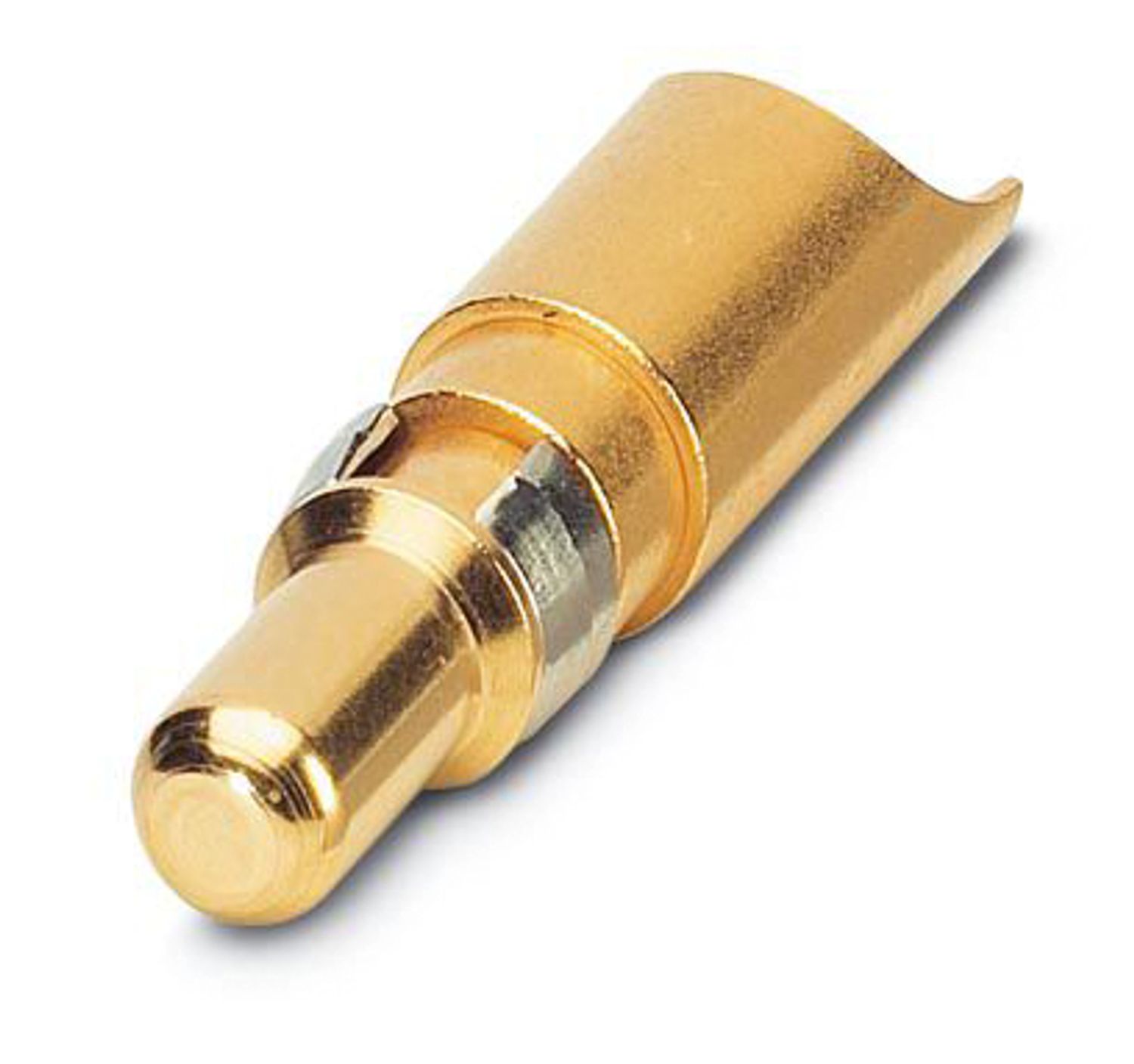

VS-ST-LK-3,6/22,4/2,6 - D-SUB power contact 1688243

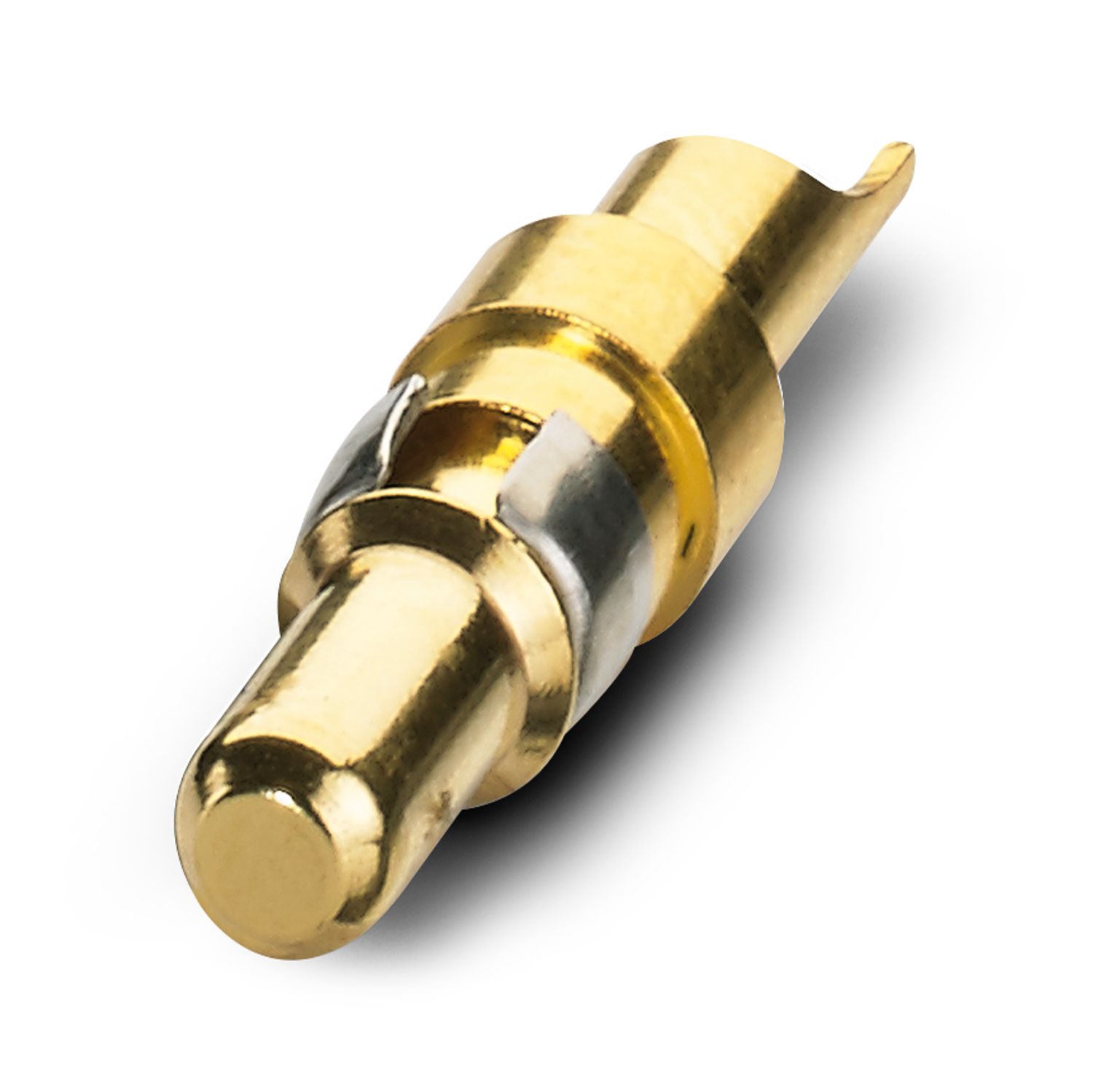

VS-ST-LK-3,6/22,4/4,6 - D-SUB power contact 1688269
