MINI MCR-2-SPS-24-15 - Constant voltage source

1033202

Constant voltage source with pluggable connection technology for the generation of a highly precise constant voltage of 15 V and for the supply of sensors without internal power supply. Screw connection technology.

Free download available. Downloads

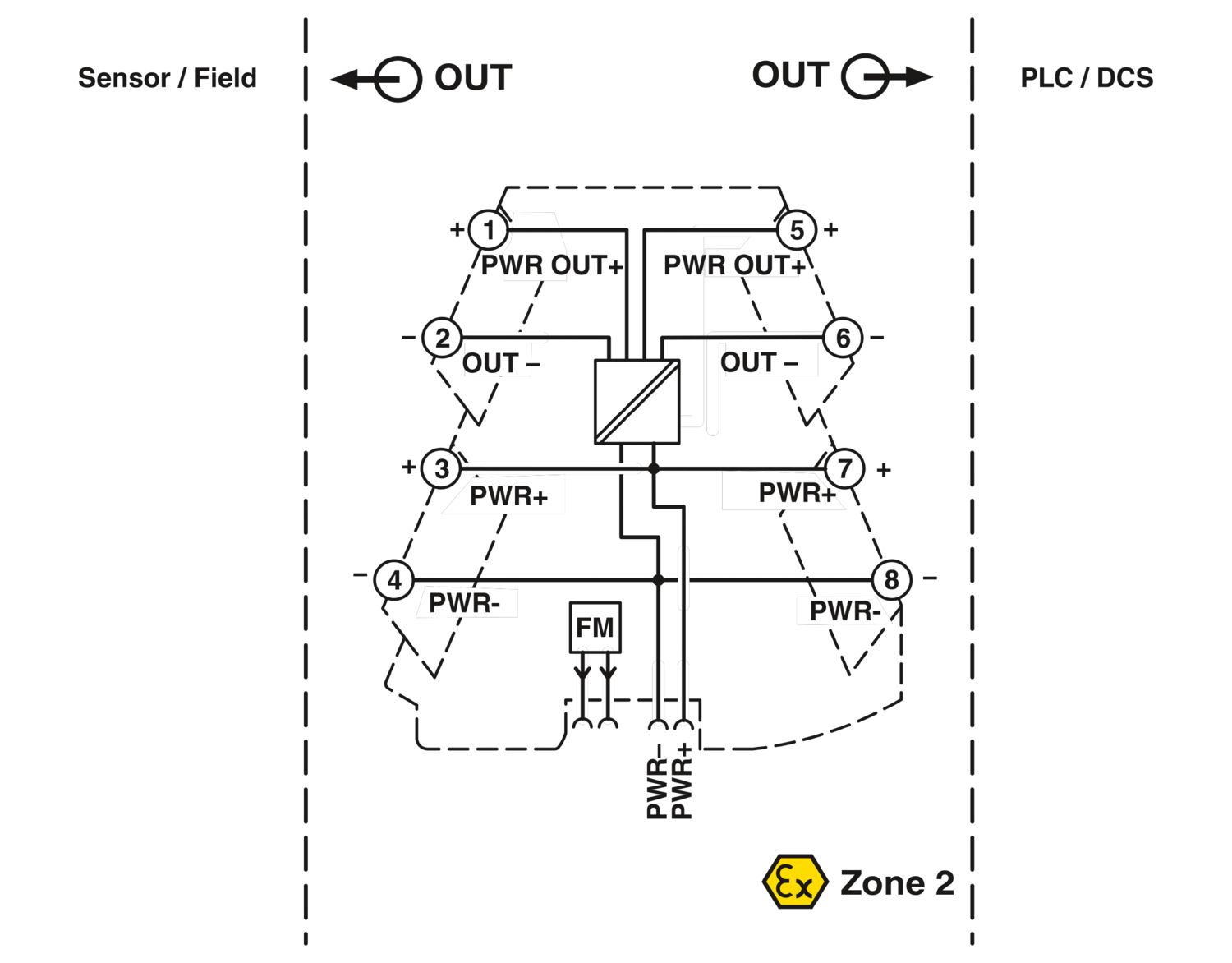

Product details

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product type	Constant voltage source
Product family	MINI Analog Pro
Insulation characteristics: GB Standard
Overvoltage category	II
Pollution degree	2

Maximum temperature coefficient	< 0.01 %/K
Maximum transmission error	≤ 0.1 % (of final value)
Electrical isolation Input/output/power supply
Rated insulation voltage	300 V_rms
Test voltage	3 kV AC (50 Hz, 60 s)
Insulation	Reinforced insulation according to IEC/EN 61010-1
Supply
Supply voltage range	9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Typical current consumption	< 38.2 mA (24 V)
	< 79.8 mA (12 V)
Power consumption	< 900 mW (9.6 V DC)

Signal: Voltage
Voltage input signal	9.6 V DC ... 30 V DC
Transmitter supply voltage	15 V DC

Signal: Voltage
Max. voltage output signal	15 V DC
Short-circuit current	> 35 mA
Output voltage with wire break	15 V DC
Output current	≤ 30 mA
Ripple	< 20 mV_PP (600 Ω)

Connection method	Screw connection
Stripping length	10 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 1.5 mm² (with ferrule)
	0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12 (flexible)
Tightening torque	0.5 Nm ... 0.6 Nm

Ex installation (EPL)	Gc
	Div. 2

Status display	Green LED (supply voltage)

Width	6.2 mm
Height	109.81 mm
Depth	119.2 mm

Color	gray (RAL 7042)
Housing material	PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2

Ambient conditions
Degree of protection	IP20 (not assessed by UL)
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)

CE
Certificate	CE-compliant
ATEX
Identification	 II 3 G Ex ec IIC T4 Gc
Certificate	BVS 20 ATEX E 014X
IECEx
Identification	Ex ec IIC T4 Gc
Certificate	IECEx BVS 20.0010X
CCC / China-Ex
Identification	Ex ec IIC T4 Gc
UL, USA/Canada
Identification	UL 508 Listed
	Class I, Div. 2, Groups A, B, C, D T6
	Class I, Zone 2, Group IIC T6
Shipbuilding approval
Certificate	DNV GL TAA000021E Rev. 1
Shipbuilding data
Temperature	B
Humidity	B
Vibration	A
EMC	A
Enclosure	Required protection according to the Rules shall be provided upon installation on board

Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2
Note	When being exposed to interference, there may be minimal deviations.
Noise emission
Standards/regulations	EN 61000-6-4

GB Standard
Standards/regulations	GB/T 3836.1
	GB/T 3836.3

Mounting type	DIN rail mounting
Assembly note	The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position	any

Commercial data

Item number	1033202
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK112Z
Product key	DK112Z
Catalog page	Page 107 (C-5-2019)
GTIN	4055626537962
Weight per piece (including packing)	115.4 g
Weight per piece (excluding packing)	106.72 g
Customs tariff number	85437090
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
REACH candidate substance (CAS No.)		2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS: 79-94-7)
SCIP	31c27dc5-0c92-4bc8-8361-89e1dc0315c0
