Reduces Pg21 to Pg16
A-INR-PG21/16-N-NS-S
-
Reducing adapter
1415217
Reducing adapter, connecting thread: Pg21, color: silver-colored, with O-ring
Product details
| Product type | Reducing adapter |
| Seal present | yes |

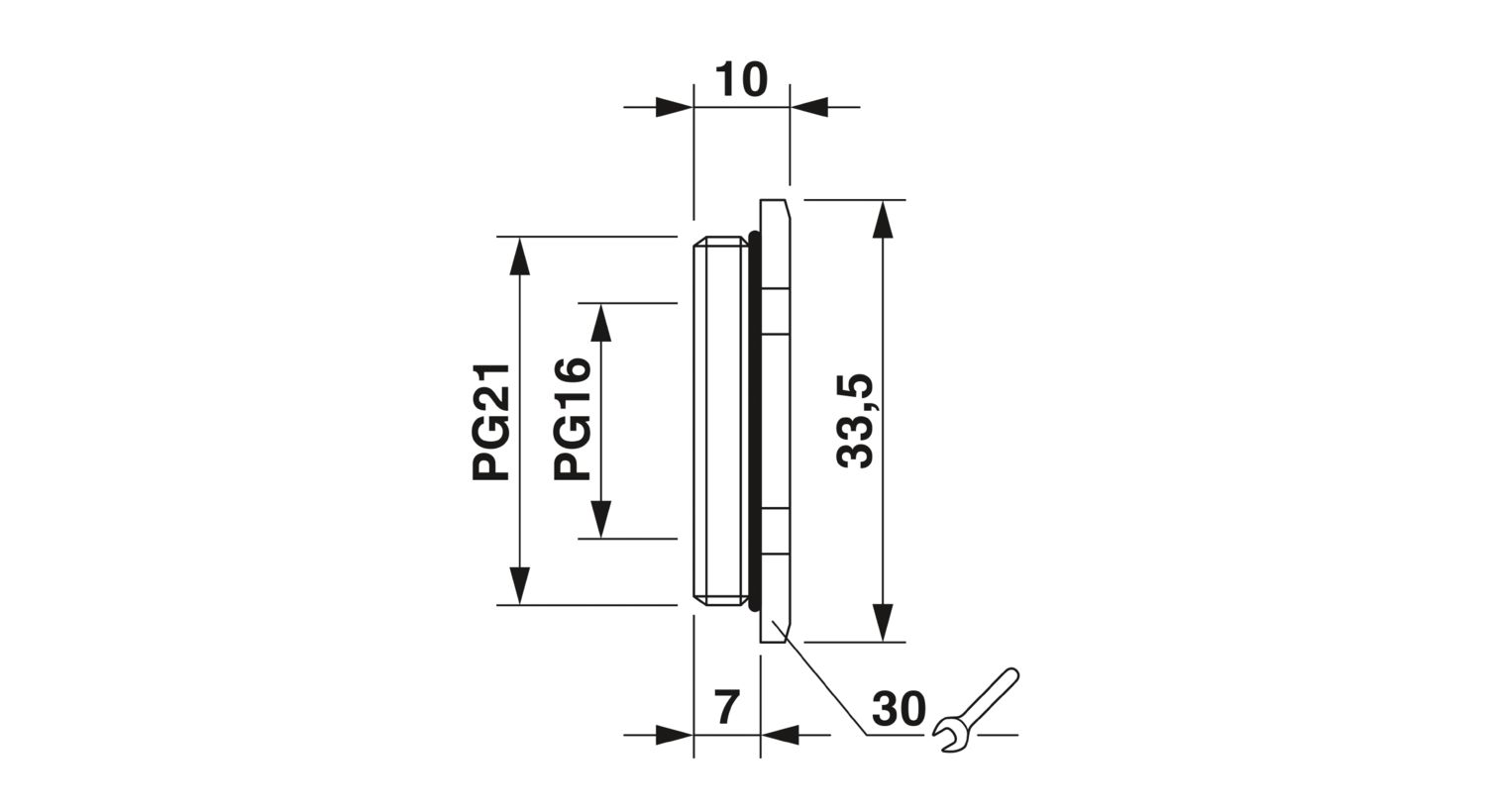

| Dimensional drawing |
|
| Width | 33.50 mm |
| Length | 10 mm |
| Length of the connecting thread | 7 mm |
| Length without connecting thread | 3 mm |
| Diameter | 29 mm |
| Connecting thread diameter | 29 mm |
| Hexagon angular dimension | 33.5 mm |
| Thread type connection side | Pg21 |
| Thread type on seal side | Pg16 |
| Color | brass color |
| Material | Brass, nickel-plated |
| Seal material O-ring | NBR |
| Housing surface material | Ni |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP68 (Depends on the screw connection used) |
