ICS20-KIT-BC100X110-V-BK GP
-
Housing set
1540630

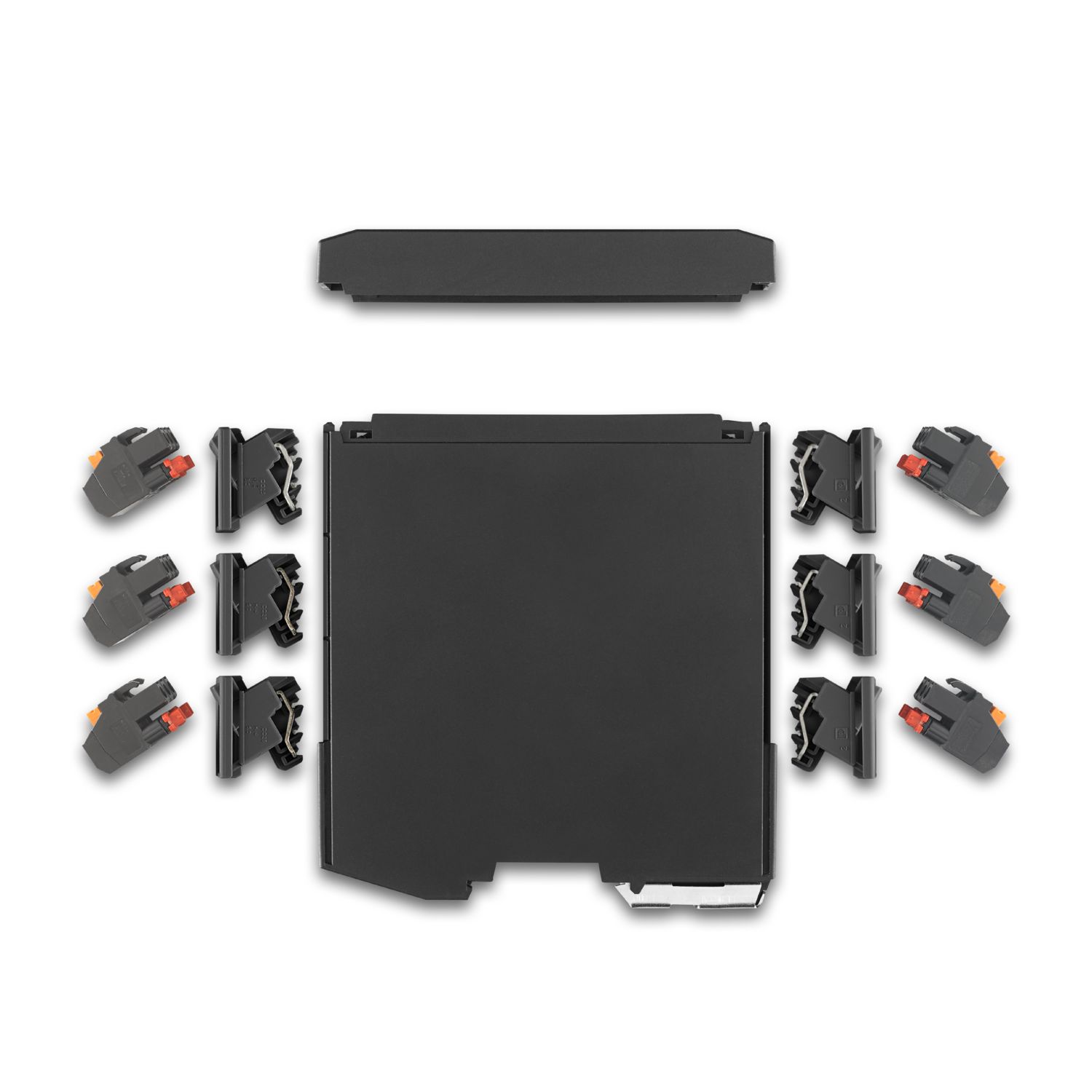

DIN rail housing, for mounting on a DIN rail, with closed latching cover, color: black (similar RAL 9005), width: 20 mm, height: 117.6 mm, depth: 116.7 mm, incl. 6 PCB connectors, 3-pos., Push-in spring connection, for 2.5 mm2, nominal current: 16 A, 320 V, PCB surface: 9600 mm2
Product details
| Assembly note | Please observe the assembly instructions available in the download area. |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
| General | The PCB surface specification is for orientation purposes and is based on a basic PCB. The housing can also accommodate several PCBs. |
| Product type | Stackable housing set |
| Housing type | DIN rail housing |
| Housing series | ICS |
| Product family | ICS20-..100X.. |
| Number of positions | 18 |
| Max. number of positions | 18 (pitch: 5 mm) |
| Number of rows | 3 |
| Type | for mounting on a DIN rail, with closed latching cover |
| incl. 6 PCB connectors, 3-pos., Push-in spring connection, for 2.5 mm², nominal current: 16 A, 320 V | |
| Ventilation openings present | yes |
| Connection method | Push-in spring connection |
| Dimensional drawing |
|
| Width | 20 mm |
| Height | 117.6 mm |
| Depth | 116.7 mm |
| Depth from top edge of DIN rail | 110 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Housing) | black (RAL 9005) |
| Material (Housing) | PA (bio-based) |
| Flammability rating according to UL 94 | V0 |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Number of PCB holders | 2 |
| Type of PCB mount | Latching |
| Total PCB surface | 9600 mm² |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | DIN rail mounting |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Your advantages
Reduction of the carbon footprint through the use of bio-based plastics
