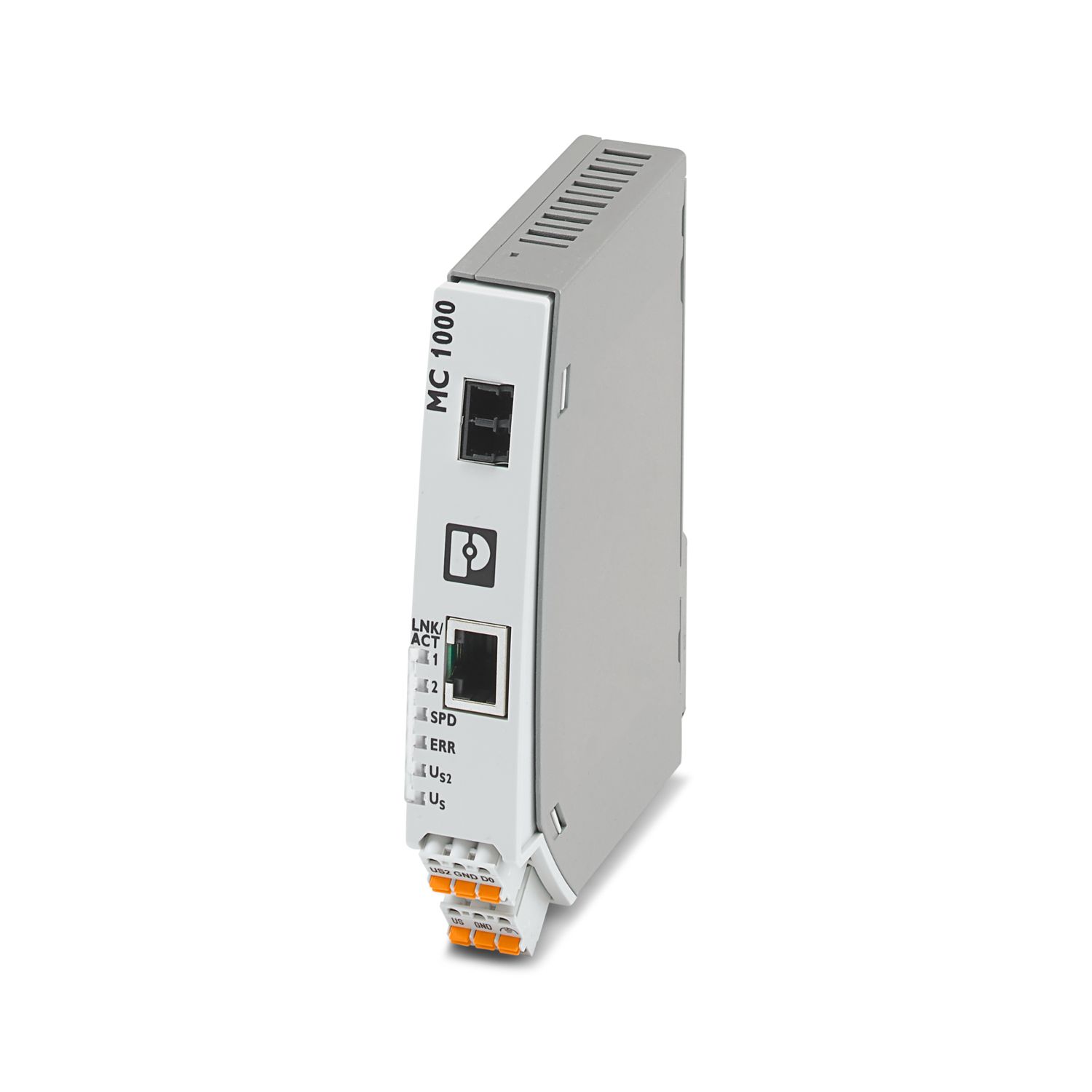

MC 1000T-MM LC - FO converters

1330259

Fiber optic converter with LC duplex connection (1310 nm) for 100Base-TX to multimode fiber optics, DIN rail mountable, extended temperature range, redundant power supply.

Note on application
Note on application	Only for industrial use
Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product type	Media converter
Product family	MC 1000T
MTTF	68.5 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
	508.3 Years ()
	331.4 Years (Telcordia standard, temperature 25 °C, operating cycle 100 % (7 days a week, 24 hours a day))

Supply
Supply voltage range	12 V DC ... 57 V DC
Nominal supply voltage	24 V DC
	48 V DC
Typical current consumption	20 mA (24 V DC)
Max. current consumption	170 mA

Signal
Voltage output signal	12 V DC ... 48 V DC (depending on the input voltage)
Current output signal	100 mA

Supply
Connection method	Push-in spring connection
Conductor cross section, flexible	0.20 mm² ... 2.50 mm²
Conductor cross section, rigid	0.20 mm² ... 2.50 mm²
Conductor cross section, flexible [AWG]	24 ... 12
Conductor cross section AWG	24 ... 12
Stripping length	10.00 mm

Signal	Ethernet
Data: optical FO
Transmit capacity, minimum	-20 dBm (62.5/125 μm, multimode fiberglass)
	-23.5 dBm (50/125 μm, multimode fiberglass)
Transmit capacity, maximum	-14 dBm
Transmission length incl. 3 dB system reserve	2 km
Connection method	LC duplex
Wavelength	1310 nm
Minimum receiver sensitivity	-31 dBm
Maximum receiver sensitivity	-8 dBm
Transmission medium	Multi-mode fiberglass
Data: Ethernet interface, 100Base-Tx in acc. with IEEE 802.3u
Transmission speed	10/100 Mbps
Connection method	RJ45 jack, shielded
No. of channels	1
Transmission length	100 m (twisted pair, shielded)
Transmission medium	Copper
Signal LEDs	LNK/ACT, SPD, Err, US, US2
Auto-negotiation modes	Auto
Link through	Link fault pass through
MDI-/MDI-X switchover	Auto-MDI(X)

Width	22.5 mm
Height	125 mm
Depth	90 mm

Housing material	Polyamide fiber reinforced
	Aluminum / steel sheet DC01

FO cable
Fiber types	50/125 µm
	62.5/125 µm
	Fiberglass

Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6	: 5g, 150 Hz, Criterion 3
Shock in accordance with EN 60068-2-27/IEC 60068-2-27	: 30g, 11 ms half-sine shock pulse

Ambient conditions
Degree of protection	IP30
Ambient temperature (operation)	-40 °C ... 75 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2000 m (in acc. with UL)
Permissible humidity (operation)	10 % ... 95 % (non-condensing)
Shock	300 m/s², 11 ms (IEC 60068-2)

Conformity/Approvals
Conformance	CE-compliant
UL, USA / Canada	UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Comments	Criterion B
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Comments	Criterion A
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Comments	Criterion B
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Comments	Criterion A
Emitted interference
Standards/regulations	EN 55032

Mounting type	DIN rail: 35 mm
Mounting position	On horizontal DIN rail NS 35 in acc. with EN 60715

Item number	1330259
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	M1 - Communication Techn.
Product key	DNC314
GTIN	4063151627003
Weight per piece (including packing)	274,8 g
Weight per piece (excluding packing)	180 g
Customs tariff number	85176200
Country of origin	CA

Compatible products

Accessories

Your advantages

Auto MDI/MDI-X switch-over

Data transfer rates of 100 Mbps

Link fault pass through (LFPT) function for easy connection monitoring

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
