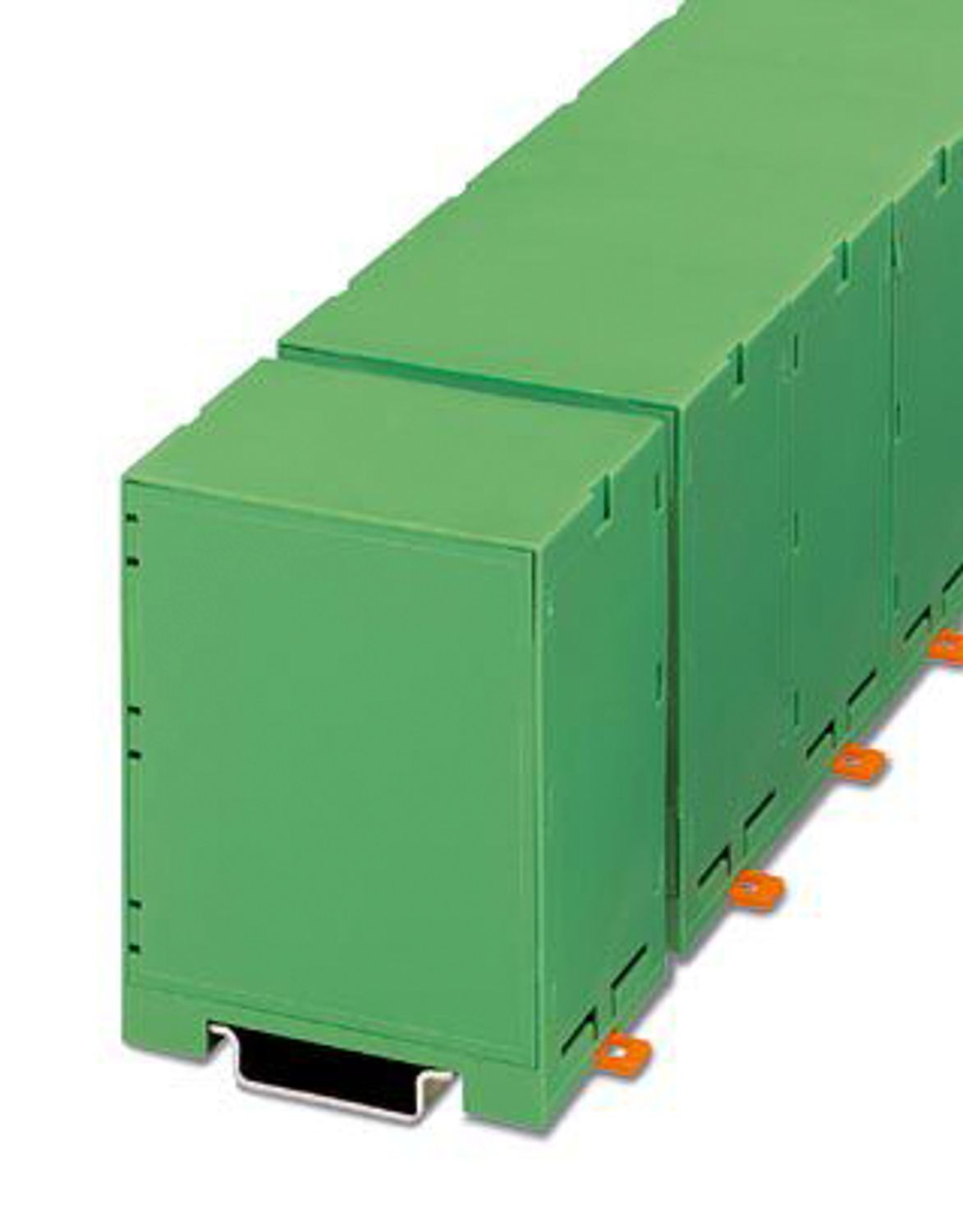

EMUG 45- BE
-
Electronics housing
2943482
Base element with snap-on foot, for mounting on standard DIN rail, 45 mm wide
This product needs further products for operation.
Mandatory accessories
Product details
| Housing type | Component housing |
| Type | Housing base element, side panels necessary to complete the module |
| Number of positions | 999 |

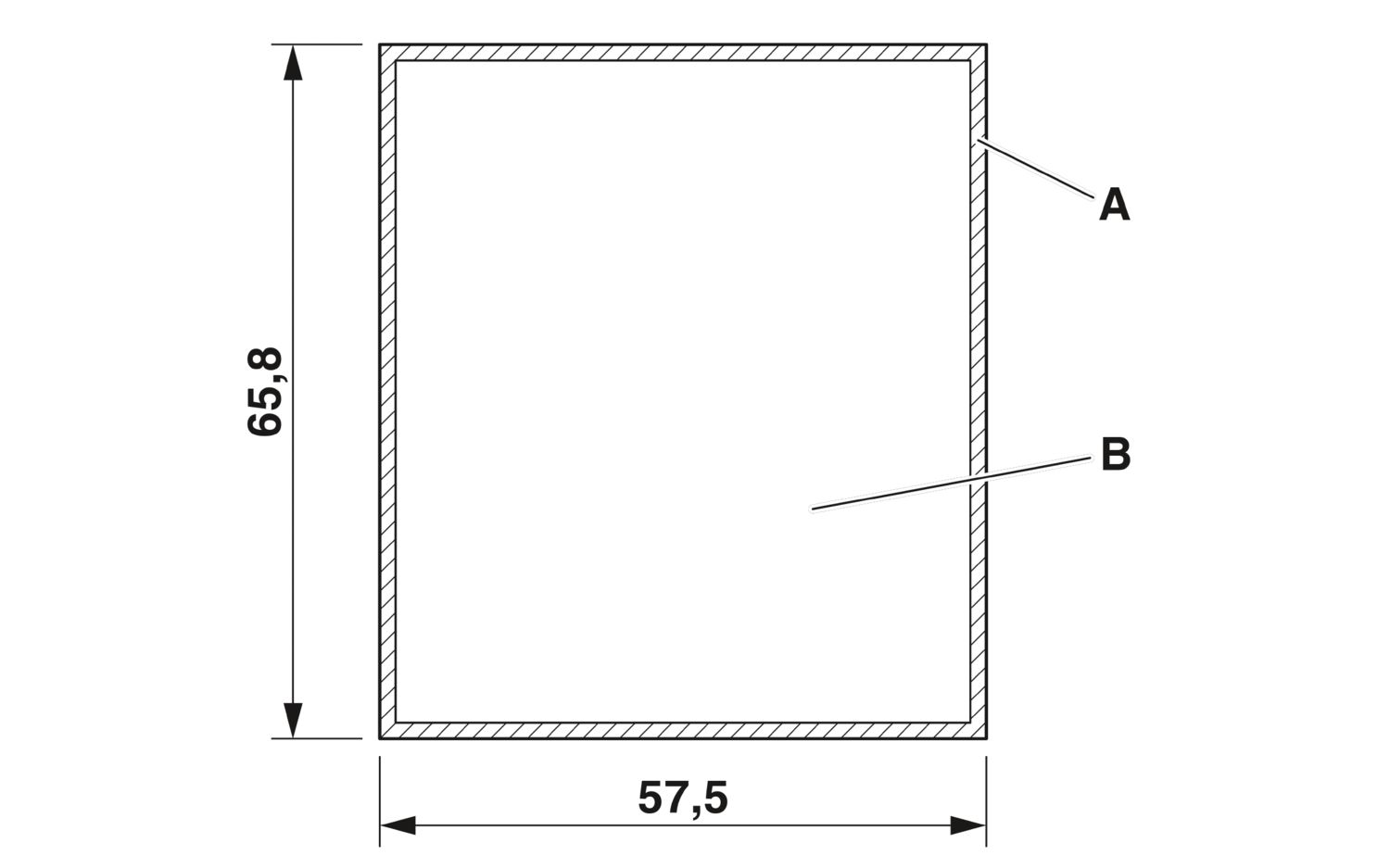

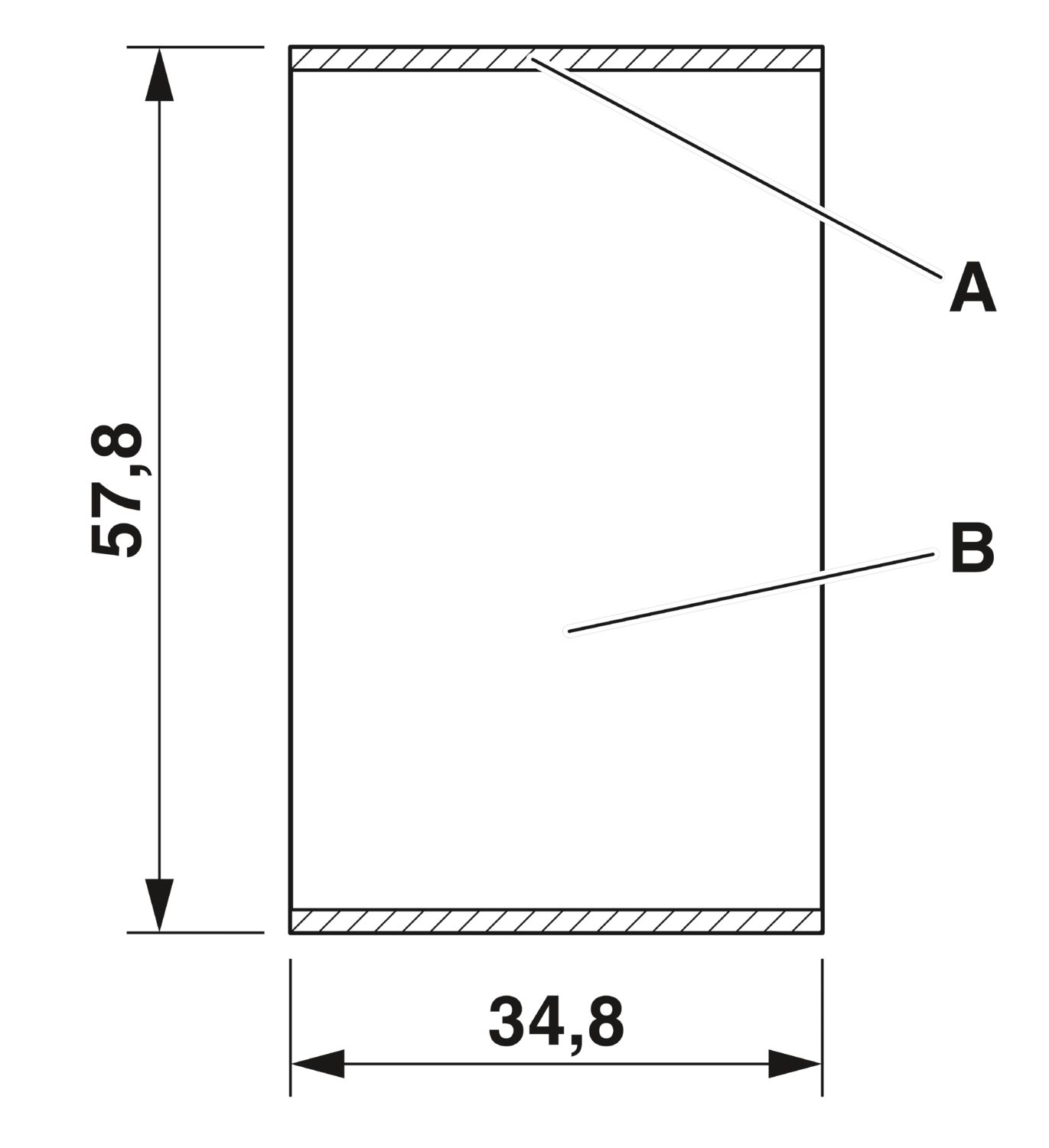

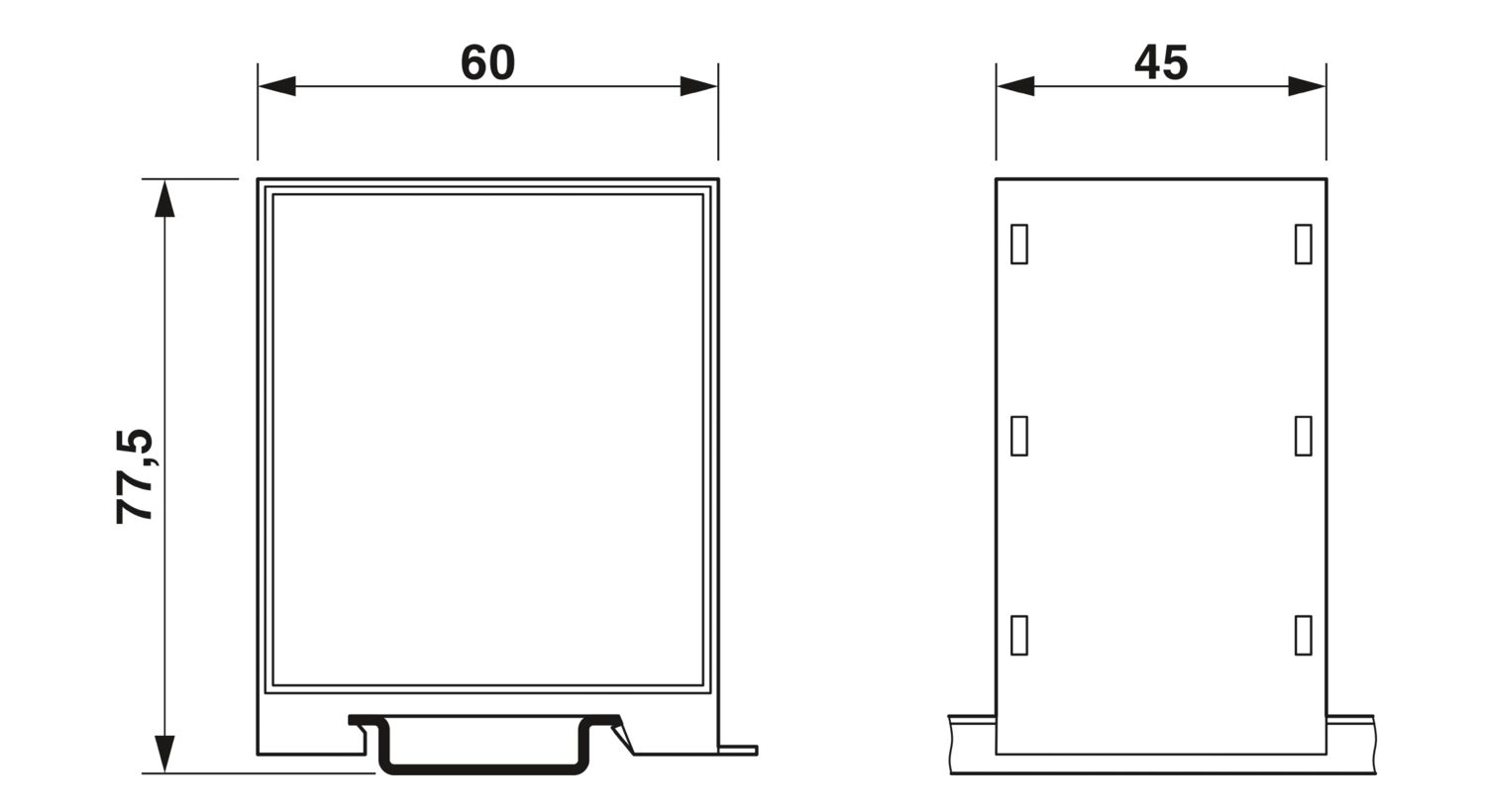

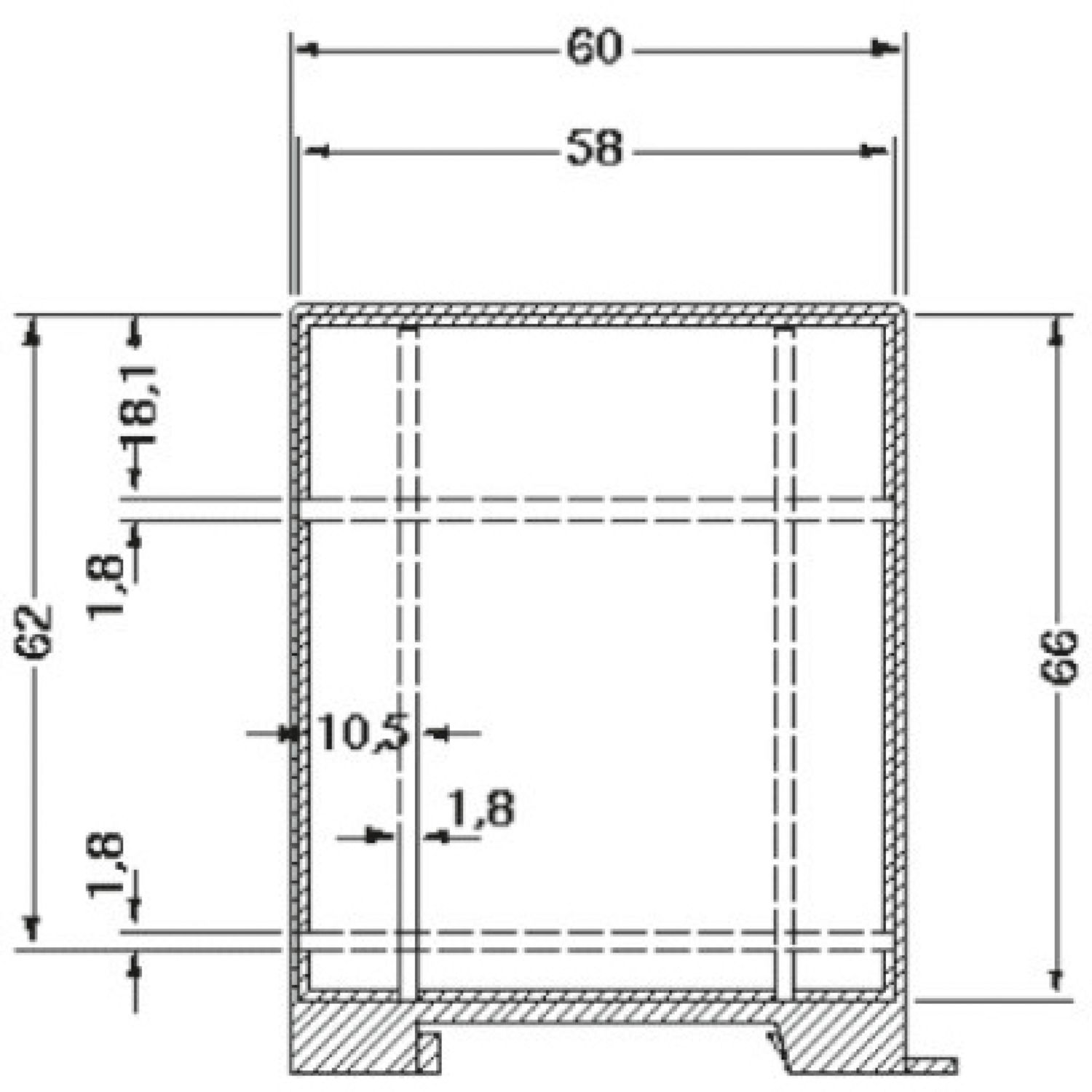

| Dimensional drawing |
|
| Width | 45 mm |
| Height NS 35/7,5 | 77 mm |
| Depth | 60 mm |
| Length | 60 mm |
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate fiber reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
