CK6,0-ED-6,00M PE DCC AG
-
Crimp contact
1559523
Crimp contact, contact diameter: 6 mm, turned, Pin, contact material: Copper alloy, lead-free, contact surface: silver-plated, connection cross section: 6 mm2 ... 6 mm2, AWG 10 ... 10
Product details
| General | HC-DCC4-I-CT-HW-M contact carrier |
| Assembly note | The contacts are qualified for crimping dies in accordance with DIN 46235. Klauke, for example, offers the appropriate tool: Crimping dies from the D22 series are required for the EKM6022 battery-operated hydraulic crimping pliers. Due to the narrow crimping width of 5 mm, it is very important to make two compressions next to one another. For the EK12042 model, crimping dies from the HD13 series are required. Due to a wider crimping process, only one compression is required. |
| The quality of a crimp connection is determined by DIN EN 60352-2. |
| Product type | Crimp contact |
| Series | HC-M-...-25, HC-DCC4-I-CT-HW |
| Application | Power |
| Type | Individual male contact |
| Contact material type | turned |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Connection technology | Crimp connection |
| Conductor cross section | 6 mm² ... 6 mm² |
| Connection cross section AWG | 10 ... 10 |
| Stripping length of the individual wire | 15.5 mm |
| Conductor cross section flexible | 6 mm² ... 6 mm² |
| Conductor cross section AWG | 10 ... 10 |
| Contact material | Copper alloy, lead-free |
| Contact surface material | silver-plated |

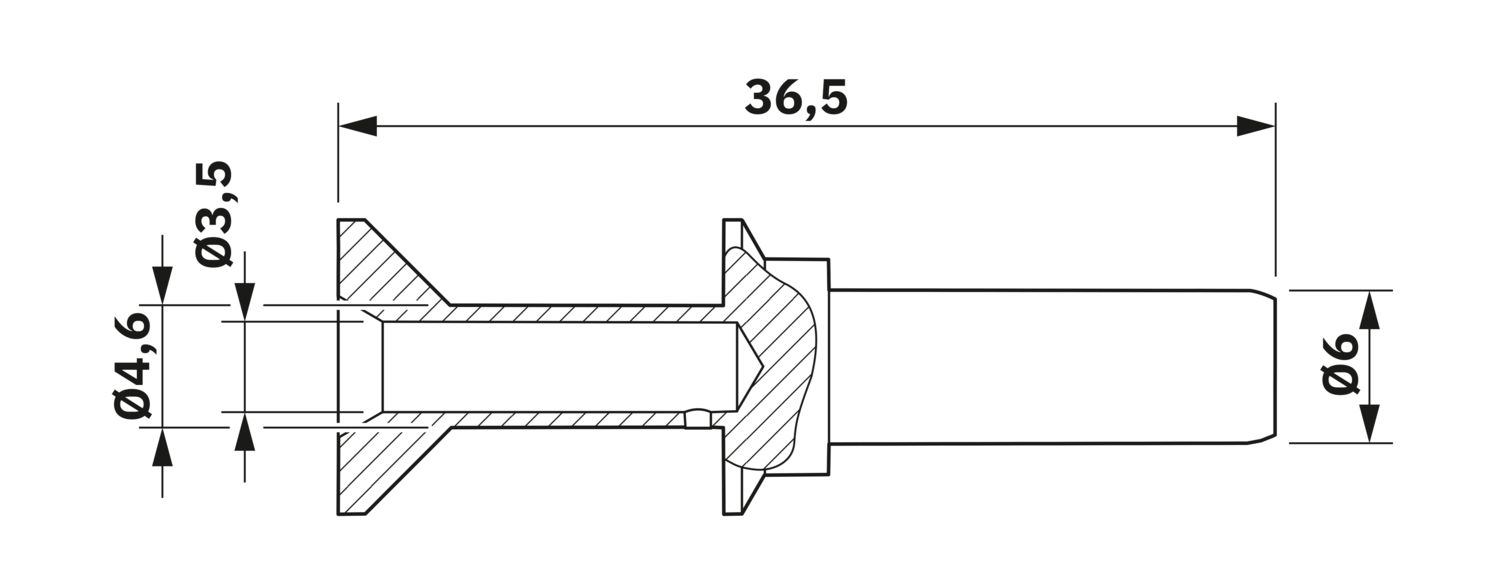

| Dimensional drawing |
|
| Length | 36.5 mm |
| Mechanical characteristics | |
| Contact diameter | 6 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
