TC-D37SUB-ADIO16-M-P-UNI - Module carrier

2902933

Universal termination carrier for connecting 16 MINI Analog signal conditioners to digital or analog I/O cards, via D-SUB connector, 37-pos. (1:1 connection)

This product needs further products for operation. Mandatory accessories

Product details

Set consists of

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Product type	Module carrier
Insulation characteristics: Air clearances and creepage distances
Insulation	Basic insulation
Overvoltage category	II
Pollution degree	2

Max. permissible current	< 1 A (Signal/channel)
Nominal voltage U_N	< 30 V DC (Per signal/channel)
Air clearances and creepage distances
Rated insulation voltage	50 V
Rated surge voltage	0.5 kV
Supported controller universal
Suitable I/O card	universal
Supply
Designation	Feed-in module
Note	Power supply via 2902958 MINI MCR-SL-PTB-FM power terminal and 2902961 MINI MCR-SL-FM-RC-NC error signaling module.
Fuse	2x 2.5 A on PCB, slow-blow (replaceable)
Input voltage	24 V DC
Input voltage range	19.2 V DC ... 30 V DC
Input current	≤ 2 A
Redundant supply	yes, decoupled from diodes
Polarization and surge protection	Yes
Output name	Switching output
Contact switching type	1 N/C contact (alarm = open)
Maximum switching voltage	30 V DC (50 mA)

Power supply
Connection method	Screw connection
Stripping length	7 mm
Number of connections	1
Number of positions	6
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	D-SUB pin strip
Number of connections	1
Number of positions	37

Status display	2 x red LED (error)
	2x green LEDs (PWR1 and PWR2)

Width	136 mm
Height	170 mm
Depth	159.5 mm

Flammability rating according to UL 94	V0

Ambient conditions
Degree of protection	IP00
Ambient temperature (operation)	-20 °C ... 60 °C (Please observe module specifications)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	2g, according to IEC 60068-2-6

ATEX
Identification	 II 3 G Ex nA IIC T4 Gc X
UKCA Ex (UKEX)
Identification	 II 3 G Ex nA IIC T4 Gc
Certificate	PxCIF21UKEX2902933X
UL, USA/Canada
Identification	UL 61010 Listed
	Class I, Div. 2, Groups A, B, C, D T4
	Class I, Zone 2, Group IIC

Air clearances and creepage distances
Standards/regulations	EN 60664-1

Mounting type	DIN rail mounting
Assembly note	No end clamp
Mounting position	vertical, horizontal

Commercial data

Item number	2902933
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK273C
Product key	DK273C
Catalog page	Page 125 (C-7-2015)
GTIN	4046356697996
Weight per piece (including packing)	1’170 g
Weight per piece (excluding packing)	1’170 g
Customs tariff number	85366900
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

Mechanically decoupled, passive PCB

Robust aluminum profile with integrated DIN rail

Side parts with integrated end clamps

D-SUB pin strip system connection, 37-pos. (1:1 connection)

Simple or redundant supply (decoupled from diode, protected against polarity reversal) and monitoring function implemented via separate DIN rail module

Cable sets for signal connection are supplied as standard and do not have to be ordered separately

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	9a059c45-117c-4322-86db-e2a7e3d24ee4

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TC-D37SUB-ADIO16-M-P-UNI - Module carrier

2902933

Product details

ECLASS

ETIM

UNSPSC

UL Listed

cUL Listed

cUL Listed

UL Listed

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TC-D37SUB-ADIO16-M-P-UNI - Module carrier 2902933

Product details

TC-C-2MIN-AI-05061516 - Cable set 2905224

TC-C-PTB1-AI-SET1 - Cable set 2905217

ME 6,2 TBUS-2 1,5/5-ST-3,81 GY - DIN rail bus connector 2695439

ECLASS

ETIM

UNSPSC

Compatible products

MINI MCR-SL-PTB-FM - Power terminal block 2902958

MINI MCR-SL-FM-RC-NC - Monitoring block 2902961

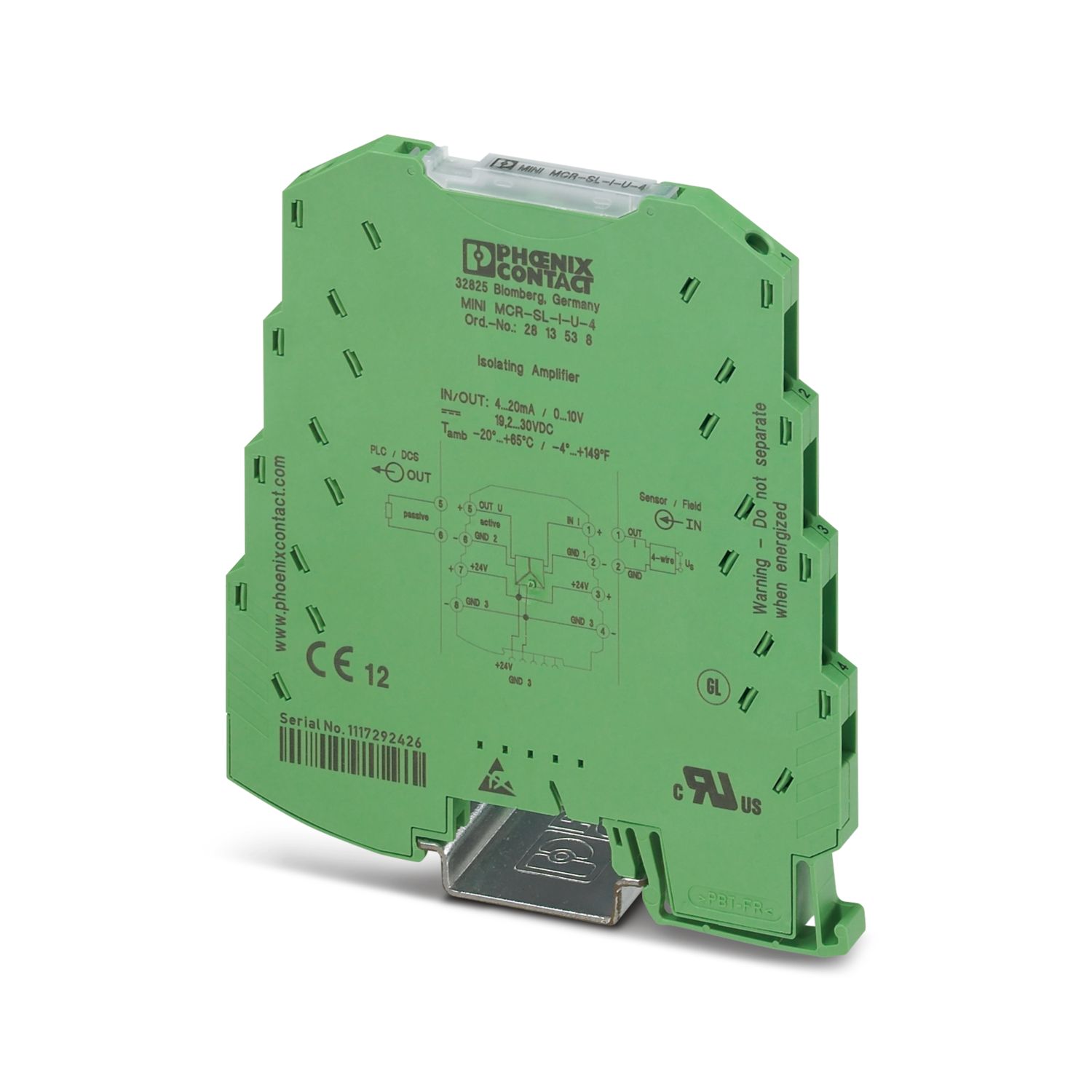

MINI MCR-SL-UI-UI-NC - Signal conditioner 2864150

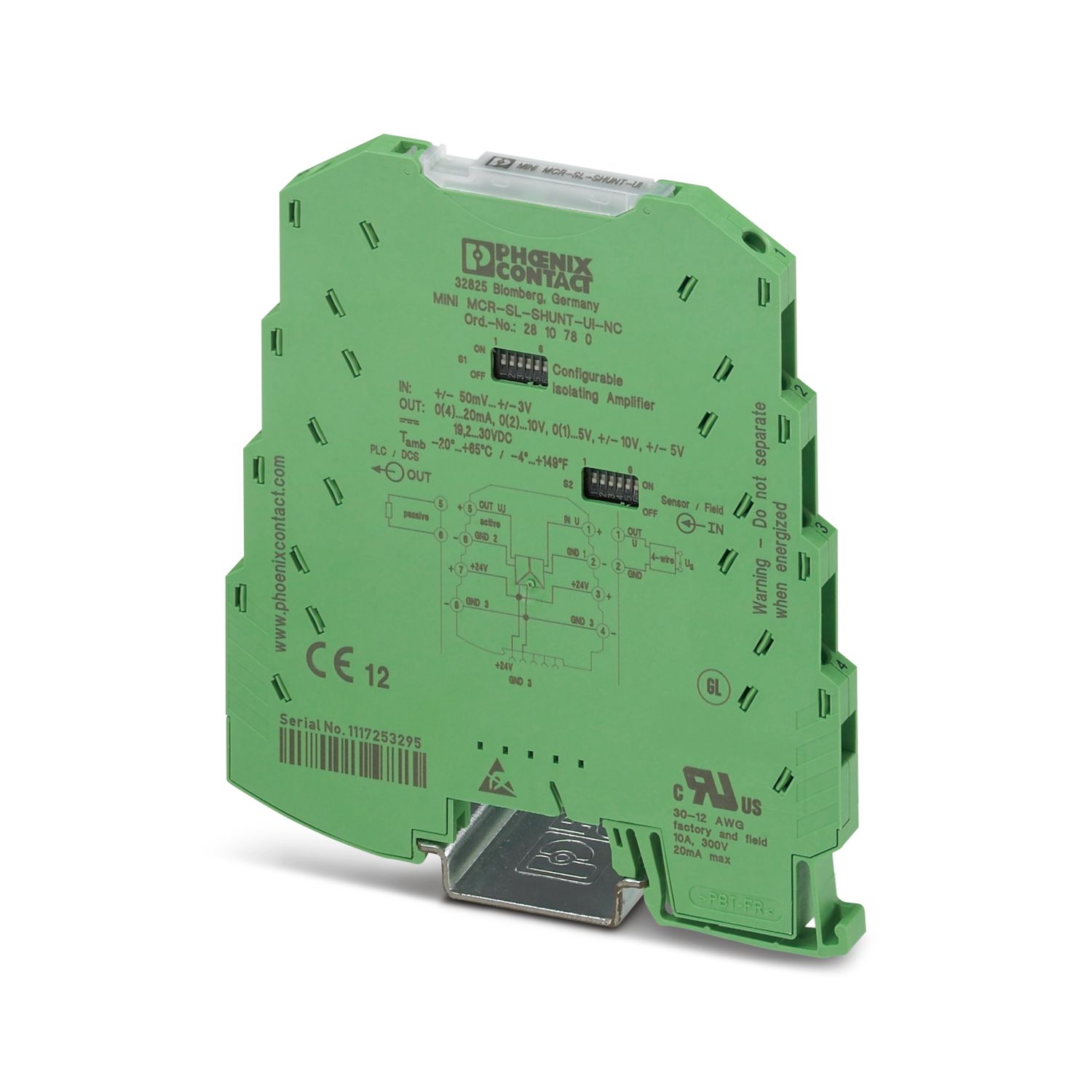

MINI MCR-SL-SHUNT-UI-NC - Signal conditioner 2810780

MINI MCR-SL-U-UI-NC - Signal conditioner 2865007

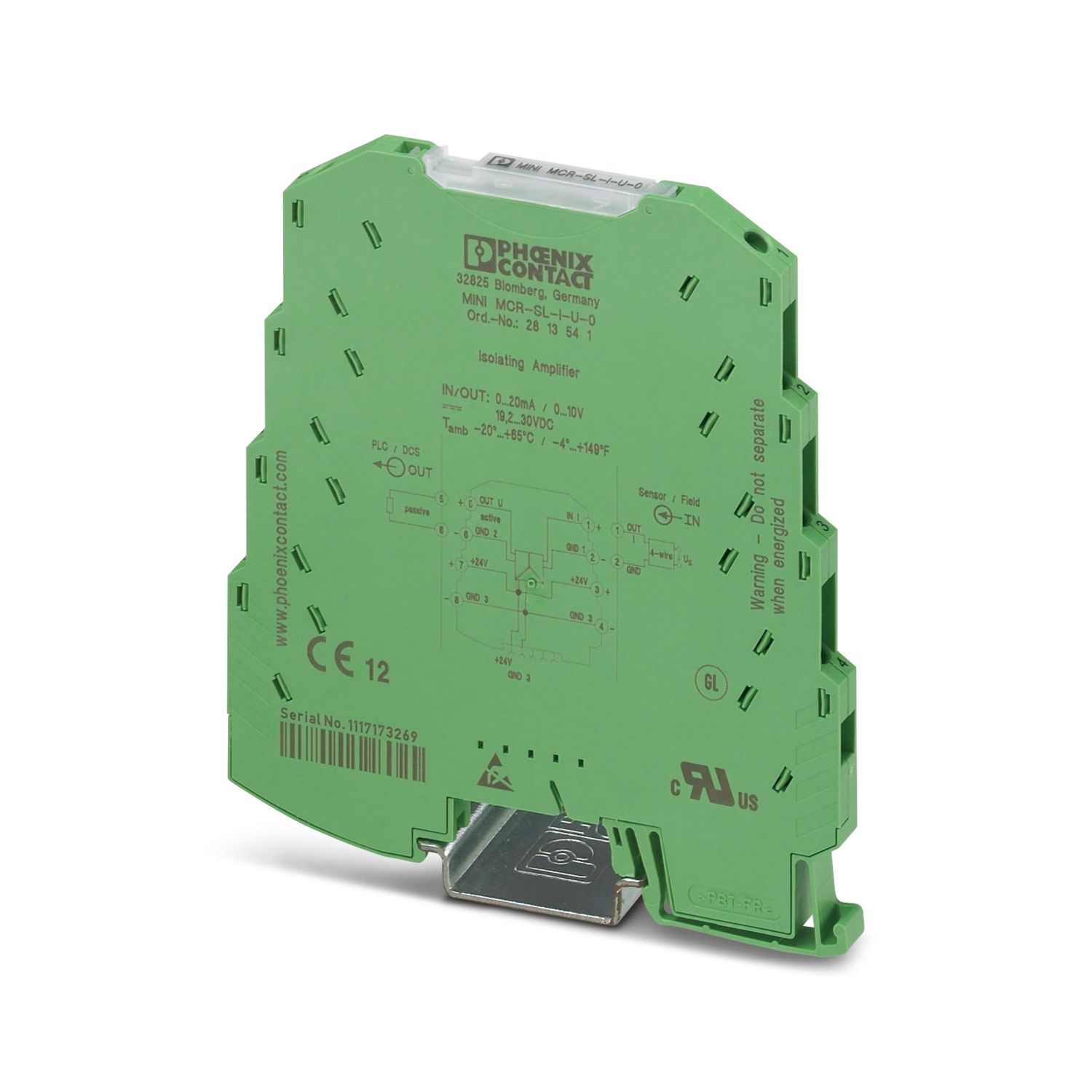

MINI MCR-SL-U-I-0 - Signal conditioner 2813512

MINI MCR-SL-U-I-4 - Signal conditioner 2813525

MINI MCR-SL-I-U-0 - Signal conditioner 2813541

MINI MCR-SL-I-U-4 - Signal conditioner 2813538

MINI MCR-SL-I-I - Signal conditioner 2864406

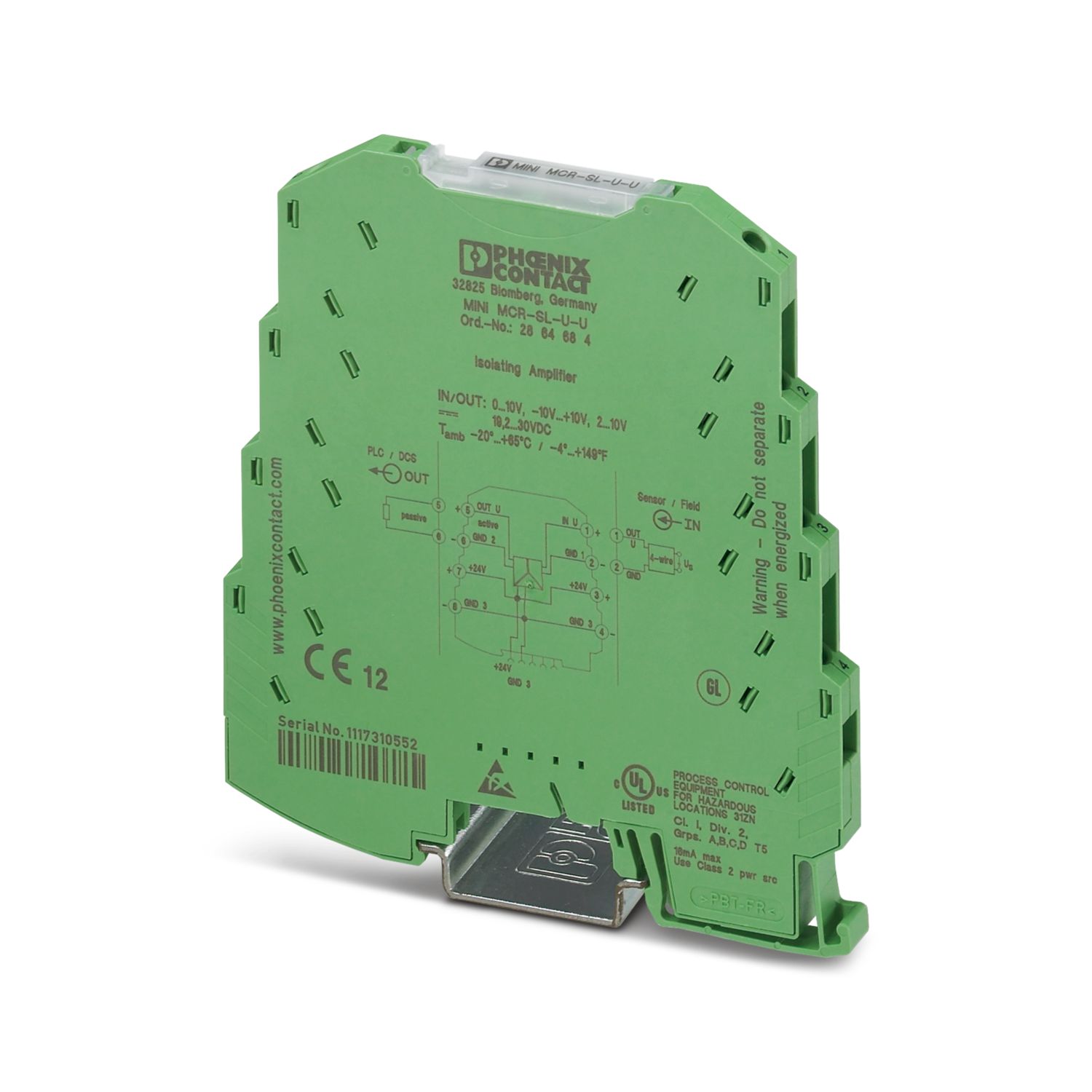

MINI MCR-SL-U-U - Signal conditioner 2864684

MINI MCR-SL-RPSS-I-I - Repeater power supply 2864079

MINI MCR-SL-RPS-I-I - Repeater power supply 2864422

MINI MCR-SL-IDS-I-I - Output signal conditioner 2905577

MINI MCR-RTD-UI-NC - Resistance thermometer measuring transducer 2902849

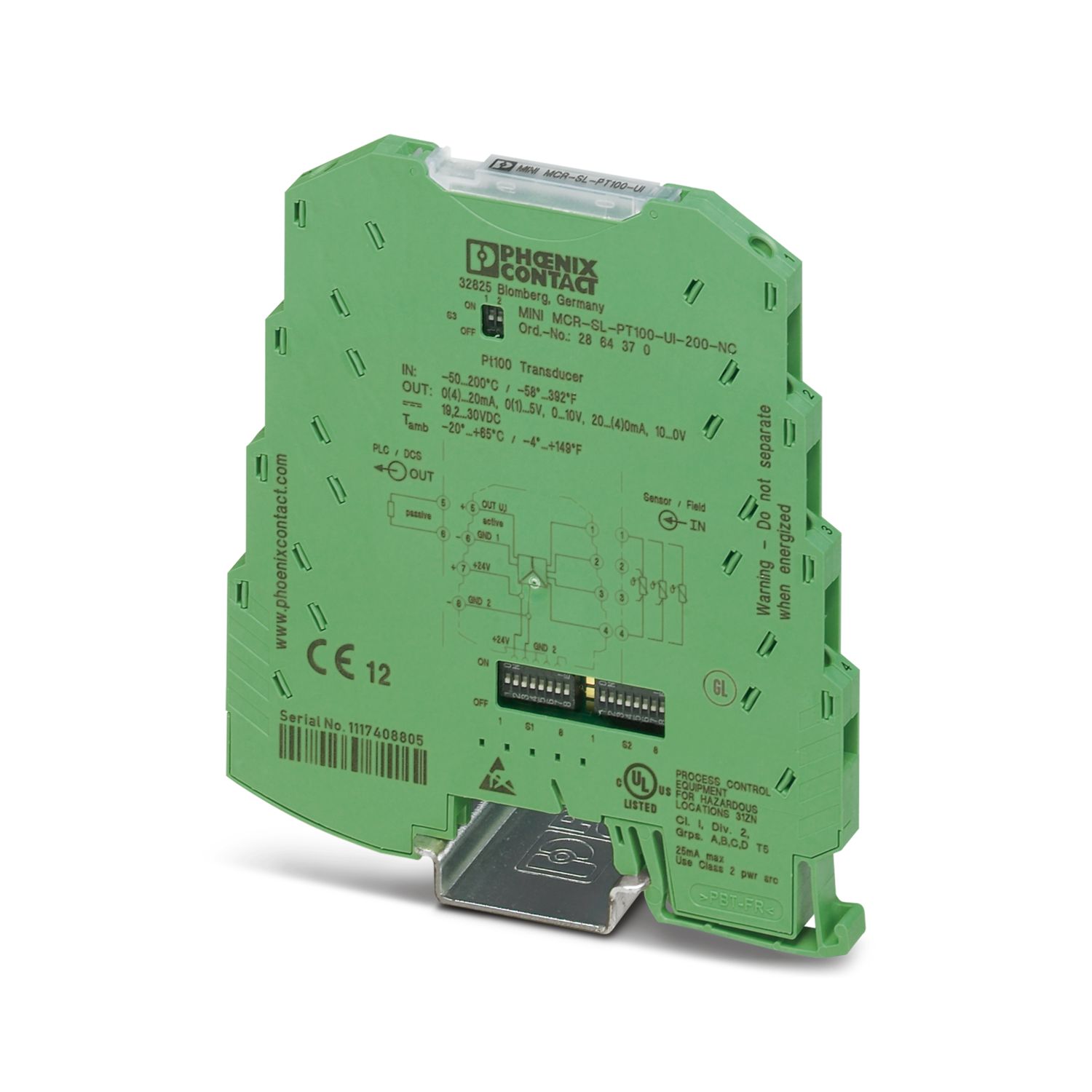

MINI MCR-SL-PT100-UI-200-NC - Temperature measuring transducer 2864370

MINI MCR-SL-PT100-UI-NC - Resistance thermometer measuring transducer 2864273

MINI MCR-SL-PT100-LP-NC - Temperature measuring transducer 2810308

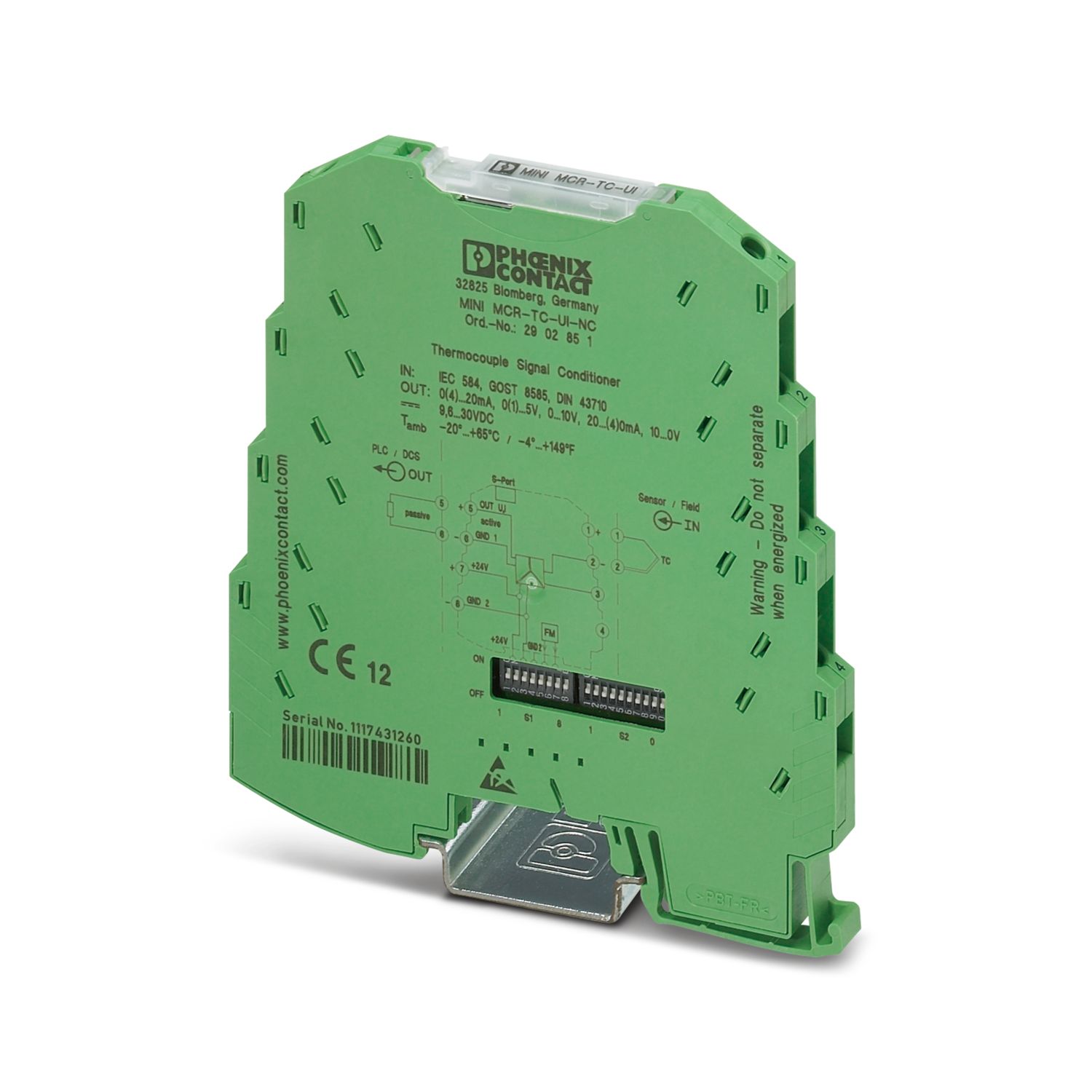

MINI MCR-TC-UI-NC - Thermocouple measuring transducer 2902851

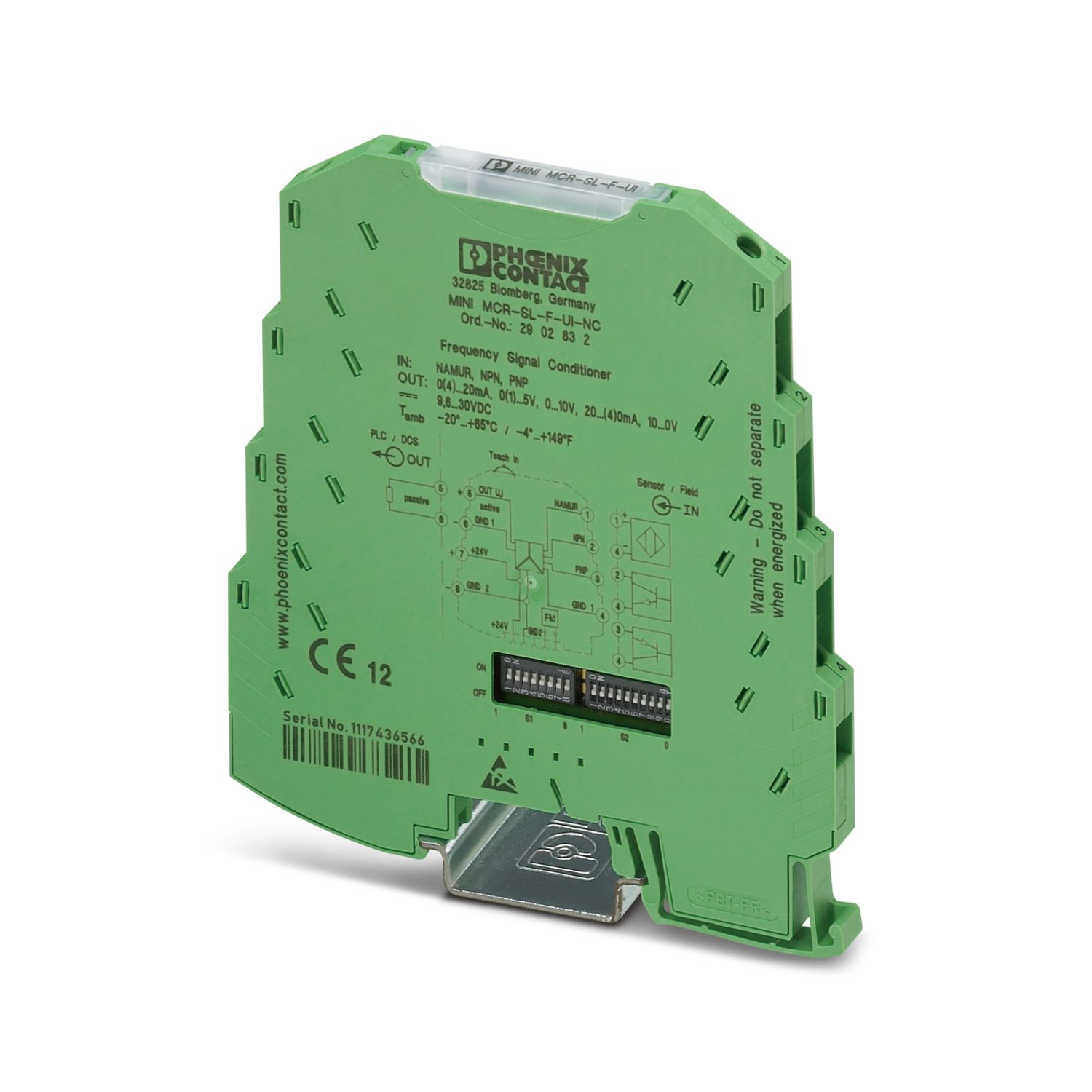

MINI MCR-SL-F-UI-NC - Frequency measuring transducer 2902832

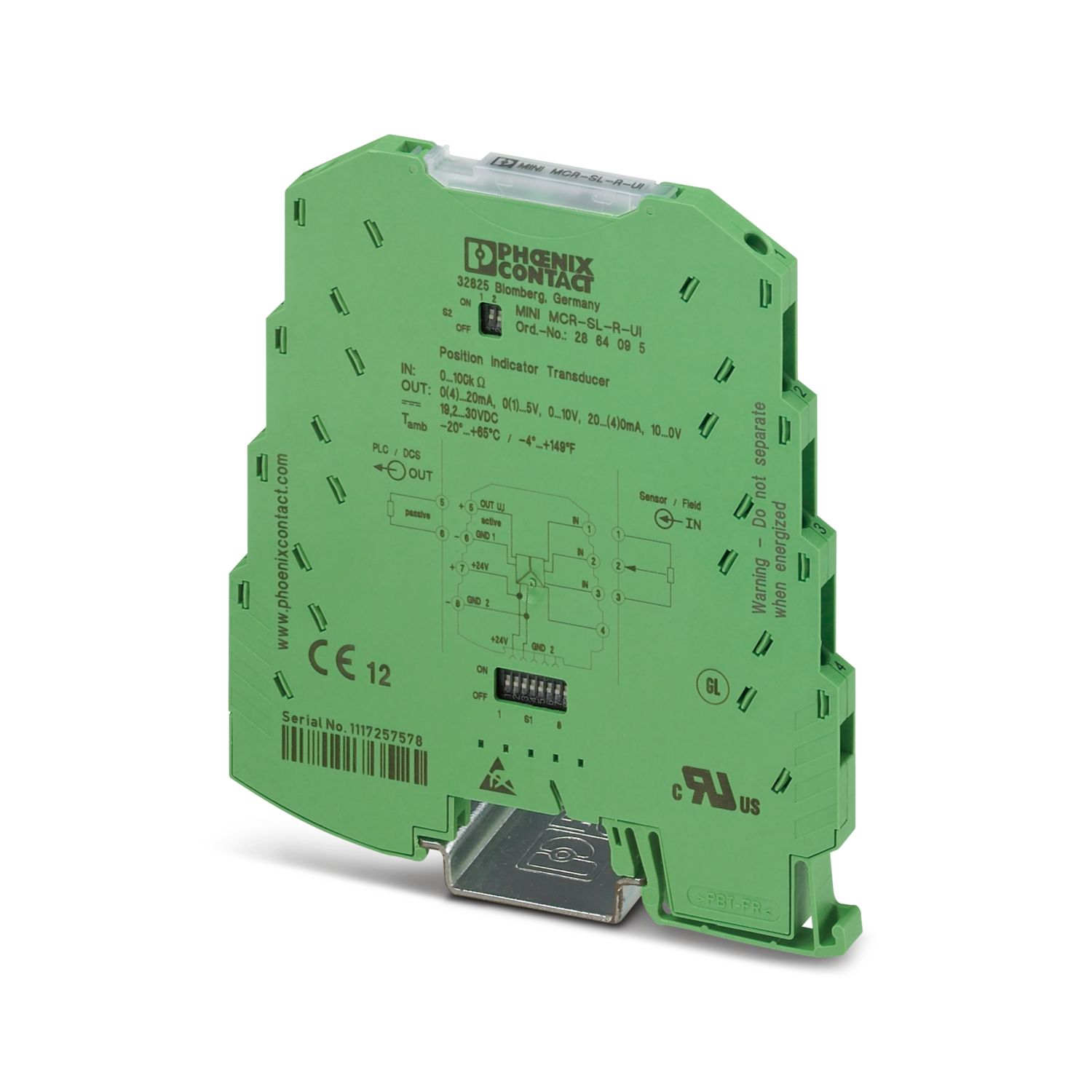

MINI MCR-SL-R-UI - Resistance/potiposition transducer 2864095
