AI 25 -16 BN
-
Ferrule
3201084
Electrical number:
156438309
Electrical number:
156438309

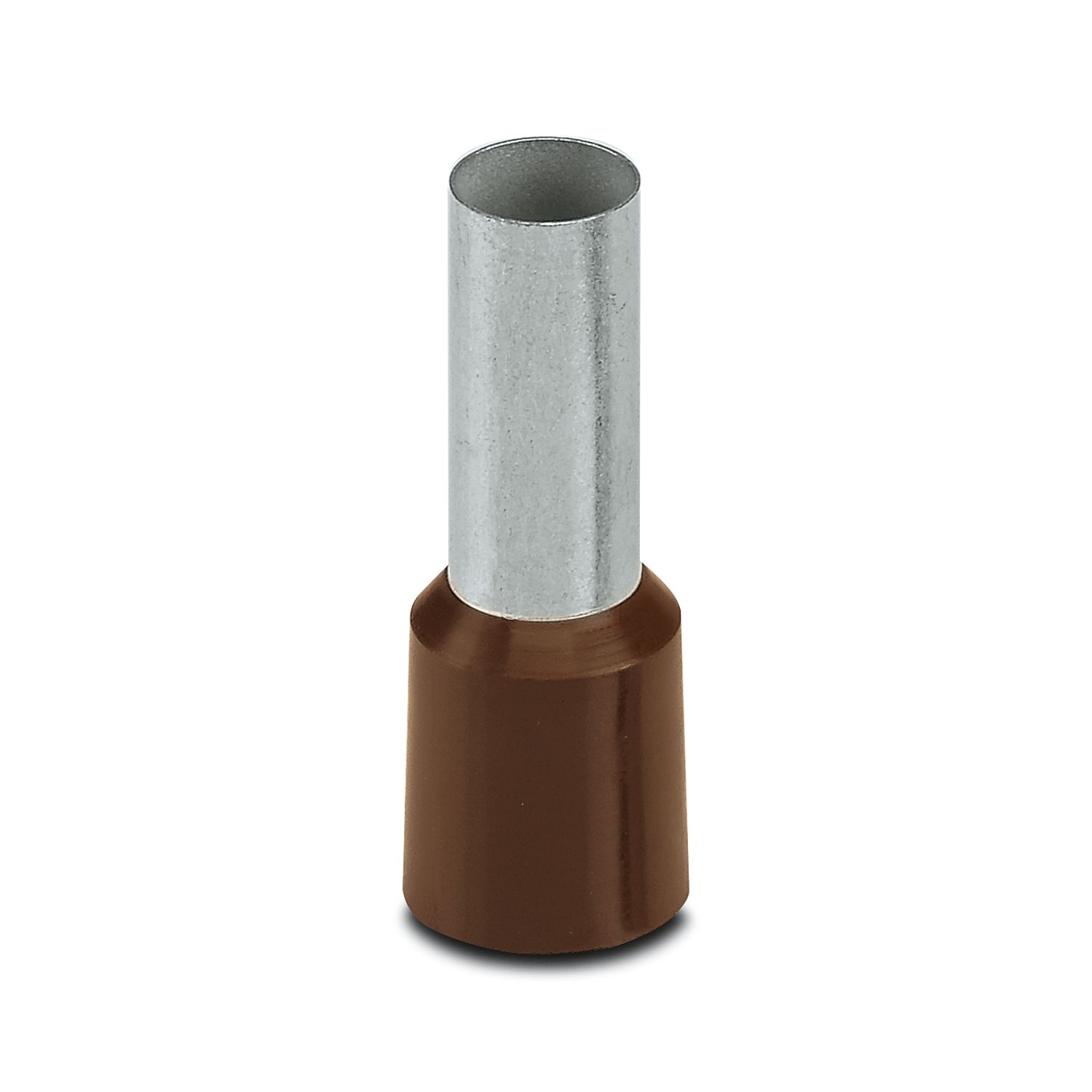

Ferrule, Length contact range: 16 mm, sleeve length: 30 mm, color: brown
Product details
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | UL certified |
| Made from soft tin-plated electrolytic copper | |
| Correspond to the requirements of DIN 46228-1 and UL 486F in terms of size | |
| Plastic collar made of polypropylene | |
| Halogen-free | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section AWG max. | 4 |
| Stripping length | 20 mm |
| Dimensional drawing |
|
| Sleeve length | 30 mm |
| Length contact range | 16 mm |
| Maximum stripping length | 20 mm |
| Ferrule diameter | 7.3 mm |
| Sleeve wall thickness | 0.2 mm |
| Insulating collar thickness | 0.5 mm |
| Inner dimensions of the insulating collar | 11 mm |
| Color | brown (RAL 8028) |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| Technical data | |
| Sleeve length | 30 mm |
| Ambient conditions | |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
| Design according to standard | UL 486F-E, Sonderfarbe |
Your advantages
The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
In terms of dimensions, they correspond to DIN 46228‑4: 1990‑09
