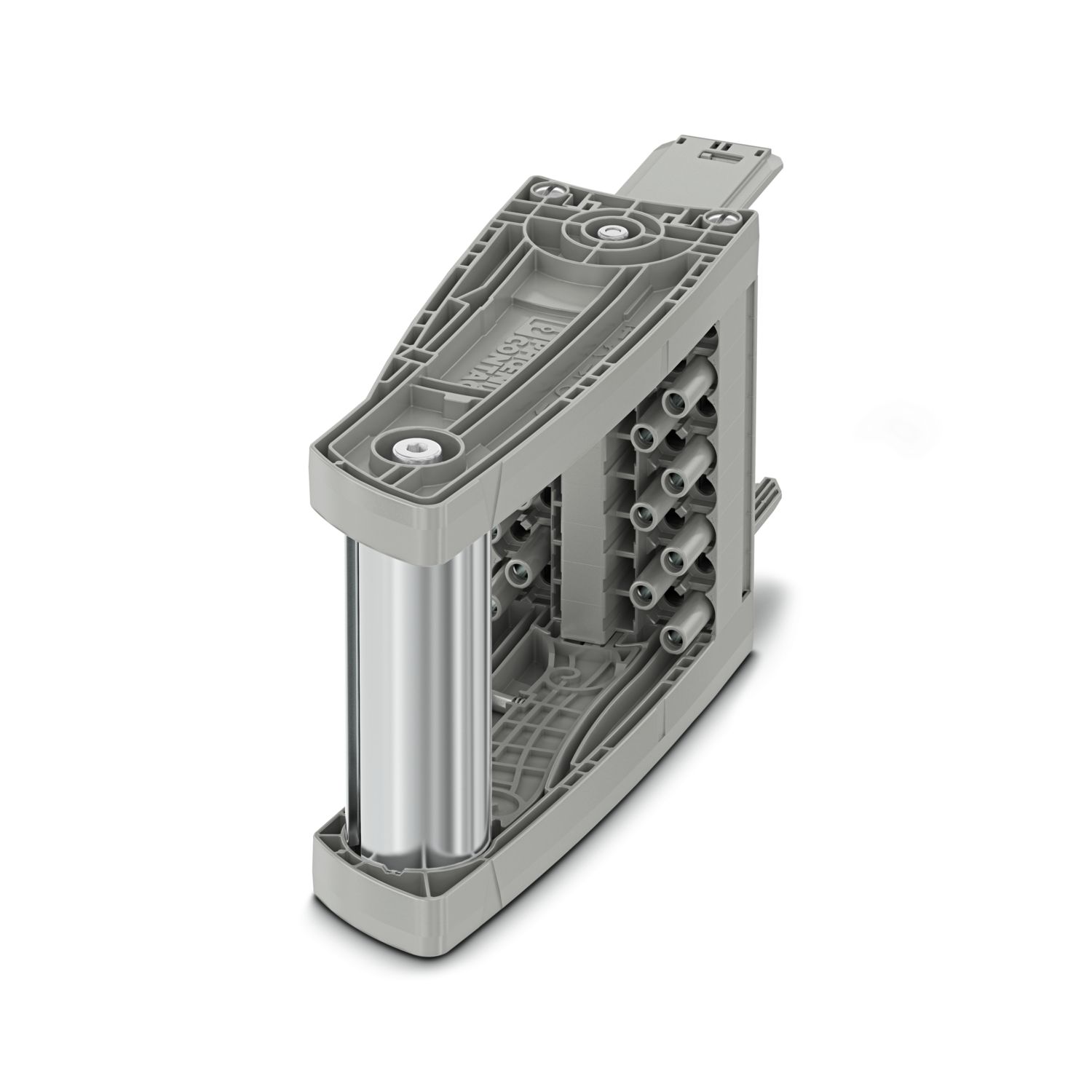

Test terminal strip, nom. voltage: 400 V, nominal current: 24 A, number of positions: 8, connection method: Ring cable lug, Rated cross section: 6 mm2, 1 level, mounting type: Panel mounting, color: gray
Product details
Product type
Test terminal strip
Number of positions
8
Insulation characteristics
Overvoltage category
III
Rated surge voltage
4 kV
Maximum power dissipation for nominal condition
1.02 W
Test surge voltage
5 kV
Nominal cross section
4 mm²
1 level
Tightening torque
1 ... 1.3 Nm
Internal cylindrical gage
A5
Connection in acc. with standard
IEC 60947-7-1
Conductor cross section flexible
0.5 mm² ... 6 mm²
Conductor cross section, flexible [AWG]
24 ... 10 (converted acc. to IEC)
Nominal current
24 A
Maximum load current
24 A
Nominal voltage
400 V
Nominal cross section
6 mm²
Cable lug connection DIN 46237:1970-07
Connection in acc. with standard
DIN 46237:1970-07
Cross section
0.5 mm² ... 2.5 mm²
Cross section range AWG
(converted acc. to IEC)
Hole diameter
3.7 mm
Width
6.8 mm
Bolt diameter
3.5 mm
Identification color of ring cable lugs : red
1 mm²
Identification color of ring cable lugs : blue
2.5 mm²
Cross section
4 mm² ... 6 mm²
Additional text
Type RS PRO Order No. 267-3919, vertical crimping
Cross section range AWG
(converted acc. to IEC)
Hole diameter
3.7 mm
Width
7.2 mm
Bolt diameter
3.5 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PC
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Surge voltage test
Result
Test passed
Temperature-rise test
Requirement temperature-rise test
Increase in temperature ≤ 45 K
Result
Test passed
Short-time withstand current 4 mm²
0.5 kA
0.3 kA
0.15 kA
1.25 kA
Result
Test passed
Power-frequency withstand voltage
Test voltage setpoint
2 kV
Result
Test passed
Mechanical data
Open side panel
No
Mechanical strength
Result
Test passed
Attachment on the carrier
Result
Test passed
Test for conductor damage and slackening
Rotation speed
10 rpm
Revolutions
135
Conductor cross section/weight
2.5 mm² / 0.7 kg
2.0 mm² / 0.7 kg
Result
Test passed
Aging
Temperature cycles
192
Result
Test passed
Needle-flame test
Time of exposure
30 s
Result
Test passed
Ambient conditions
Ambient temperature (storage/transport)
-25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (storage/transport)
30 % ... 70 %
Connection in acc. with standard
IEC 60947-7-1
Mounting type
Panel mounting
Item number
1029246
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
BE6114
Product key
BE6114
Catalog page
Page 650 (C-1-2019)
GTIN
4055626531021
Weight per piece (including packing)
22.22 g
Weight per piece (excluding packing)
22.22 g
Customs tariff number
85366990
Country of origin
PL
ECLASS
ECLASS-13.0
27250190
ETIM
ETIM 8.0
EC000902
UNSPSC
UNSPSC 21.0
39121400
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)
Lead(CAS: 7439-92-1)
