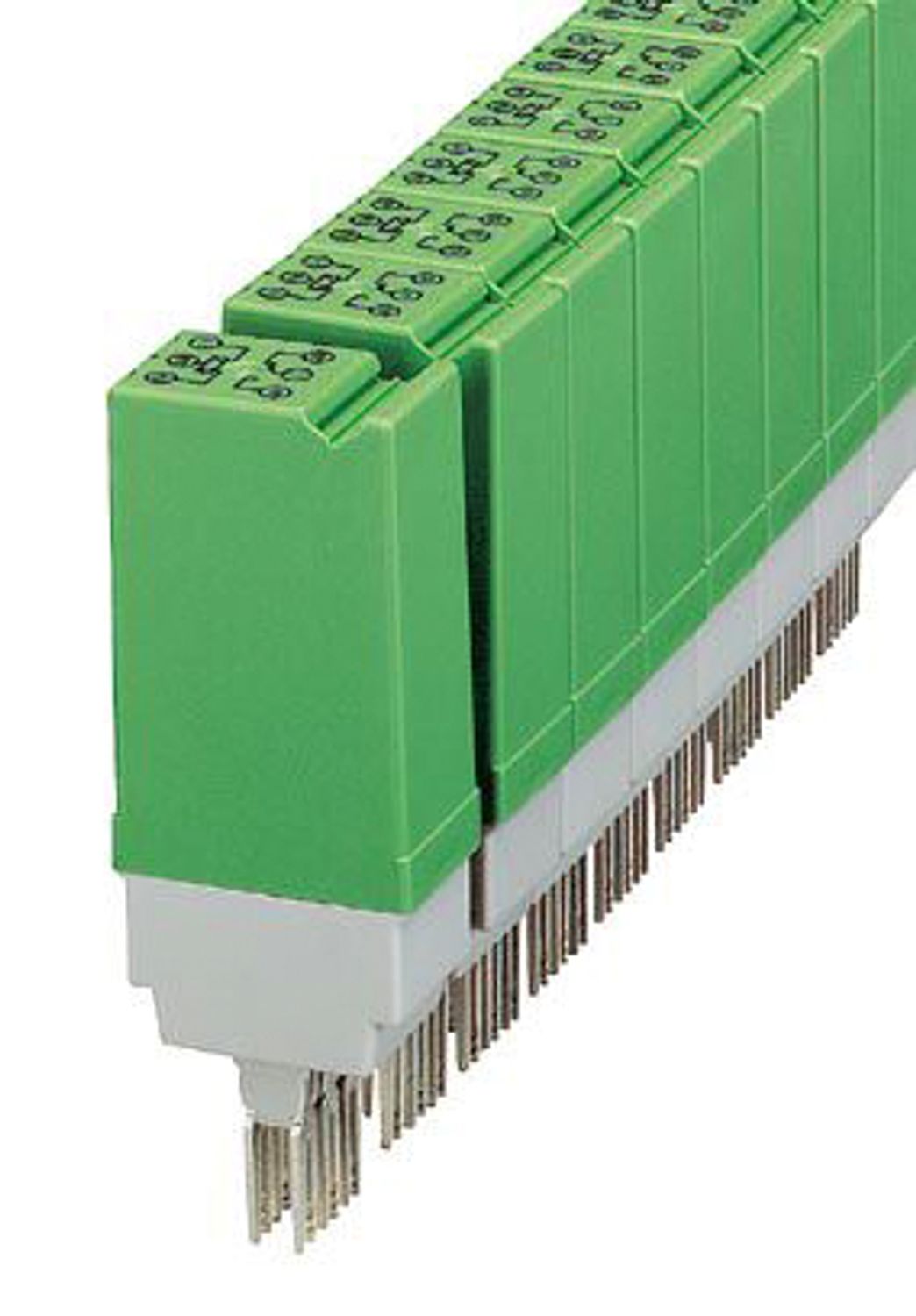

ST-REL3-SG-B 60/21/P - Relay connectors - 2824064

Notes

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product properties

Product type	Relay Module
Operating mode	100% operating factor
Mechanical service life	approx. 10⁷ cycles
Insulation characteristics
Overvoltage category	II
Pollution degree	2
Insulation characteristics: Air clearances and creepage distances between the power circuits
Insulation	Basic insulation
Data management status
Date of last data management	19.03.2025

Electrical properties

Maximum power dissipation for nominal condition	0.54 W
Test voltage (Winding/contact)	2 kV_rms (50 Hz, 1 min., winding/contact)
Rated insulation voltage	250 V AC
Rated surge voltage	2.5 kV

Input data

Coil side
Nominal input voltage U_N	60 V DC
Input voltage range	48 V DC ... 66 V DC
Input voltage range in reference to U_N	0.8 ... 1.1

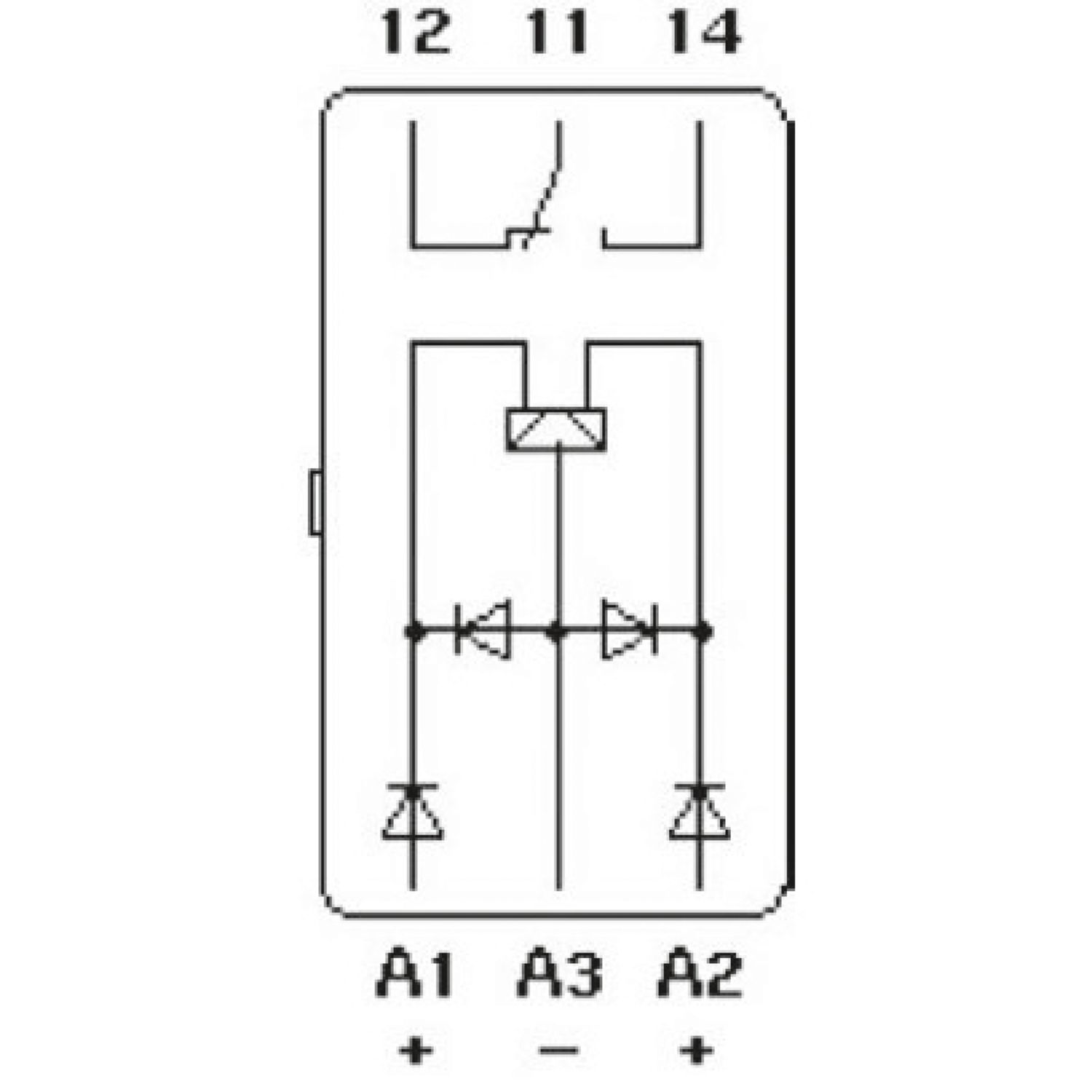

Drive and function	bistable
Typical input current at U_N	typ. 9 mA
Typical response time	5 ms
Typical release time	5 ms
Pulse time range	30 ms ... 5 s
Coil voltage	24 V DC
Protective circuit	Freewheeling diode; Freewheeling diode
	Reverse polarity protection; Polarity protection diode

Output data

Switching
Contact switching type	Single contact, 1 changeover contact
Type of switch contact	Single contact
Contact material	AgSnO
Maximum switching voltage	250 V AC/DC
Minimum switching voltage	5 V (At 5 V)
Minimum switching voltage		24 V (at 24 V)
Limiting continuous current	6 A
Maximum inrush current	8 A
Min. switching current	1 mA (at 24 V)
Min. switching current		100 mA (At 5 V)
Interrupting rating (ohmic load) max.	144 W (at 24 V DC)
		43 W (at 48 V DC)
		42 W (at 60 V DC)
		55 W (at 110 V DC)
		100 W (at 220 V DC)
		1500 VA (for 250 V AC)
Switching: when the gold layer is destroyed
Maximum switching voltage	250 V AC/DC
Limiting continuous current	6 A
Maximum inrush current	8 A
Interrupting rating (ohmic load) max.	120 W (at 24 V DC)
		40 W (at 48 V DC)
		35 W (at 60 V DC)
		30 W (at 110 V DC)
		55 W (at 220 V DC)
		1500 VA (for 250 V AC)

Dimensions

Material specifications

Color	green (RAL 6021)

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-40 °C ... 50 °C
Ambient temperature (storage/transport)	-40 °C ... 70 °C

Standards and regulations

Standards/regulations	IEC 60664
	IEC 60664A
	DIN VDE 0110
	DIN VDE 0109-11, draft
	DIN EN 50178/VDE 0160 (in relevant parts)
Air clearances and creepage distances between the power circuits
Standards/regulations	DIN EN 50178

Mounting

Item number	2824064
Packing unit	10 pc
Minimum order quantity	10 pc
Note	Made to order (non-returnable)
Sales key	DK6122
Product key	DK6122
Catalog page	Page 88 (IF-2005)
GTIN	4017918139346
Weight per piece (including packing)	34.245 g
Weight per piece (excluding packing)	34.245 g
Customs tariff number	85364190
Country of origin	DE

China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
