CTM 10-MAG
-
Magazine
2838610
Magazine with a grounding rail to accommodate up to 10 LSA-PLUS protective plugs (COMTRAB CTM), to insert in CT-TERMIBLOCK or LSA-PLUS disconnect strip
Product details
| Product type | Magazine |
| Product family | COMTRAB |
| Type | LSA-PLUS module |
| Surge protection fault message | none |
| Connection method | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |

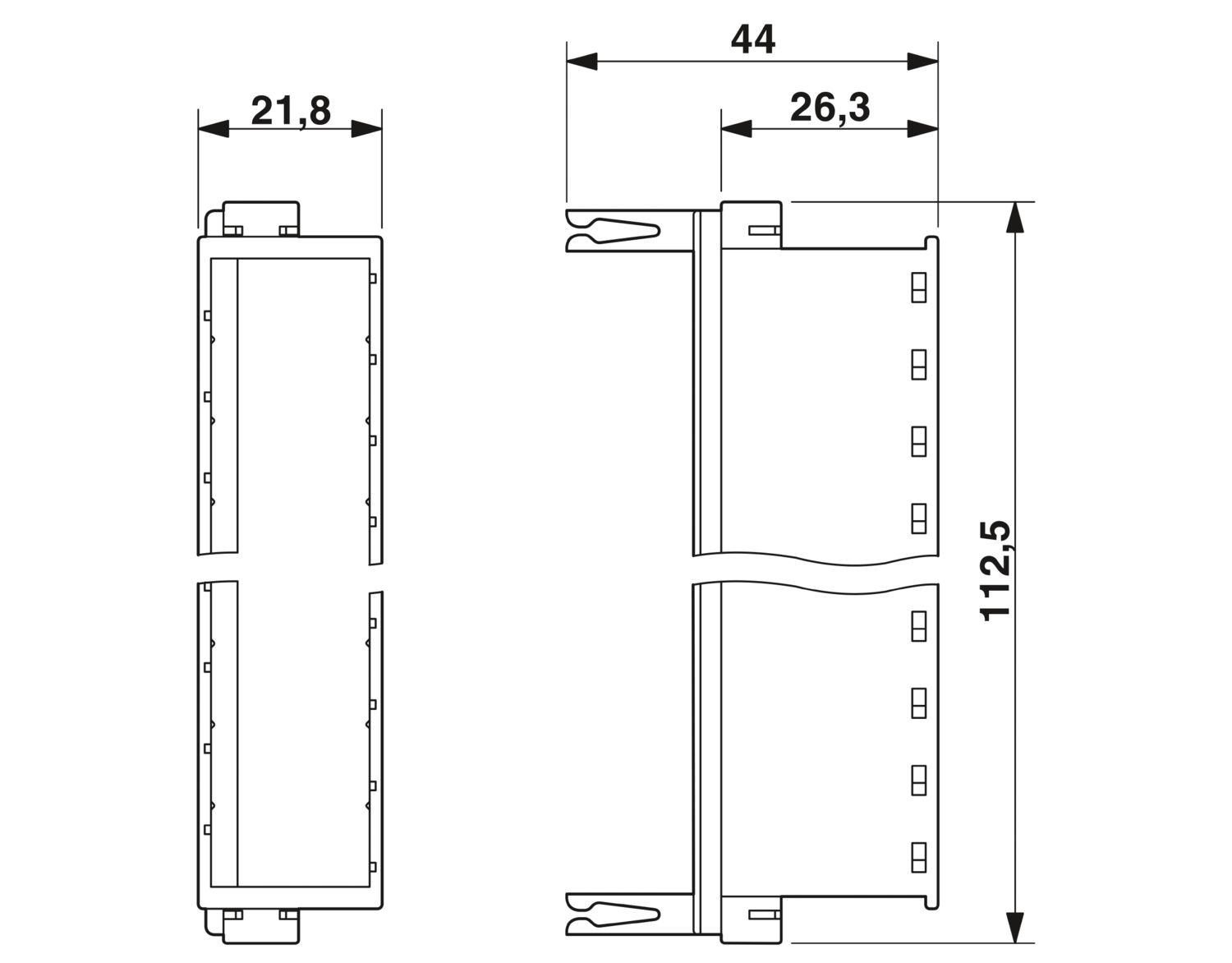

| Dimensional drawing |
|
| Width | 112.5 mm |
| Height | 21.8 mm |
| Depth | 44 mm |
| Color | black (RAL 9005) |
| copper color | |
| Flammability rating according to UL 94 | V-0 |
| Housing material | PA |
| Mechanical data | |
| Open side panel | No |
| Surge protection fault message | none |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 75 °C |
| Mounting type | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
Your advantages
Space-saving due to compact design
Flexible fields of application with modular protective plug
Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
