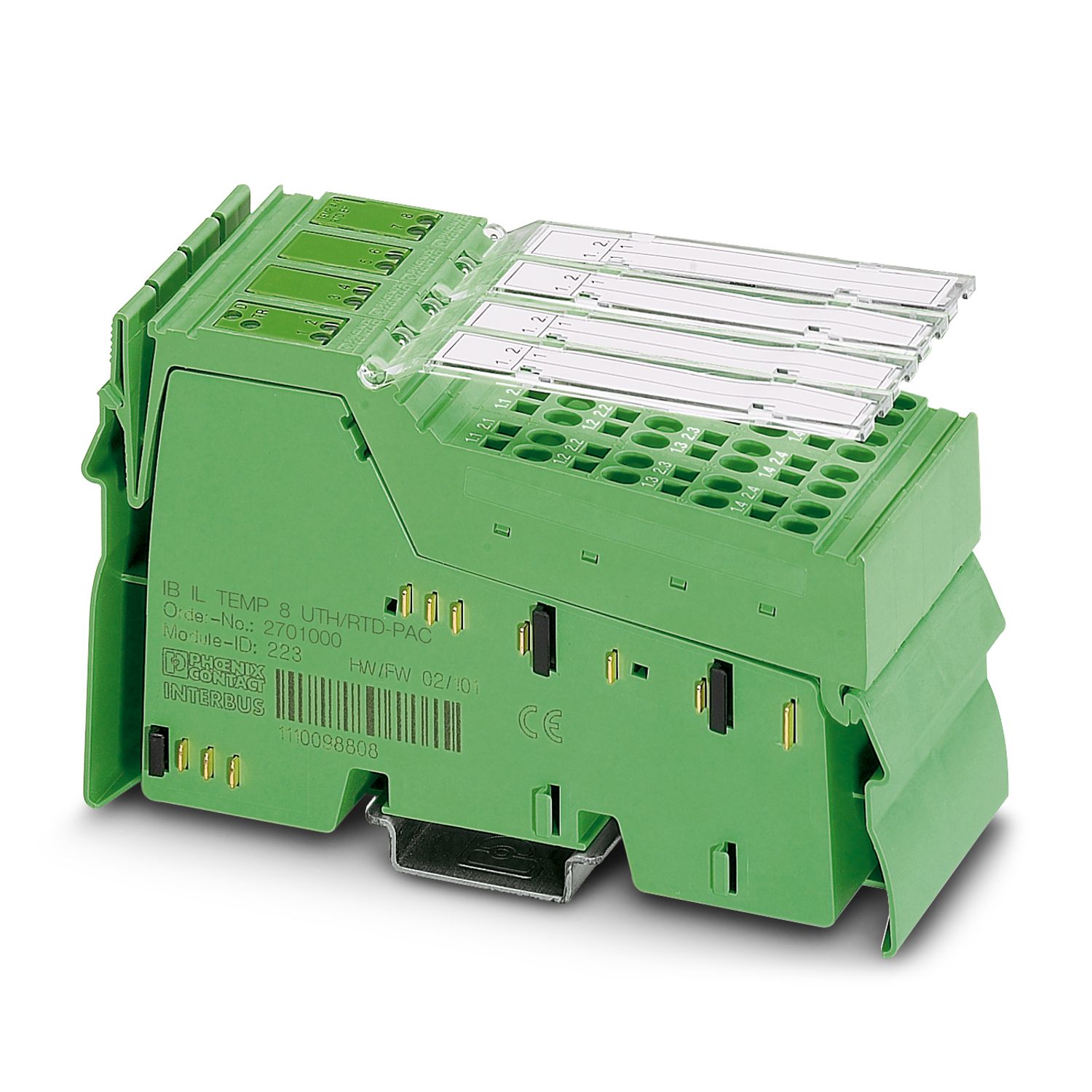

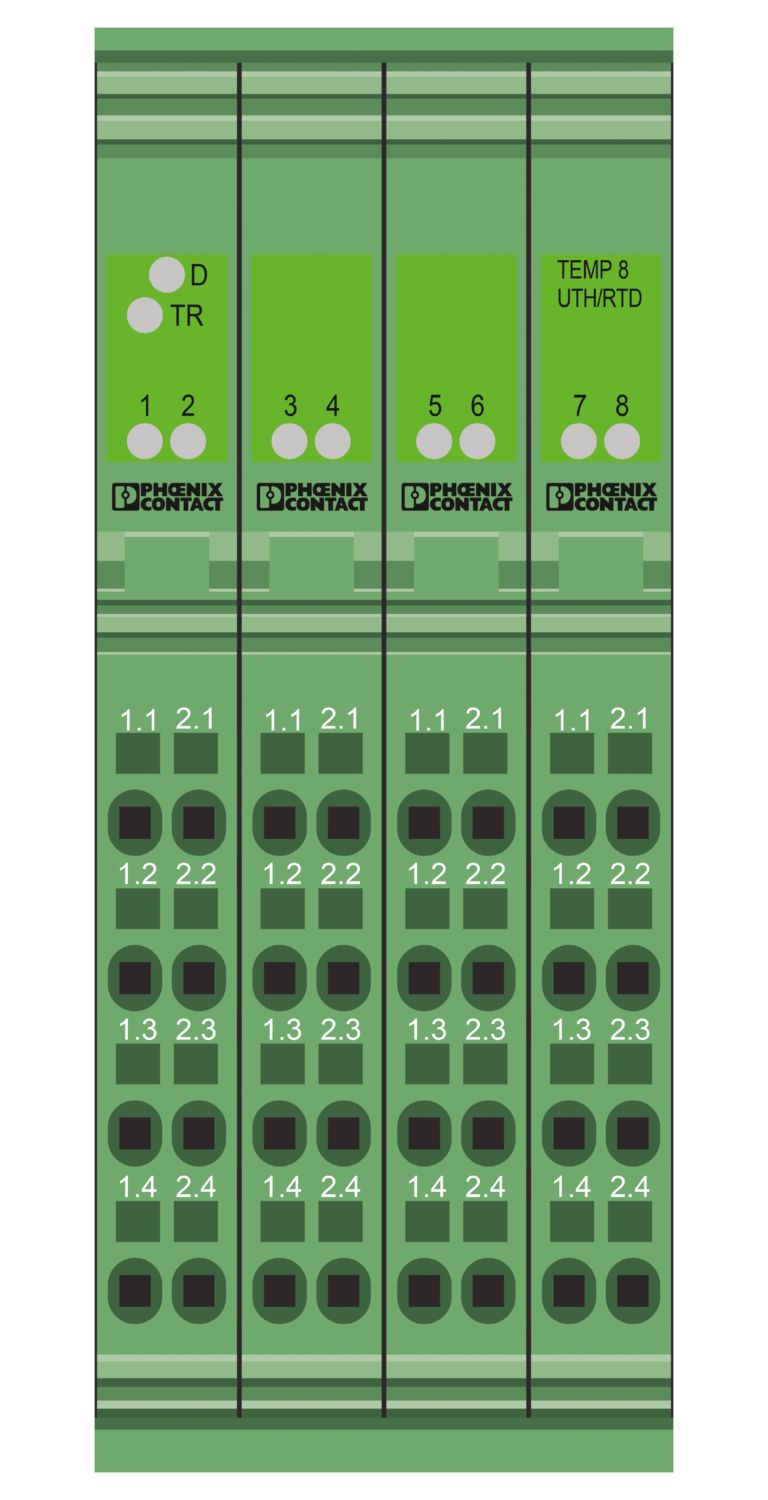

IB IL TEMP 8 UTH/RTD-PAC - Temperature module

2701000

Inline analog input terminal, complete with accessories (connector and marking field), 8 channels, TC (thermocouple), RTD (resistance temperature detector), 2 and 3-conductor connection technology

Free download available. Downloads

Dimensional drawing
Width	48.8 mm
Height	119.8 mm
Depth	71.5 mm

Note on application
Note on application	Only for industrial use

Inline local bus
Connection method	Inline data jumper
Transmission speed	500 kbps
Transmission physics	Copper

Module
ID code (dec.)	220
ID code (hex)	DC
Length code (hex)	0A
Length code (dec)	10
Process data channel	160 bit
Input address area	20 Byte
Output address area	20 Byte
Register length	192 bit
Required parameter data	25 Byte
Required configuration data	5 Byte

Analog
Input name	Analog RTD inputs
Description of the input	Temperature sensor inputs
Number of inputs	8
Connection method	Spring-cage connection
Connection technology	2-, 3-conductor
A/D converter resolution	16 bit
Sensor types (RTD) that can be used	Pt, Ni sensors, linear resistors
Sensor types that can be used (TC)	B, C, E, J, K, L, N, R, S, T, U, mV input
Data formats	IB IL, S7-compatible
Measuring principle	Successive approximation
Measured value representation	16 bits (15 bits + sign bit)
Process data update	20 ms (with filter time of 20 ms or 100 ms)
	100 ms (with filter time of 400 ms or 1600 ms)

Product type	I/O component
Product family	Inline
Type	modular
Scope of delivery	including Inline connectors and marking fields
Operating mode	Process data mode with 10 words, PCP with 2 words
Insulation characteristics
Overvoltage category	II (IEC 60664-1, EN 60664-1)
Pollution degree	2 (IEC 60664-1, EN 60664-1)

Maximum power dissipation for nominal condition	1.46 W
Potentials: Communications power (U_L)
Supply voltage	7.5 V DC (via voltage jumper)
Current draw	max. 100 mA
	typ. 90 mA
Potentials: Supply of analog modules (U_ANA)
Supply voltage	24 V DC (via voltage jumper)
Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw	typ. 24 mA
Electrical isolation/isolation of the voltage ranges
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics)	500 V AC, 50 Hz, 1 min
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics)	500 V AC, 50 Hz, 1 min
Test voltage: 7.5 V supply (bus logic), 24 V supply U_ANA / I/O	500 V AC, 50 Hz, 1 min

Connection technology
Connection name	Inline connector
Conductor connection
Connection method	Spring-cage connection
Conductor cross section rigid	0.08 mm² ... 1.5 mm²
Conductor cross section flexible	0.08 mm² ... 1.5 mm²
Conductor cross section AWG	28 ... 16
Stripping length	8 mm
Inline connector
Connection method	Spring-cage connection
Conductor cross section, rigid	0.08 mm² ... 1.5 mm²
Conductor cross section, flexible	0.08 mm² ... 1.5 mm²
Conductor cross section AWG	28 ... 16
Stripping length	8 mm

Ambient conditions
Ambient temperature (operation)	-25 °C ... 60 °C
Degree of protection	IP20
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 95 % (non-condensing)

Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Mounting type	DIN rail mounting

Item number	2701000
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DRI143
Product key	DRI143
Catalog page	Page 140 (C-6-2019)
GTIN	4046356673594
Weight per piece (including packing)	234 g
Weight per piece (excluding packing)	234 g
Customs tariff number	85389099
Country of origin	DE

Compatible products

Accessories

Your advantages

8 temperature sensor inputs

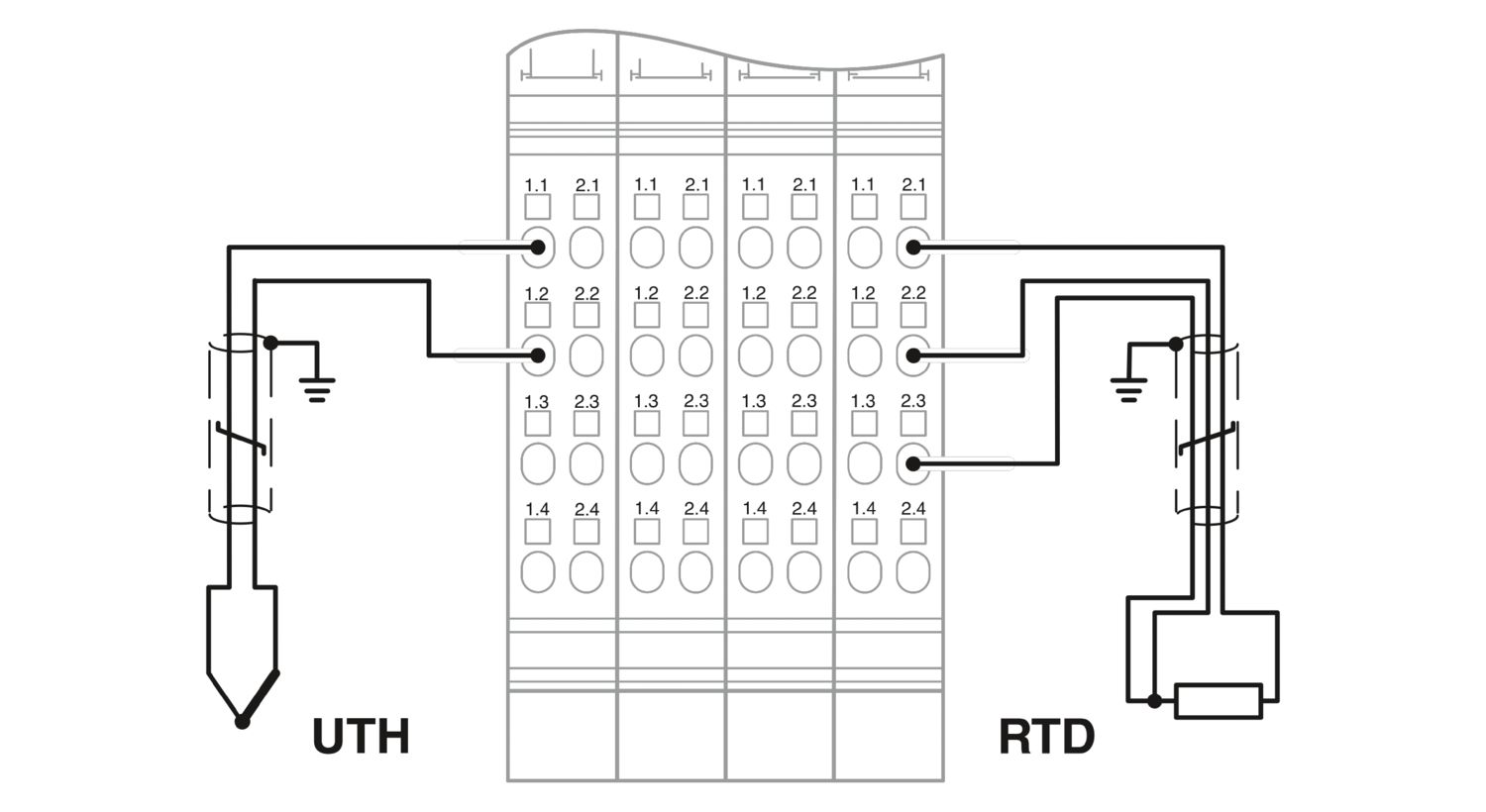

3-conductor connection for resistance temperature detectors (Pt 100, Ni 100, Pt 1000, Ni 1000, and others)

2-conductor connection for thermocouples

Internal and external detection and compensation of cold junction temperature (configurable)

Individual current input, 1 A for total current transformer for heating current monitoring

Scan time: 20 ms (for all channels)

Maximum 50 Hz/60 Hz suppression

High precision and noise immunity

Temperature stability

High-resolution temperature, voltage, and resistance measurement

Resistance values (R0) can be preset separately by means of parameterization

Channels are parameterized independently of one another

Diagnostic and status indicators

Channel scout functionality, for optical channel identification during startup

ECLASS-11.0	27242601
ECLASS-12.0	27242601
ECLASS-13.0	27242601

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	02e13784-2e73-49e9-ab3e-c33b82c76127
