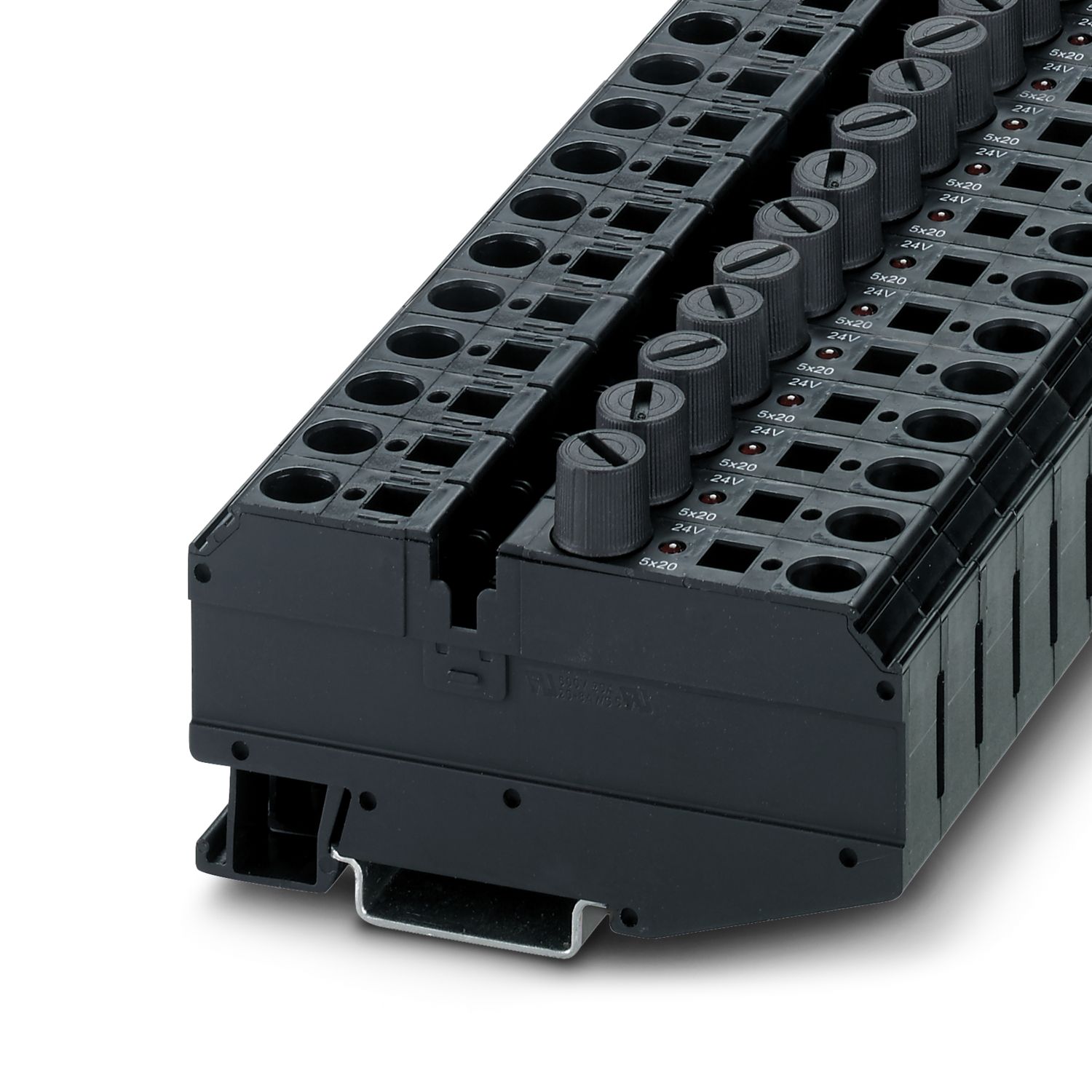

Spring-cage terminal block-fuse terminal block for cartridge fuse inserts with screw cap, cross section: 0.5 - 6 mm2, width: 12 mm, color: black
Product details
Product type
Fuse terminal block
Number of connections
2
Number of rows
1
Potentials
1
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Fuse type
Glass / ceramics / ...
Rated surge voltage
6 kV
Fuse
G / 5 x 20
Number of connections per level
2
Nominal cross section
6 mm²
1 level
Stripping length
12 mm
Connection in acc. with standard
IEC 60947-7-3
Conductor cross section rigid
0.5 mm² ... 10 mm²
Cross section AWG
20 ... 8 (converted acc. to IEC)
Conductor cross section flexible
0.5 mm² ... 6 mm²
Conductor cross section, flexible [AWG]
20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.5 mm² ... 6 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 1.5 mm²
Nominal current
10 A (if used as disconnect terminal block. With fuse, the current is determined by the fuse used.)
Maximum load current
10 A (if used as disconnect terminal block. With fuse, the current is determined by the fuse used.)
Nominal voltage
800 V (if used as disconnect terminal block. With fuse, the voltage is determined by the light indicator used.)
Nominal cross section
1.5 mm²
Width
12 mm
Color
black
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Static insulating material application in cold
-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))
130 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)
28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Mechanical data
Open side panel
No
Connection in acc. with standard
IEC 60947-7-3
Mounting type
NS 35/7,5
NS 35/15
Item number
3025600
Packing unit
25 pc
Minimum order quantity
25 pc
Sales key
BE2135
Product key
BE2135
GTIN
4017918154707
Weight per piece (including packing)
36.576 g
Weight per piece (excluding packing)
36.576 g
Customs tariff number
85369095
Country of origin
PL
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)
Lead(CAS: 7439-92-1)
