KGG-MC 1,5/ 5
-
Cable housing
1834372
Cable housing, product range: KGG-MC 1,5, width: 14.5 mm
Product details
| Product type | Cable housing |
| Product family | KGG-MC 1,5 |
| Number of positions | 5 |
| Pitch | 3.81 mm |
| Flammability rating according to UL 94 | HB |
| Insulating material | ABS |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | HB |

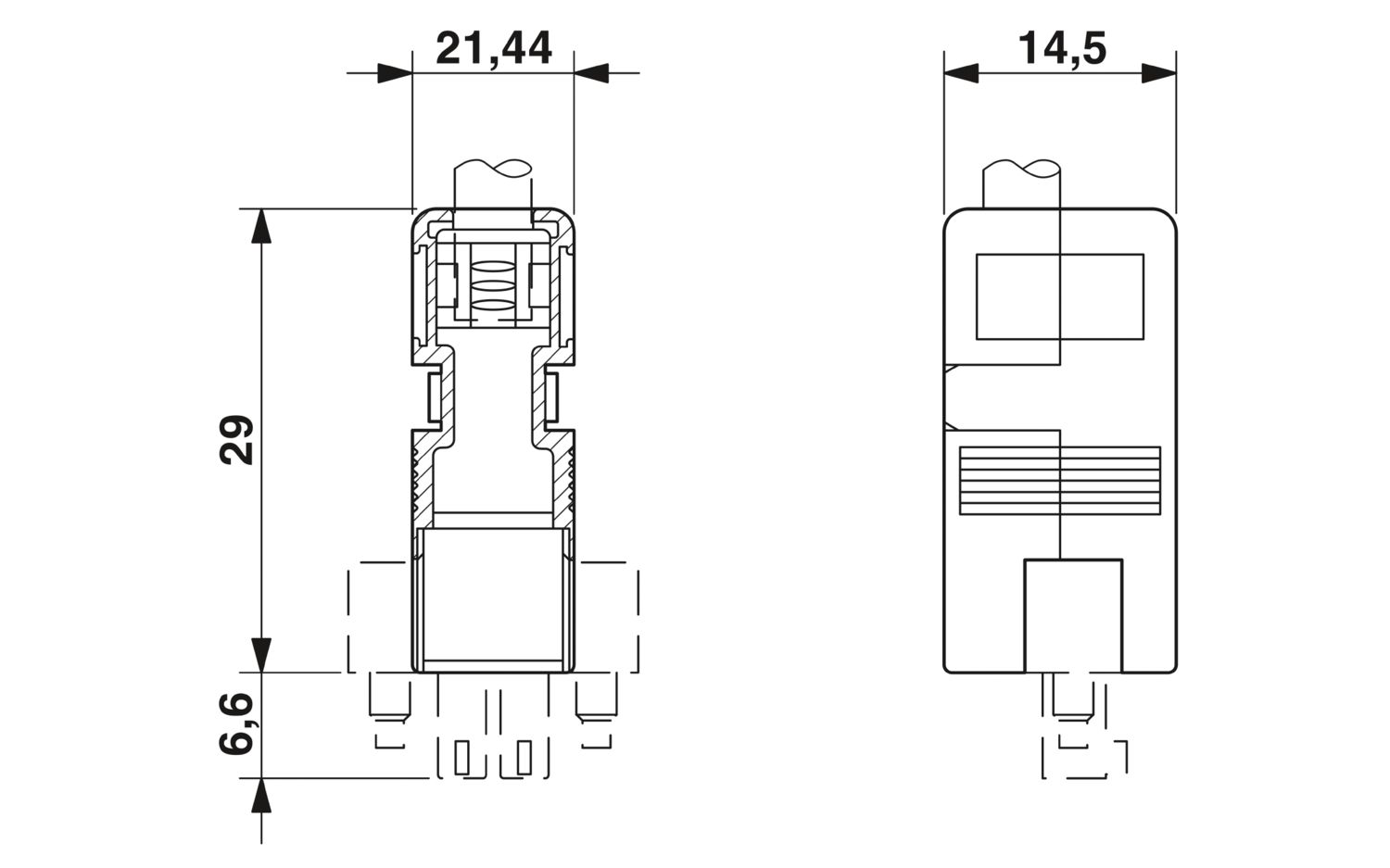

| Dimensional drawing |
|
| Width | 14.5 mm |
| Height | 35.6 mm |
| Pitch | 3.81 mm |
